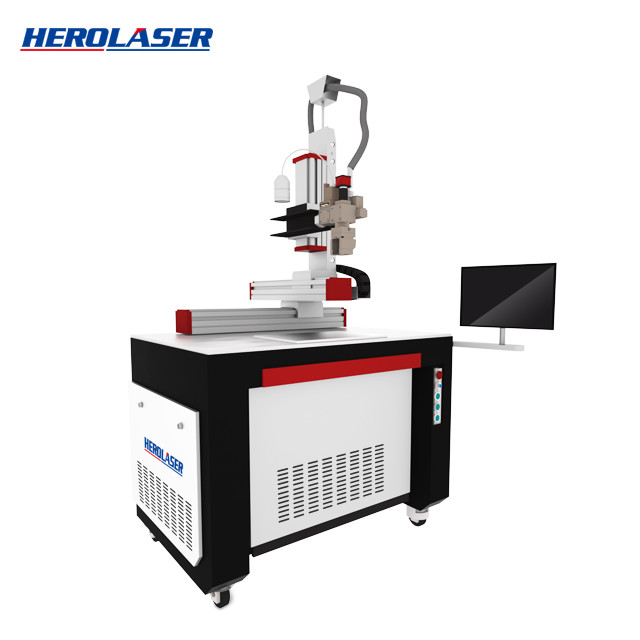

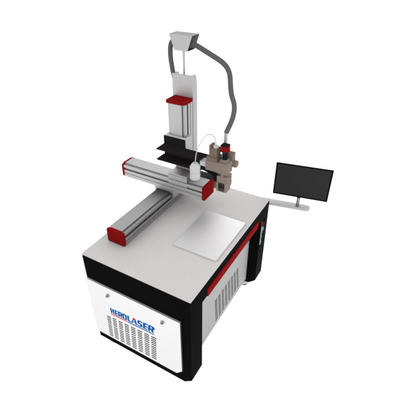

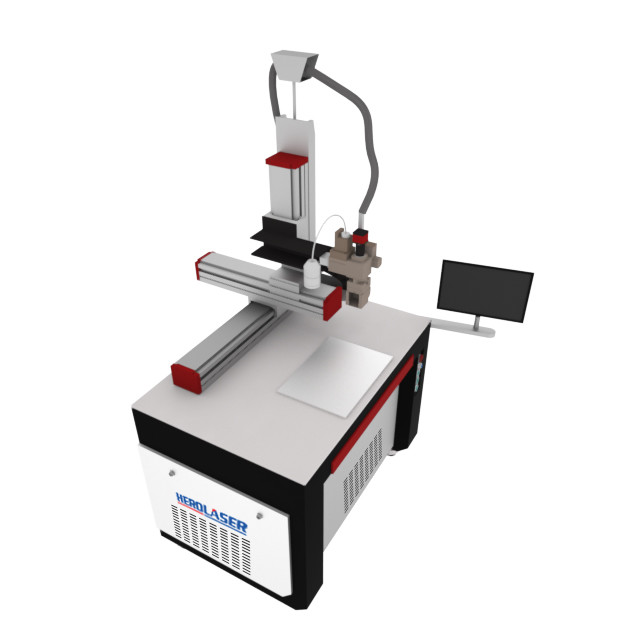

Metal Aluminum SS Automatic Laser Welding Machine With Platform

  • Metal Aluminum SS Automatic Laser Welding Machine With Platform
  • Metal Aluminum SS Automatic Laser Welding Machine With Platform
  • Metal Aluminum SS Automatic Laser Welding Machine With Platform
  • Metal Aluminum SS Automatic Laser Welding Machine With Platform
  • Metal Aluminum SS Automatic Laser Welding Machine With Platform
  • Metal Aluminum SS Automatic Laser Welding Machine With Platform
  • Metal Aluminum SS Automatic Laser Welding Machine With Platform
Place of Origin China
Brand Name Herolaser
Certification ISO9001, FDA
Model Number ML-PW-2000
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Wooden case
Delivery Time 30-45 days
Payment Terms L/C, T/T
Supply Ability 20 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Dimensions 1500mm×1400mm×1900mm Machine Weight 280kg
Laser Power 3000W Average Load Power 7.5KW
Welding Depth 3mm Focal Spot Diameter 0.15mm-0.45 Mm
High Light

3000W Automatic Laser Welding Machine

,

0.15mm Automatic Laser Welding Machine

,

CCD Visual Observing Laser Welding Machine
Leave a Message
Product Description



Parameter
Main technical parameters of the equipment
Product Specifications
S/N
Main component name
Parameter
Remark
1
X axis effective stroke
500mm

2
Y axis effective stroke
300mm

3
Z axis effective stroke
300mm

4
Dimensions
1500×1400×1900mm

5
Machine weight
280kg

6
Module operating speed
Y axis:10m/min
X axis:10m/min
Z axis:5m/min

7
repeated positioning accuracy
±0.02mm

8
Rotating table
Circle runout accuracy ≤0.05mm

9
electricity demand
220V/380V

10
Average load power
7.5KW

Equipment configuration list
Configuration Parameter
S/N
Name
Specifications & Models
QTY
Brand
Remark
1
Fixture mounting plate
350mm×450mm
1
Hero Laser Custom

2
Laser
According to sample welding requirements
1
MAX or IPG

3
Motor
servo motor
3
Huichuan

4
Computer
PC/Industrial Computer
1
Advantech

5
Chiller
According to laser power
1
S & A

6
Welding head
According to sample welding requirements
1
Hero Laser

7
CCD Visual observation system
camera
light source
1
Microsan
Basler/LeTV Light Source

8
Z axis module
300mm stroke
1
Hero Laser Custom
X, Y axis screw lead 10mm, Z axis screw lead 5mm; screw accuracy: C7
9
X axis module
500mm stroke
1
Hero Laser Custom
10
Y axis module
300mm stroke
1
Hero Laser Custom
11
Rotating table
Three-jaw rotary chuck
1
Hero Laser Custom

12
Lower cabinet
Sheet metal welding, paint baking
1
Hero Laser Custom




Metal Aluminum SS Automatic Laser Welding Machine With Platform 0

Products Description

Laser welding uses high-energy laser pulses to locally heat the material in a small area.



The energy of laser radiation diffuses into the material through heat conduction, and the material melts to form a specific



molten pool. It is a new type of welding method, mainly used for welding thin-walled materials and precision parts. It can



realize spot welding, butt welding, surfacing welding, sealing welding, etc.



The welding speed is fast, no treatment is required after welding, and the welding quality is high. , Can be precisely controlled,



small focus, high positioning accuracy, easy to automate




Metal Aluminum SS Automatic Laser Welding Machine With Platform 1
Laser welding machines use high-energy pulsed lasers to weld objects


Herolaser automatic laser welding machine can realize the welding of metal work pieces in straight lines, circles and other arbitrary trajectories, such as phone housing, mobile phone batteries, sensors, medical equipment and other industries.



After the laser beam is focused, the point can be accurately positioned and used for group welding of small and



micro workpieces to achieve mass production.



Metal Aluminum SS Automatic Laser Welding Machine With Platform 2

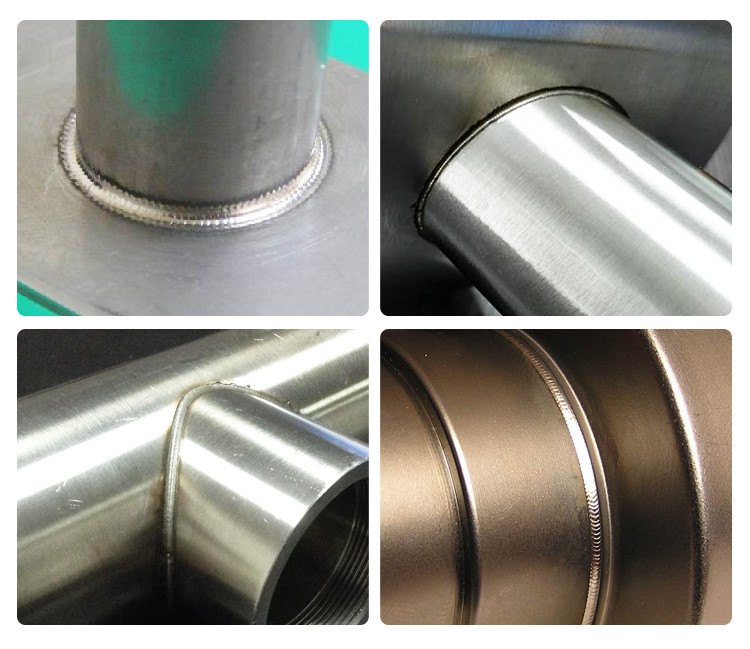

Sample Show
Metal Aluminum SS Automatic Laser Welding Machine With Platform 3

Swing welding head



The process that traditional magnetic head cannot complete, the swing welding head only



needs to use 70% of the power, which can save the cost of the laser;



In addition, the swing welding method is adopted, the width of the welding joint is adjustable,



and the welding fault tolerance is strong, which makes up for the small shortcomings of the



laser welding joint. The tolerance range and welding width of the processed parts are



enlarged, and a good welding forming effect is obtained.



Applicable Industry



Metal Aluminum SS Automatic Laser Welding Machine With Platform 4 Metal Aluminum SS Automatic Laser Welding Machine With Platform 5  Metal Aluminum SS Automatic Laser Welding Machine With Platform 6

Metal Aluminum SS Automatic Laser Welding Machine With Platform 7

  precision machinery


Metal Aluminum SS Automatic Laser Welding Machine With Platform 8

  communications


Metal Aluminum SS Automatic Laser Welding Machine With Platform 9

  handicrafts


Installation Instructions
Metal Aluminum SS Automatic Laser Welding Machine With Platform 10

ABOUT HEROLASER
Shenzhen Herolaser Equipment Co., Ltd was established in 2004, is a national high-tech enterprise in China, engaged in the research and development, production and marketing of laser equipment group of companies, has formed a complete series of industrial laser equipment supply platform.

With a team of professional technical personnel,rich management experience, clear development direction to ensure our rapid growth in the rapid development of the laser industry,we have established branches in Jiangsu, Zhejiang,Shandong, Chongqing and other regions in China, and we have exported to 60 countries and have overseas agents in 10 countries. Our main products is Laser Cleaning Machine / Laser Marking Machine / Laser Welding Machine / Laser Cutting Machine.

Products are widely used in electrical appliances, mobile communications, hardware products, tool accessories, precision equipment, jewelry, glasses and watches, integrated circuits, craft gifts, plastic molds, medical equipment and other industries.
Certification
Metal Aluminum SS Automatic Laser Welding Machine With Platform 11
Packaging & Shipment
Metal Aluminum SS Automatic Laser Welding Machine With Platform 12
Metal Aluminum SS Automatic Laser Welding Machine With Platform 13
Metal Aluminum SS Automatic Laser Welding Machine With Platform 14
Metal Aluminum SS Automatic Laser Welding Machine With Platform 15
Metal Aluminum SS Automatic Laser Welding Machine With Platform 16
Metal Aluminum SS Automatic Laser Welding Machine With Platform 17
Our Services

---Pre-Sales Services


① Free pre-sales 7*24 hours rapid response services / cousulting
② Free sample testing / inspection
③ Free design of fixtures as customers / distributor required
④ Strict quality control for our products
⑤ Quick delivery time

---After-Sales Services
① 2 year guarantee for laser source(people damaged are charged)
② Full technical support / by e-mail, call and video
③ Spare parts supply.
④ Free online training installation and operation
⑤ 12 hours quick feedback & after-sales services
⑥ ODM/OEM service

FAQ
1. What model does Herolaser produce?
Production of Laser Welding series, Laser Cleaning series, Laser Cutting series and Laser New energy automation, etc.

2. What are the payment methods of Herolaser Company?
T/T, LC, CAD, OA, Trade Insurance, Alibabapay

3. Does Herolaser accept Acceptance?
Yes, we accept bank acceptances within 6 months, not commercial acceptances.

4. Can I visit the factory?
Available to have a visit to our factory at any time.

5. What can I get with the purchase of equipment?
Each machine has a set of standard accessories.

6. Can I go to the factory to test the machine before shipment?
Of course you can.

7. How is the delivery and shipment?
Ship in 7 days after 100% payment; Packaged with Plywood box.

8. How about your pre-sales service?
Provide quick response and free consulting services within 8 hours.

9. How will you guarantee after-sales services?
We offer two years warranty for laser source, one year for the machine.

10. How will you guarantee after-sales services?
We offer two years warranty for laser source, one year for the machine.
