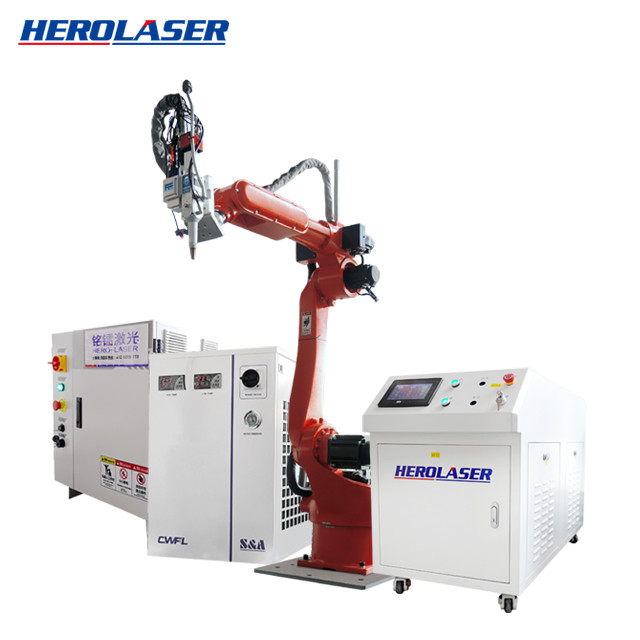

Herolaser Robotic Laser Welding Machine , Automatic Laser Welder For Metal

Place of Origin China
Brand Name Herolaser
Certification ISO9001, FDA
Model Number ML-RH-3000
Minimum Order Quantity 1 Set
Price Negotiable
Packaging Details Plywood Box
Delivery Time 7~10 Work Day
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 600 Set/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Brand Herolaser Laser Source Brand IPG
Working Mode Continuous Material Thickness Aluminum Alloy≤3mm
Power Demand 380V±10% Cooling Water Cooling
High Light

380V Robotic Laser Welding Machine

,

IPG Robotic Laser Welding Machine

,

IPG Robotic Automatic Laser Welder

Leave a Message
Product Description

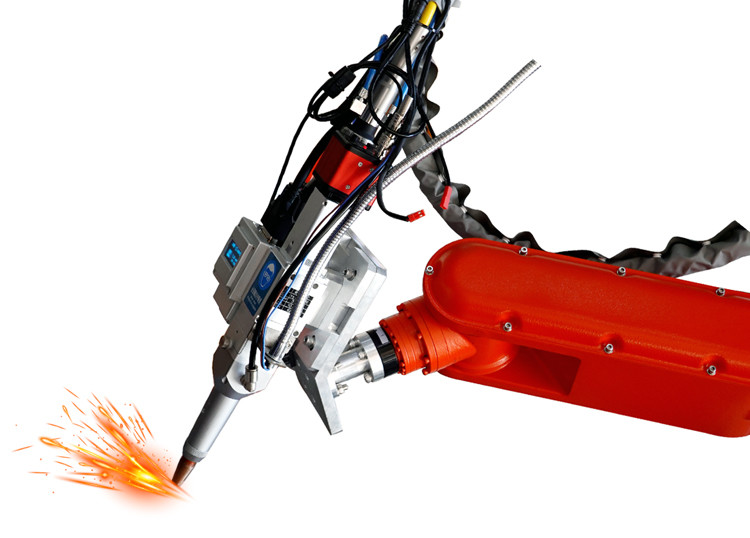

Herolaser Robotic Laser Welding Machine Automatic Laser Welder for Metal Weld



Machine Features for mini laser welding machine



1. Welding by optical fiber, One-time forming workpiece, workpiece not deformed

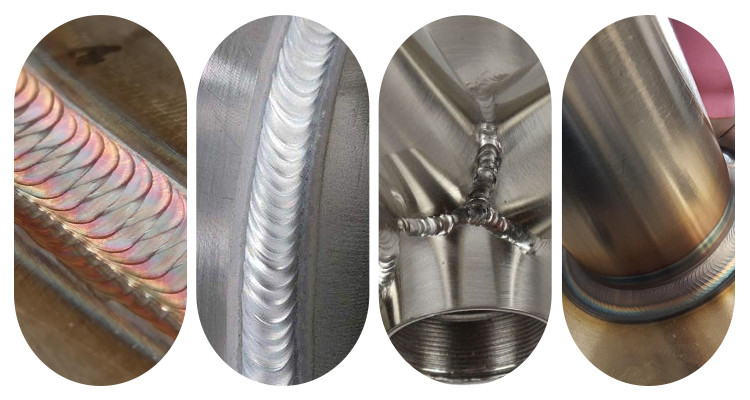

2. No welding scars, smooth and beautiful



3. Welding welding is very firm



4. The welding head can be replaced to meet various welding needs



5. No technical requirements, anyone can weld perfectly



                                                                   Herolaser Robotic Laser Welding Machine , Automatic Laser Welder For Metal 0



Laser Cleaning Machine for Rust,Oil,Resin,Dust,Stain,Coating,Plating,Oxidized Surface Cleaning & Removal 100W/500W/1000W/2000W



Model characteristics​



1) Wobble technology, swing welding, welding spot can be adjusted, Make up for the small defect of traditional

welding spot, Strong fault tolerance, Increased workpiece tolerance range and weld width

2) Automatic wire feeding design, Stable and continuous wire feeding makes welding seam more beautiful

3) Replaceable copper nozzles, Can meet various welding needs and various shapes.

4) Water cooling design for gun, protective gas design for workpiece, And temperature detection system





Laser Cleaning Machine for Rust,Oil,Resin,Dust,Stain,Coating,Plating,Oxidized Surface Cleaning & Removal 100W/500W/1000W/2000W



N Item Parameter
1 Equipment name Double position robot laser welding machine
2 laser power 300~3000W
3 Laser wavelength 1070NM
4 Laser wavelength 10M
5 operation mode Continuous / modulation
6 Welding speed range 0~120mm/s
7 Cooling water machine Industrial constant temperature water tank
8 Working environment temperature range 15~35°C
9 Working environment temperature range <70% No condensation
10 area covered 1600*3000mm(Manipulator and worktable)
11 Arm length 1400mm
12 working voltage three-phase380V
13 Spatial positioning accuracy ±0.05mm



Laser Cleaning Machine for Rust,Oil,Resin,Dust,Stain,Coating,Plating,Oxidized Surface Cleaning & Removal 100W/500W/1000W/2000W



Herolaser Robotic Laser Welding Machine , Automatic Laser Welder For Metal 4



FAQ
1. How is the payment?
30% deposit before production and the balance 70% before shipment
2. How is the delivery and shipment?
Ship in 7 days after 100% payment
Plywood box packaging
3. How will you guarantee aftersales services?
We offer two warranty for laser source, one year for whole machine and lifetime maintenance services.
Engineers available to service machinery overseas
Free technical training in our factory
Free sample can be sent to you
Professional technical team 24 hours online
4. How about your presales service?
Speeding offer within 8 hours quick response and free consulting
Free sample marking or testing is available
Progressing solution design to all clients, including distributors and end users
