1064nm-1074nm CW PW Laser Cleaning Machine For Rust Remove Paint Oil
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Cabinet Dimensions | 390*180*280(mm) | Laser | Fiber Laser |
|---|---|---|---|
| Laser Type | CW, PW | Laser Wavelength | 1064nm-1074nm |
| Cooling Way | Air Cooling, Water Cooling | Supply Voltage | 220V |
| Working Temperature | 5~40℃ | Fiber Length | 3M |
| Laser Head Weight | 1.0kg | Total | 15kg |
| High Light | 1064nm PW Laser Cleaning Machine,Deionized Water Laser Cleaning Machine,IPG Fiber Laser Cleaning Equipment |
||
Product Description
Introduction
-
Laser cleaning machine is the latest high-tech product. Easy to install, operate, easy to achieving automation.. Plug in power, turn on and start cleaning - without chemicals, media, dust, water.
Cleaning with no detergent, no media, no dust, no water. Auto focus, can clean curved surface, gentle cleaning surface. Cleaning resin, oil stain, rust, coating materials, paints on workpiece surface.

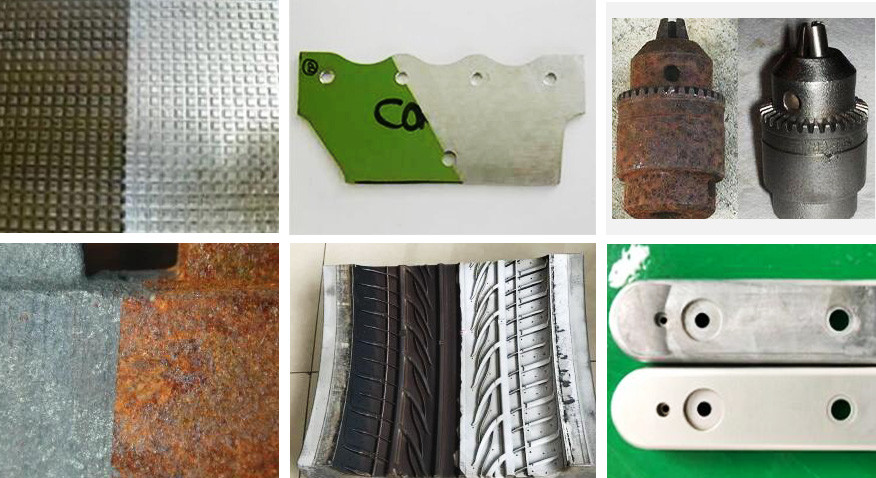

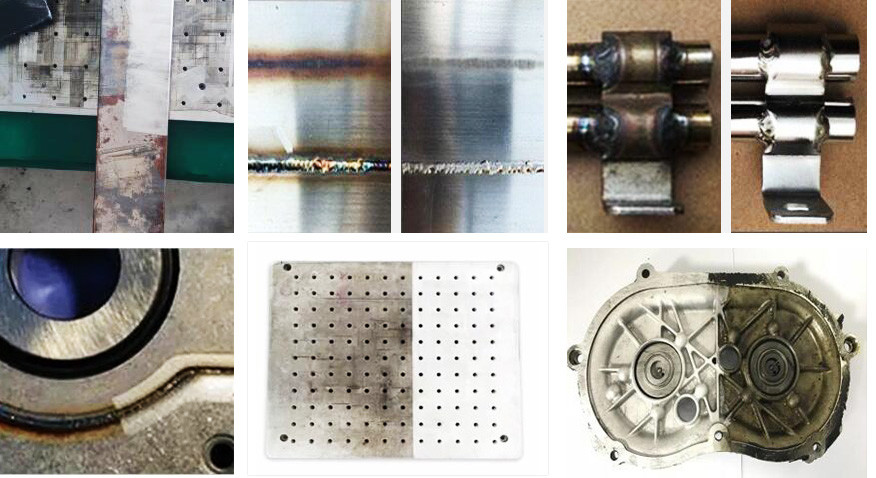

Detail Photos
| Model | ML-MF-200l-LC | ML-MF-500l-LC |
| Laser power | 200W | 500W |
| Laser source type | IPG fiber laser source | |
| Laser wavelength | 1064 nm | |
| Cooling method | Water cooling | |
| Cooling water | Deionized water | |
| Water temperature | 18-22 ℃ | |
| Cabinet size | 1420 mm*850mm*1370mm (L*W*H) | |
| Total weight (with water tank) | 225 kg | 275 kg |
| Maximum power | 2200 W | 5100 W |
| Focal depth | 10 mm | 15 mm |
| Scan width | 10-80mm | |
| Auxiliary gas | Compressed air/Nitrogen | |
| Air pressure | 0.5-0.8 MPa | |
| Optional accessory | Handheld / Manipulator | |
| Working condition | 5-40 ℃ | |
| Apply to | a. Metal surface rust removal |
| b. Surface paint cleaning | |
| c. Surface oil stain/contaminant cleaning | |
| d. Coating surface cleaning | |
| e. Welding / coating surface pre-treatment | |
| f. Stone figure surface dust & attachment cleaning | |
| g. Plastic mould residues cleaning | |
| Features | a. Revolutionary eco-friendly cleaning technology |
| b. Non-contact cleaning, no damage to work piece | |
| c. Precision positioning, selective cleaning | |
| d. Safe & environment-friendly. Without using chemical detergent or other consumables | |
| e. Easy to operate, with portable mode and could be equipped with robot for automatic cleaning | |
| f. High efficiency, time-saving | |
| g. Stable laser cleaning system, practically maintenance free |
Product Parameters
| Model | ML-MF100I-LC | ML-MF200I-LC | |||
| Laser Power | 100W | 200W | |||
| Cooling Way | Air Cooling | Water Cooling | |||
| Laser Wavelength | 1064nm | ||||
| Power Supply | AC 220-380V / 50 Hz | ||||
| Maximum KVA | 500W | 2200W | |||
| Fiber Length | 3-7m | 10-15m | |||
| Dimension | 460x285x450mm | 1400X860X1600 mm | |||
| Focal length | 210mm | ||||
| Focal depth | 2mm | 5mm | |||
| Handheld Laser Head Weight | 1.5kg | ||||
| Working Temperature | The service life of the laser is long at constant temperature of 5-40 ° C (normally at constant temperature of 25 ° C) | ||||
| Pulse width | 20-50k ns | ||||
| Scan Width | 10mm-80mm (customizable additional price) | ||||
| Laser frequency | 20-50k HZ | ||||
| Laser source type | Fiber laser source | ||||
| Options |
Portable/
Handheld
|
Handheld/
Automation/
Robotic system
|
|||
Handheld Laser Cleaning Machine Cleaning Data:
(This data is for reference only, please refer to the actual data of the proofing; 1000W laser cleaning equipment can be adjusted to 500W.)
| Rust Removal | 200W | 500W | 1000W |
| 30μm | 12m²/hour | 15m²/hour | 19m²/hour |
| 50μm | 10.8m²/hour | 13.5m²/hour | 17.5m²/hour |
| 80μm | 8.5m²/hour | 11.8m²/hour | 16m²/hour |
| 100μm | 6m²/hour | 8.5m²/hour | 14m²/hour |
Certifications
Company
Packing & Shipping
Environlent-Friendly
A environlent-friendly cleaning choice: It not only means that the laser cleaning is effect, but also the cleaning process is
environmental protection process. It doesn’t use chemical cleaner, moreover, thus avoiding damage to materials caused by
chemical corrosion.
Comparison with traditional clean methods:
| Comparision | Laser Cleaning | Chemical Cleaning | Mechanical Grinding | Dry ice cleaning |
| Washing Method | non-contact cleaning | contact cleaning | Abrasive contact cleaning | non-contact cleaning |
| Harm to base material | None | Yes | Yes | None |
| Washing Efficiency | High | Low | Low | Mid. |
| Consumable | Power | Chemical Detergent | Abrasive paper, grinder, abrasive stone | Dry Ice |
| Washing result | Very good, very clear | Medium, uneven | Medium, uneven | Good, uneven |
| Precision Washing | Accuracy controllable. High precision | Uncontrollable, low precision. | Uncontrollable, medium precision. | Uncontrollable, poor precision. |
| Safety/Environment | No pollution | Chemical pollution | Dust pollution |
No pollution |
| Operation | Easy to operate, portable or automation optional. | Complicated process, higher technical requirement of the operator. Pollution prevention measures required. | Need more time & manpower. Pollution prevention measures required. | Easy to operate, portable or automatic. |
| Investment | High investment on machine. But no consumable, low maintenance cost | Low investment on machine. But expensive consumables | Medium investment on machine. High man-power cost. | Medium investment on machine. High consumable cost. |
Applications:
1.Metal surface rust removal
2.Paint cleaning
3.Oil stain, contaminant cleaning
4.Coating surface cleaning
5.Welding/Coating surface pre-treatment.
6.Stone figure surface dust & attachment cleaning.
7.Plastic mould residues cleaning
After Sales Service
1) 2 year guarantee for laser source(people damaged are charged)
2) Full technical support / by e-mail, call and video
3) Spare parts supply.
4) Free online training installation and operation
5 12 hours quick feedback & after-sales services
6) ODM/OEM service
FAQ
1. What model does Herolaser produce?
Production of Laser Welding series, Laser Cleaning series, Laser Cutting series and Laser New energy automation, etc.
2. What are the payment methods of Herolaser Company?
T/T, L/C, CAD, OA, Trade Insurance, Alibabapay.
3. Does Herolaser accept Acceptance?
Yes, we accept bank acceptances within 6 months, not commercial acceptances.
4. Can I visit the factory?
Available to have a visit to our factory at any time.
5. What can I get with the purchase of equipment?
Each machine has a set of standard accessories.
6. Can I go to the factory to test the machine before shipment?
Sure you can.
7.How is the delivery and shipment?
Ship in 7 days after 100% payment; Packaged with Plywood box.
8. How will you guarantee after-sales services?
We offer two years warranty for laser source, one year for the machine.
