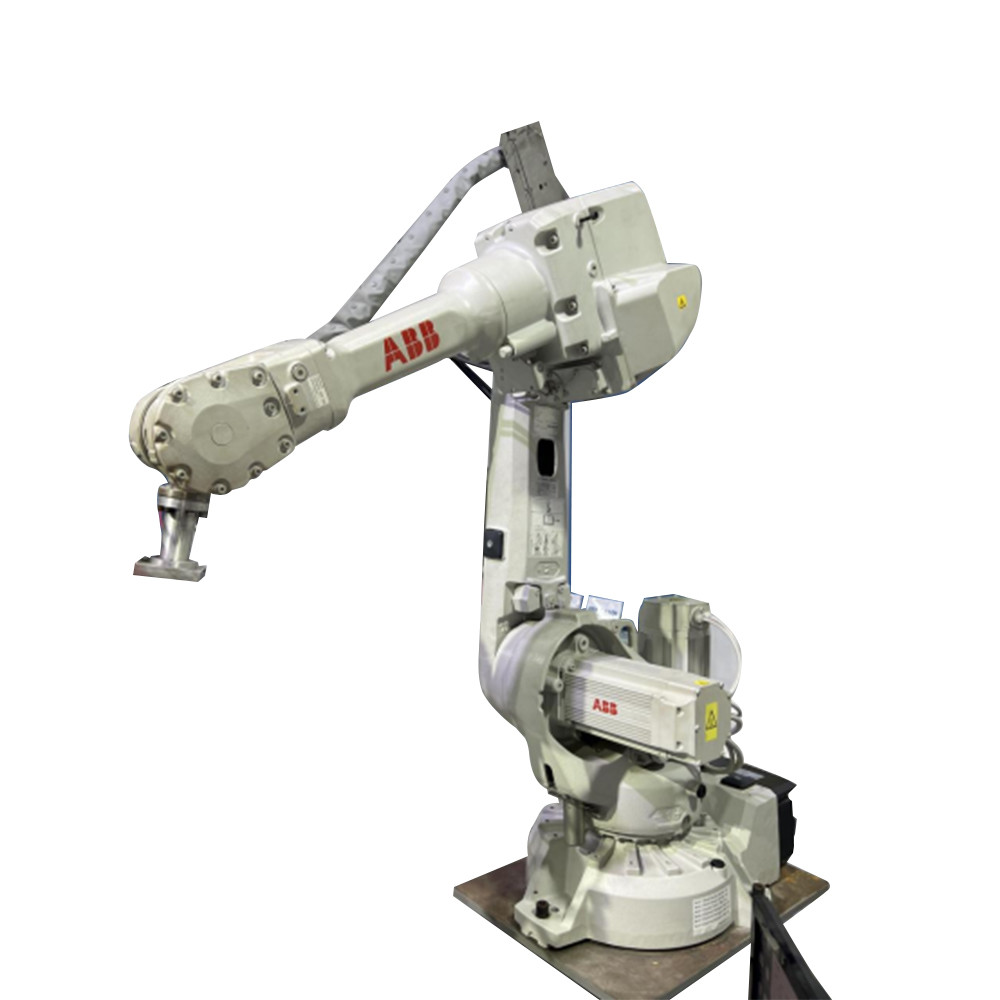

Herolaser 3000w Automatic Laser Welding Machine With ABB Robot Arm

Place of Origin China
Brand Name Herolaser
Certification CE FDA Certification
Model Number ML-RW-RH-3000w
Minimum Order Quantity 1 Set
Price Negotiable
Packaging Details Plywood Box
Delivery Time 7~10 Work Day
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 600 Set/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Brand Herolaser Laser Source Brand IPG, Max
Focal Spot Diameter 0.1mm-5mm Power Demand 380V±10%,50Hz/60Hz AC
Cooling Water Cooling Wavelength 1070 Nm
High Light

Water Cooling Robot Laser Welding Machine

,

FDA Automatic Laser Welder

,

Robot Arm Laser Welding Machine

Leave a Message
Product Description

  Laser Cleaning Machine for Rust,Oil,Resin,Dust,Stain,Coating,Plating,Oxidized Surface Cleaning & Removal 100W/500W/1000W/2000W

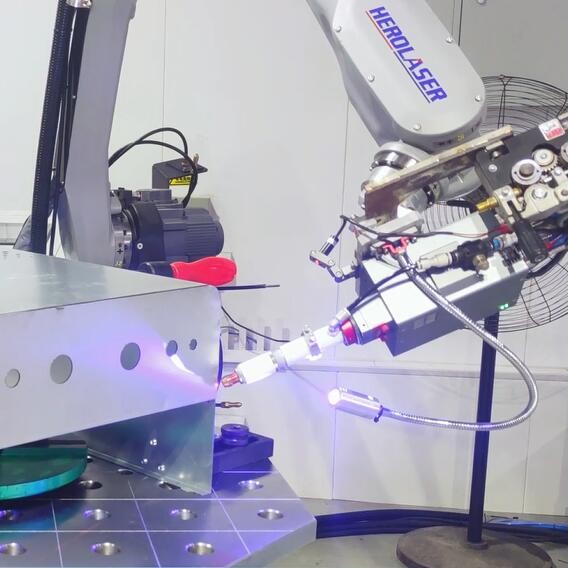

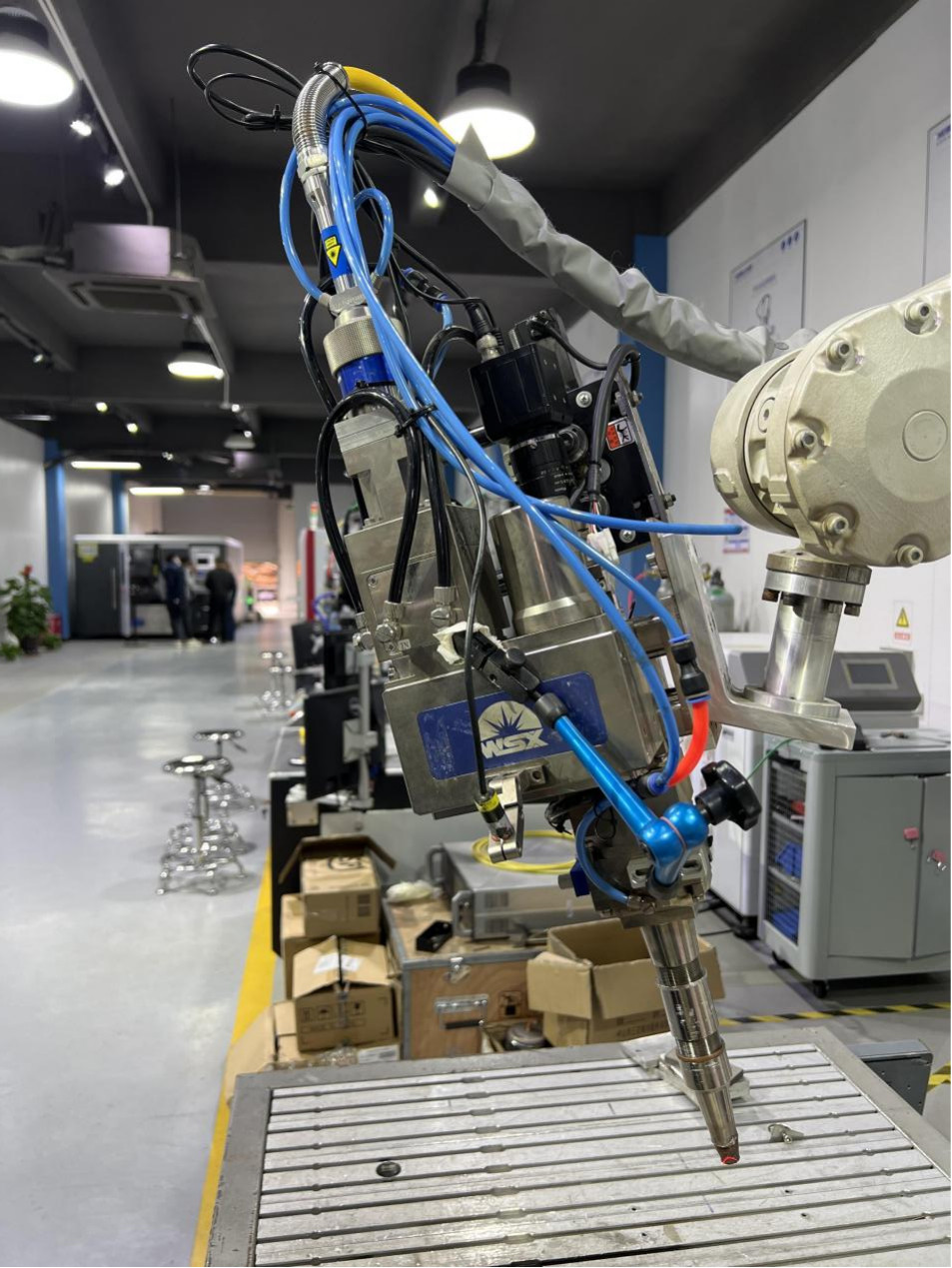

Herolaser 3000w Robot Automatic Laser Welding Machine



Model profile



Laser welding robot takes semiconductor laser as the welding heat source, which makes it more and more widely used in the



welding of camera parts of mobile phones, laptops and other electronic devices.

                                                          Herolaser 3000w Automatic Laser Welding Machine With ABB Robot Arm 1



Laser Cleaning Machine for Rust,Oil,Resin,Dust,Stain,Coating,Plating,Oxidized Surface Cleaning & Removal 100W/500W/1000W/2000W



Model characteristics​



1. It is non-contact. The minimum point diameter formed by laser can reach 0.1mm, and the minimum tin feeding device can reach 0.2mm. It can realize the welding of micro pitch packaging (mounting) components.



2. Because it is a short time of local heating, the thermal effect on the substrate and surrounding parts is very small, and the quality of solder joints is good.



3. No consumption of soldering iron head, no need to replace the heater, and high working efficiency during continuous operation.



4. When conducting lead-free welding, it is not easy to have solder joint cracks.



5. The surface temperature of the solder shall be measured by non-contact method, but not by the temperature measurement method actually contacting the solder head.



Laser Cleaning Machine for Rust,Oil,Resin,Dust,Stain,Coating,Plating,Oxidized Surface Cleaning & Removal 100W/500W/1000W/2000W



N Item Parameter
1 Equipment name Double position robot laser welding machine
2 laser power 300~3000W
3 Laser wavelength 1070NM
4 Laser wavelength 10M
5 operation mode Continuous / modulation
6 Welding speed range 0~120mm/s
7 Cooling water machine Industrial constant temperature water tank
8 Working environment temperature range 15~35°C
9 Working environment temperature range <70% No condensation
10 area covered 1600*3000mm(Manipulator and worktable)
11 Arm length 1400mm
12 working voltage three-phase380V
13 Spatial positioning accuracy ±0.05mm

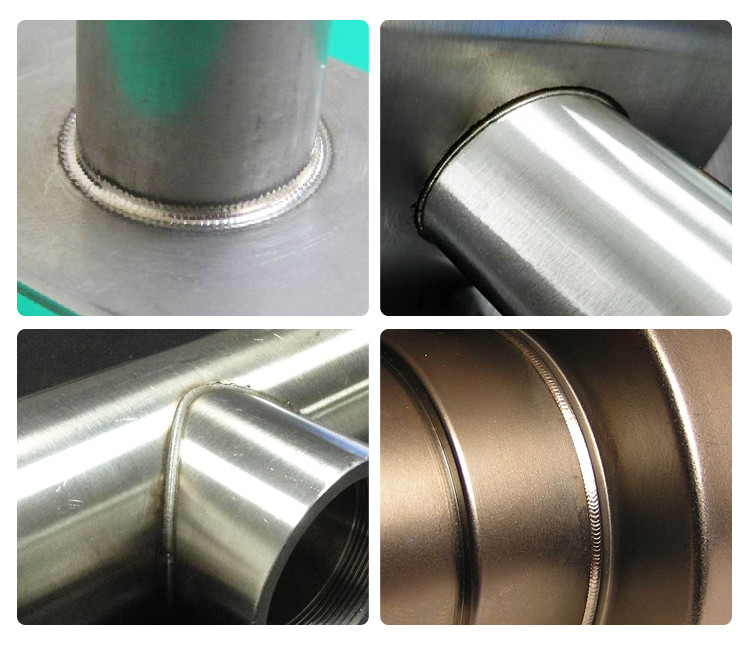

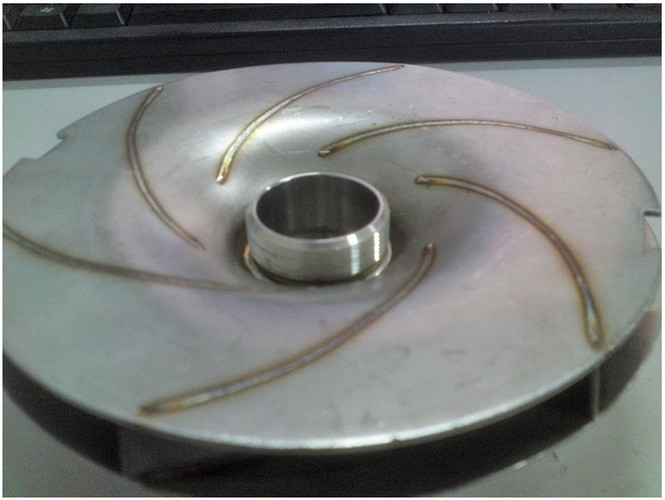

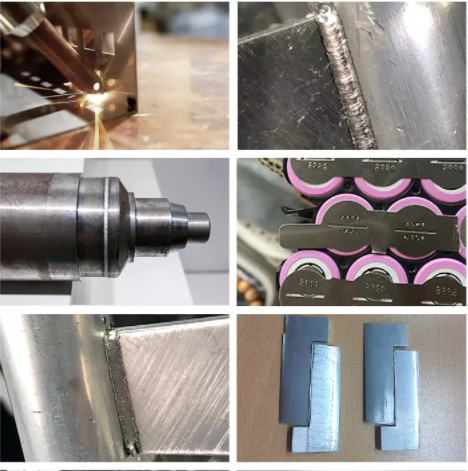

APPLICATION



The laser welding robot system has been more and more widely used in the welding of camera parts, LCD parts, micro motors,



micro transformers and other parts of electronic devices such as mobile phones and laptops, as well as in LCD TV, high-end



digital cameras, aerospace military manufacturing, high-end automotive parts manufacturing and other fields.





Laser Cleaning Machine for Rust,Oil,Resin,Dust,Stain,Coating,Plating,Oxidized Surface Cleaning & Removal 100W/500W/1000W/2000W



Herolaser 3000w Automatic Laser Welding Machine With ABB Robot Arm 5



FAQ
1. How is the payment?
30% deposit before production and the balance 70% before shipment
2. How is the delivery and shipment?
Ship in 7 days after 100% payment
Plywood box packaging
3. How will you guarantee aftersales services?
We offer two warranty for laser source, one year for whole machine and lifetime maintenance services.
Engineers available to service machinery overseas
Free technical training in our factory
Free sample can be sent to you
Professional technical team 24 hours online
4. How about your presales service?
Speeding offer within 8 hours quick response and free consulting
Free sample marking or testing is available
Progressing solution design to all clients, including distributors and end users
