Max Speed 20m/Min Herolaser Laser Cutting Machine 1064nm-1074nm

Place of Origin China
Brand Name Herolaser
Certification ISO9001, CE
Model Number ML-CB-6025FA-IW
Minimum Order Quantity 1 Set
Price $36000~45000/set
Packaging Details Wooden Case
Delivery Time 7 work days
Payment Terms L/C, D/A, D/P, T/T
Supply Ability 20 sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
ML-C6-QFS 1064nm-1074nm Laser Wavelength ≤20m/min
Max Speed Of X Axis ≤20m/min Max Speed Of Z Axis AC220V, ±5% 50Hz
Power Supply AC220V, ±5% 50Hz Dimension 1880mmx1450mmx2100mm
High Light

17m/min Laser Cutting Machine


220V High Precision Laser Cutter


20m/Min High Precision Laser Cutter

Leave a Message
Product Description

-------------------------Product informatioin------------------------------------


The laser cutting machine is a fiber laser cutting machine with advanced structural design and excellent machine tool performance. It uses a world-class CNC system and fiber laser. The gantry double-drive structure is applied, and the integral welded base is adopted. It adopts a rack and pinion transmission structure with fast speed, high accuracy, and one-time cutting and forming without subsequent processing. Greatly improve processing efficiency; visible layout, close fit, saving materials. Advanced technology can increase the speed of your company's new product development and recover your equipment investment cost as soon as possible.


Max Speed 20m/Min Herolaser Laser Cutting Machine 1064nm-1074nm 0

-------------------------Product Parameters-------------------------------------


Optical performance parameter
Laser source wavelength ML-CB-6025FA-IW
Output power rate of the Laser source 1070nm
Effective cutting area 600mm*600mm
Cutting thickness (depend on Laser source power) Carbon ≤8mm;Stainless Steel ≤4mm;
Aluminum Alloy ≤2mm; Copper ≤2mm;
Positioning accuracy ≤±0.03mm
Repeated position accuracy ≤±0.02mm
Max speed of X-axis ≤20m/min
Max speed of Y-axis ≤20m/min
Max speed of Z-axis ≤17m/min
Synthesis speed ≤20m/min
Max accelerated speed 0.3G
Bearing weight 300KG
Electric demand AC220V±5%50Hz
Total Power consumption 6KW-25KW
Dimension 1880*1450*2100(mm)
Machine weight 1200KG
Support Graphical format DXF

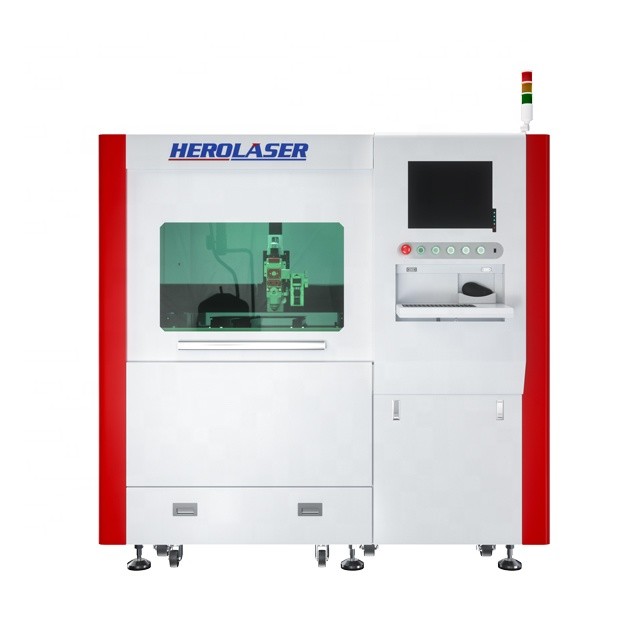

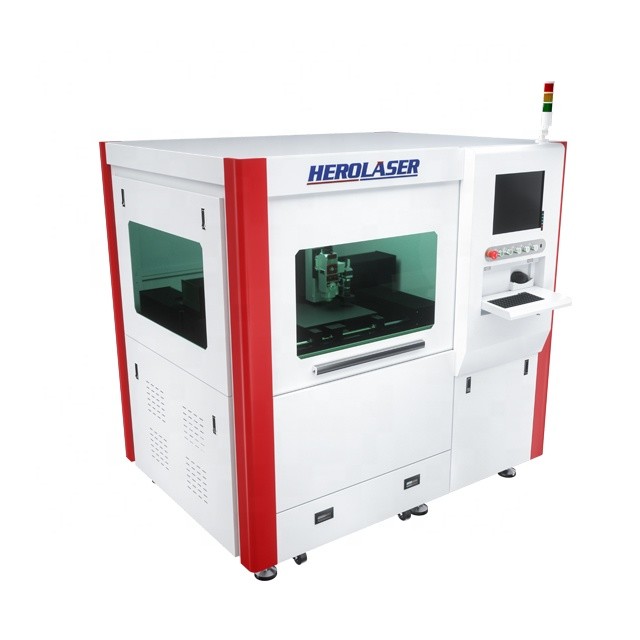

-------------------------Details of Product-----------------------------------------


Max Speed 20m/Min Herolaser Laser Cutting Machine 1064nm-1074nm 1

Max Speed 20m/Min Herolaser Laser Cutting Machine 1064nm-1074nm 2

Max Speed 20m/Min Herolaser Laser Cutting Machine 1064nm-1074nm 3


-------------------------Advantages of laser cutting---------------------------

- Can cut all kinds of graphics on planiform plates.

- High precision, fast speed, narrow cutting seam, minimum heat affected zone, smooth cutting surface without burrs.

- The laser cutting head will not touch the surface of the material and will not scratch the workpiece.

- Narrow thin kerf, small heat-affected zone, minimal local deformation of the workpiece, no mechanical deformation.

- Good processing flexibility, can process any graphics.

- It can cut steel plate, stainless steel, aluminum alloy plate, hard alloy and other hard materials without deformation.

- The parallel exchange platform is used to complete the exchange within 20 seconds, which greatly improves the processing efficiency.

- Low power consumption, no reaction gas required, compressed air is used as auxiliary gas for laser cutting.

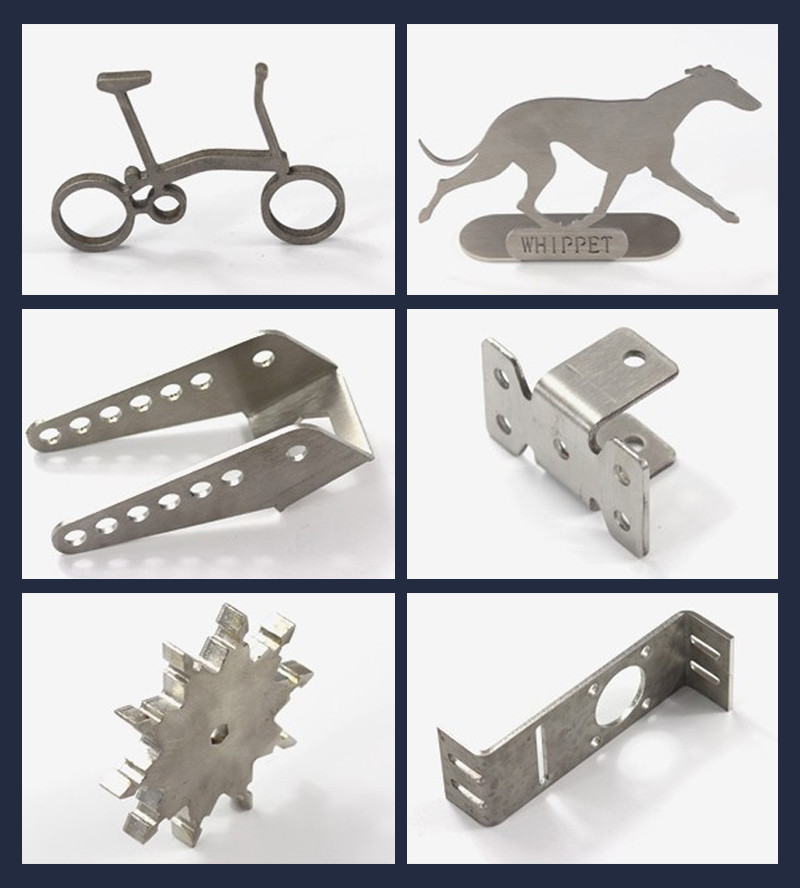

---------------------------------Cutting Effect--------------------------------------------

Max Speed 20m/Min Herolaser Laser Cutting Machine 1064nm-1074nm 4


-------------------------Applicable Industry------------------------------------------------

Max Speed 20m/Min Herolaser Laser Cutting Machine 1064nm-1074nm 5 Max Speed 20m/Min Herolaser Laser Cutting Machine 1064nm-1074nm 6


Max Speed 20m/Min Herolaser Laser Cutting Machine 1064nm-1074nm 7 Max Speed 20m/Min Herolaser Laser Cutting Machine 1064nm-1074nm 8


-------------------------After-sales Services--------------------------------------------------
① 2 year guarantee for laser source(people damaged are charged)
② Full technical support / by e-mail, call and video
③ Spare parts supply
④ Free online training installation and operation
⑤ 12 hours quick feedback & after-sales services
⑥ ODM/OEM service

-------------------------After-sales Services------------------------------------------------


1. What model does Herolaser produce?

Production of Laser Welding series, Laser Cleaning series, Laser Cutting series and Laser New energy automation, etc.

2. What are the payment methods of Herolaser Company?
T/T, LC, CAD, OA, Trade Insurance, Alibabapay

3. Does Herolaser accept Acceptance?
Yes, we accept bank acceptances within 6 months, not commercial acceptances.

4. Can I visit the factory?
Available to have a visit to our factory at any time.

5. What can I get with the purchase of equipment?
Each machine has a set of standard accessories.

6. Can I go to the factory to test the machine before shipment?
Of course you can.

7.How is the delivery and shipment?
Ship in 7 days after 100% payment; Packaged with Plywood box.

8. How about your pre-sales service?
Provide quick response and free consulting services within 8 hours.

9.How will you guarantee after-sales services?
We offer two years warranty for laser source, one year for the machine.
