Custom Metal Non Metal CNC FIber Laser Cutters , Herolaser Cutting Engraving Machine
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | ML-C6-QF-BP-IW | Laser Wavelength | 1064nm-1074nm |
|---|---|---|---|
| Max Cutting Speed | 20m/min (up To The Material) | Max Cutting Range | 236*236(inch) |
| Control Software | Cypcut | Power Comsumption | 2.5kw |
| High Light | CNC FIber Laser Cutters,CE Cutting Engraving Machine,20m/min Cutting Engraving Machine |
||
Product Description
-------------------------Product informatioin------------------------------------

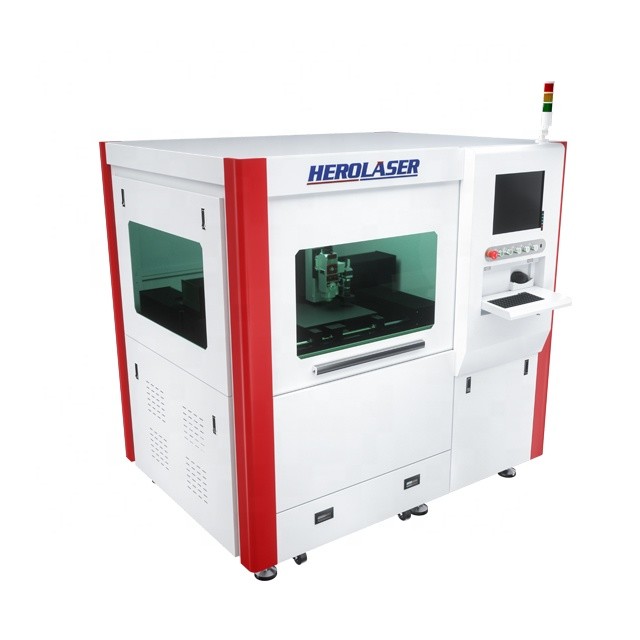

Precision laser cutting machine is a special cutting equipment designed by using laser technology and numerical control technology. It has the characteristics of stable laser power, good beam mode, high peak power, high efficiency, low cost, safety, stability and simple operation.
-------------------------Product Parameters-------------------------------------
| Optical performance parameter | |
| Laser source wavelength | ML-C6-QF-BP-IW |
| Output power rate of the Laser source | 1070nm |
| Effective cutting area | 600mm*600mm |
| Cutting thickness (depend on Laser source power) | Carbon ≤8mm;Stainless Steel ≤4mm; |
| Aluminum Alloy ≤2mm; Copper ≤2mm; | |
| Positioning accuracy | ≤±0.03mm |
| Repeated position accuracy | ≤±0.02mm |
| Max speed of X-axis | ≤20m/min |
| Max speed of Y-axis | ≤20m/min |
| Max speed of Z-axis | ≤17m/min |
| Synthesis speed | ≤20m/min |
| Max accelerated speed | 0.3G |
| Bearing weight | 300KG |
| Electric demand | AC220V±5%50Hz |
| Total Power consumption | 6KW-25KW |
| Dimension | 1880*1450*2100(mm) |
| Machine weight | 1200KG |
| Support Graphical format | DXF |
-------------------------Details of Product-----------------------------------------
-------------------------Advantages of laser cutting---------------------------
- Can cut all kinds of graphics on planiform plates.
- High precision, fast speed, narrow cutting seam, minimum heat affected zone, smooth cutting surface without burrs.
- The laser cutting head will not touch the surface of the material and will not scratch the workpiece.
- Narrow thin kerf, small heat-affected zone, minimal local deformation of the workpiece, no mechanical deformation.
- Good processing flexibility, can process any graphics.
- It can cut steel plate, stainless steel, aluminum alloy plate, hard alloy and other hard materials without deformation.
- The parallel exchange platform is used to complete the exchange within 20 seconds, which greatly improves the processing efficiency.
- Low power consumption, no reaction gas required, compressed air is used as auxiliary gas for laser cutting.

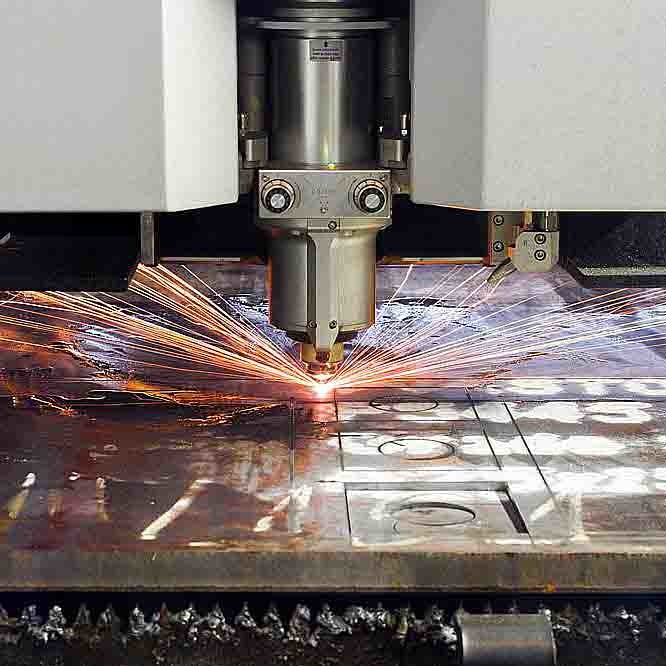

---------------------------------Cutting Effect--------------------------------------------
-------------------------Applicable Industry------------------------------------------------
-------------------------After-sales Services--------------------------------------------------
① 2 year guarantee for laser source(people damaged are charged)
② Full technical support / by e-mail, call and video
③ Spare parts supply
④ Free online training installation and operation
⑤ 12 hours quick feedback & after-sales services
⑥ ODM/OEM service
-------------------------After-sales Services------------------------------------------------
1. What model does Herolaser produce?
Production of Laser Welding series, Laser Cleaning series, Laser Cutting series and Laser New energy automation, etc.
2. What are the payment methods of Herolaser Company?
T/T, LC, CAD, OA, Trade Insurance, Alibabapay
3. Does Herolaser accept Acceptance?
Yes, we accept bank acceptances within 6 months, not commercial acceptances.
4. Can I visit the factory?
Available to have a visit to our factory at any time.
5. What can I get with the purchase of equipment?
Each machine has a set of standard accessories.
6. Can I go to the factory to test the machine before shipment?
Of course you can.
7.How is the delivery and shipment?
Ship in 7 days after 100% payment; Packaged with Plywood box.
8. How about your pre-sales service?
Provide quick response and free consulting services within 8 hours.
9.How will you guarantee after-sales services?
We offer two years warranty for laser source, one year for the machine.
