Herolaser Continuous Laser Welding Machine Automatic Sheet Welding Equipment

Place of Origin China, Shenzhen
Brand Name Herolaser
Certification CE, FDA
Model Number AR-ML-6000W
Minimum Order Quantity 1 Set
Price Negotiable
Packaging Details wooden case
Delivery Time 10-15 days
Payment Terms L/C, D/A, D/P, T/T
Supply Ability 200 sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Laser Source Brand IPG Focal Spot Diameter 0.1mm~5mm
Power Demand 380V±10%, 50Hz/60Hz AC Cooling Water Cooling
Wavelength 1060-1070nm Laser Continuous
Leave a Message
Product Description

Herolaser Continuous Laser Welding Machine Automatic Sheet Welding Equipment
Model profile
The automatic laser welding machine uses a single pulse laser with a wavelength of 1064nm generated by the laser to irradiate
the surface of the workpiece after passing through the beam expander, reflector and focusing. The heat of the surface spreads to
the interior according to the heat conduction. According to the main parameters such as the total width, kinetic energy, maximum
output power and repetition frequency of the laser single pulse, the product workpiece is melted to produce a special molten pool,
Then complete the laser welding of the parts to be processed, and carry out high-precision electric welding that cannot be
completed by traditional handicrafts.

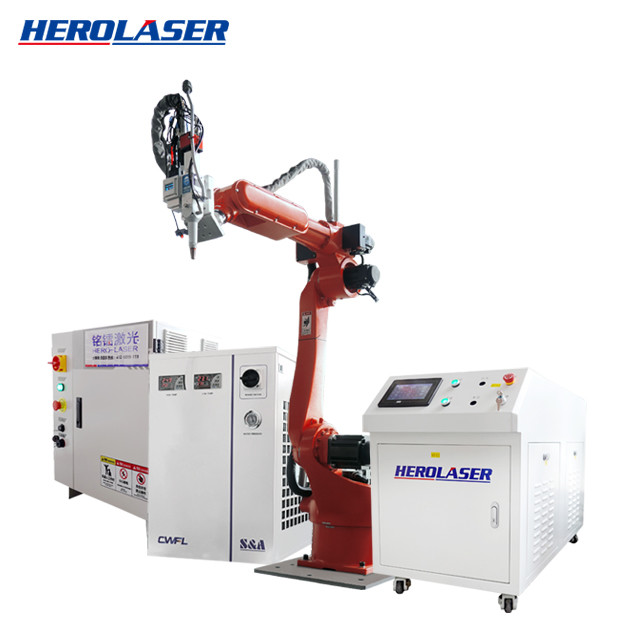

Herolaser Continuous Laser Welding Machine Automatic Sheet Welding Equipment 0
Features of automatic laser welding machine:
1. The automatic laser welding machine can carry out small electric welding. After focusing, the laser beam can obtain small light spots and can be accurately positioned, which can be used in the assembly welding of micro, medium and small products manufactured in a large number of automatic production.
2. The silicide raw materials such as titanium can be welded by electric welding, and the raw materials of friends of opposite sex can be welded, and the actual effect is excellent.
3. Four-dimensional ball screw operating platform, with imported servo motor automatic control system and optional rotary work frame, can complete automatic electric welding such as welding, parallel line welding, round welding, etc., with wide application fields, high accuracy and faster speed.
4. The laser output power is large, the welding has a high aspect ratio, the thermal hazard area is small, the deformation is small, and the welding speed is faster.
5. It can be used to weld the inaccessible positions. It has great coordination ability to implement non-contact long-distance electric welding.
6. Laser welding can complete welding, butt welding, overlap welding and sealing welding for thick wall raw materials and high-precision parts.
7. After laser focusing, the power is high. When welding high power electronic devices, the aspect ratio can reach 5:1, and the maximum can reach 10:1.
8. The current wave pattern can be adjusted at will. Different wave patterns can be set according to different welding materials, so that the main parameters of electric welding are consistent with the provisions of electric welding, so as to achieve a satisfactory actual effect of electric welding.
9. Able to carry out electric welding under indoor temperature or unique standard, and the laser welding equipment is simple. For example, according to the magnetic field, the light is not easy to deviate; Laser welding can be carried out in vacuum pump, gas and some kind of vapor natural environment, and electric welding can be carried out according to laminated glass or raw materials that are completely transparent to light.

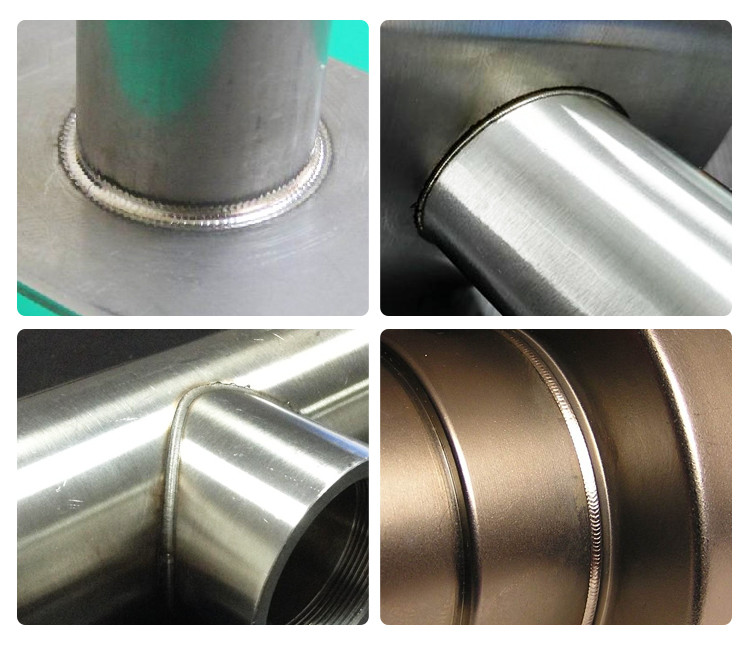

Herolaser Continuous Laser Welding Machine Automatic Sheet Welding Equipment 1

1Equipment nameDouble position robot laser welding machine
2laser power300~3000W
3Laser wavelength1070NM
4Laser wavelength10M
5operation modeContinuous / modulation
6Welding speed range0~120mm/s
7Cooling water machineIndustrial constant temperature water tank
8Working environment temperature range15~35°C
9Working environment temperature range<70% No condensation
10area covered1600*3000mm(Manipulator and worktable)
11Arm length1400mm
12working voltagethree-phase380V
13Spatial positioning accuracy±0.05mm
