Herolaser Robot Arm Robotic Automatic Welding Machine Equipment

Herolaser Robot Arm Robotic Automatic Welding Machine Equipment

Model profile

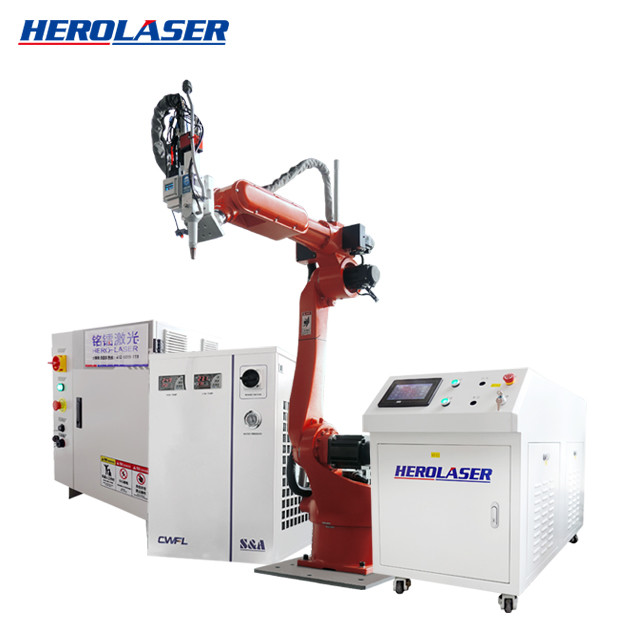

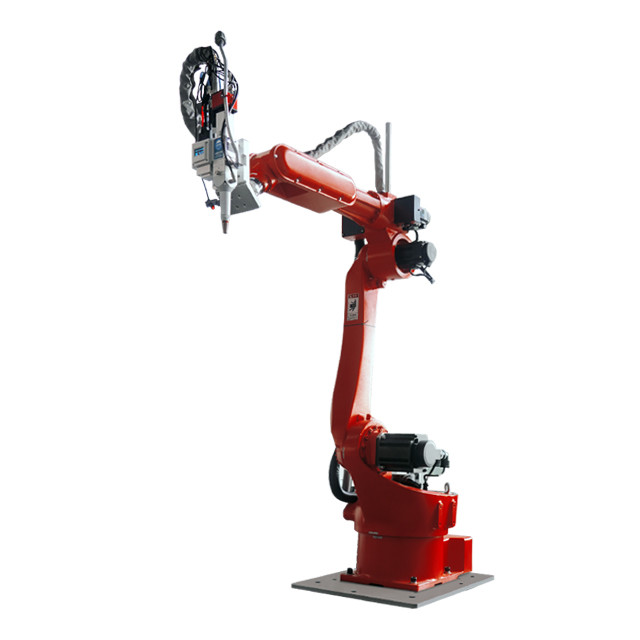

The robot laser welding machine is mainly composed of the manipulator, the fiber laser and the control system.Manipulator can

be assembled into a single shaft to the multi-axis manipulator, according to the different load, stroke, function and adaptation to

customize special space requirements, at the same time,the rotating shaft and the turnover shaft can be extended on the basis

of X.Y.Z axis, flexibility is strong, especially suitable for welding work on all kinds of irregular products, fiber laser is divided into

two kinds of continuous and pulse source, choose according to the demand,control system develops and customizes

separately according to the manipulator and laser .After the application of robot laser welding, the appearance and internal

quality of welding parts are greatly improved, the quality is stable, the labor intensity is reduced, and the working environment is

improved.



Features of automatic laser welding machine:

1. The automatic laser welding machine can carry out small electric welding. After focusing, the laser beam can obtain small light spots and can be accurately positioned, which can be used in the assembly welding of micro, medium and small products manufactured in a large number of automatic production.

2. The silicide raw materials such as titanium can be welded by electric welding, and the raw materials of friends of opposite sex can be welded, and the actual effect is excellent.

3. Four-dimensional ball screw operating platform, with imported servo motor automatic control system and optional rotary work frame, can complete automatic electric welding such as welding, parallel line welding, round welding, etc., with wide application fields, high accuracy and faster speed.

4. The laser output power is large, the welding has a high aspect ratio, the thermal hazard area is small, the deformation is small, and the welding speed is faster.

5. It can be used to weld the inaccessible positions. It has great coordination ability to implement non-contact long-distance electric welding.

6. Laser welding can complete welding, butt welding, overlap welding and sealing welding for thick wall raw materials and high-precision parts.

7. After laser focusing, the power is high. When welding high power electronic devices, the aspect ratio can reach 5:1, and the maximum can reach 10:1.

8. The current wave pattern can be adjusted at will. Different wave patterns can be set according to different welding materials, so that the main parameters of electric welding are consistent with the provisions of electric welding, so as to achieve a satisfactory actual effect of electric welding.

9. Able to carry out electric welding under indoor temperature or unique standard, and the laser welding equipment is simple. For example, according to the magnetic field, the light is not easy to deviate; Laser welding can be carried out in vacuum pump, gas and some kind of vapor natural environment, and electric welding can be carried out according to laminated glass or raw materials that are completely transparent to light.
