Herolaser Robot Laser Welding Machine

Place of Origin China, Shenzhen
Brand Name Herolaser
Certification CE, FDA
Model Number AR-ML-6000W
Minimum Order Quantity 1 Set
Price Negotiable
Packaging Details wooden case
Delivery Time 10-15 days
Payment Terms L/C, D/A, D/P, T/T
Supply Ability 200 sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Laser Source Brand IPG, MAX Focal Spot Diameter 0.1mm~5mm
Power Demand 380V±10%, 50Hz/60Hz AC Cooling Water Cooling
Wavelength 1060-1070nm Laser Continuous
Leave a Message
Product Description

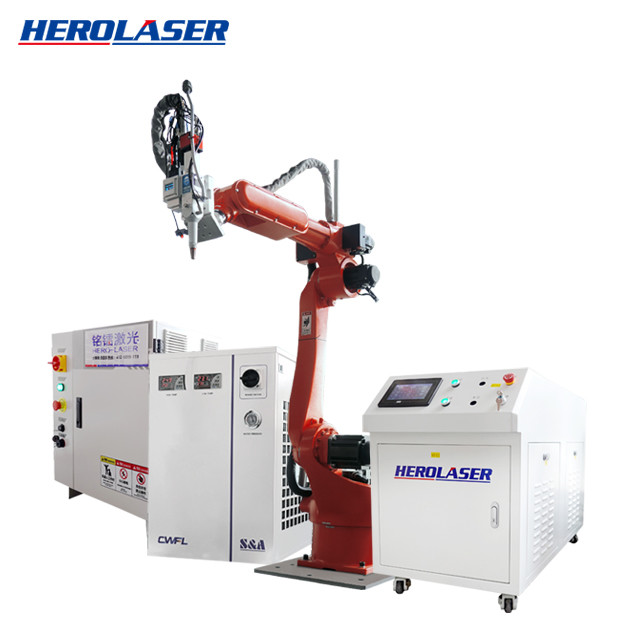

Herolaser Robot Arm Robotic Automatic Welding Machine Equipment
Model profile
Herolaser robot laser welding system consists of fiber laser, laser power supply, control system, laser indicating positioning system, WOBBLE laser welding head, cooling system, etc.
The laser generator adopts a fiber laser, the laser pulse waveform can be edited arbitrarily, and the energy output is stable.
The laser welding head adopts the laser welding head independently developed by Herolaser, which has very high welding stability and flexibility, and can be rotated 360 degrees.
The cooling system of the fiber laser welding machine is composed of temperature measuring device, water circulation, radiator and deionized resin.
The temperature measuring device detects the water temperature in the water tank in real time and judges whether the water temperature is too high.

Herolaser Robot Laser Welding Machine 0
Features of automatic laser welding machine:
1. The automatic laser welding machine can carry out small electric welding. After focusing, the laser beam can obtain small light spots and can be accurately positioned, which can be used in the assembly welding of micro, medium and small products manufactured in a large number of automatic production.
2. The silicide raw materials such as titanium can be welded by electric welding, and the raw materials of friends of opposite sex can be welded, and the actual effect is excellent.
3. Four-dimensional ball screw operating platform, with imported servo motor automatic control system and optional rotary work frame, can complete automatic electric welding such as welding, parallel line welding, round welding, etc., with wide application fields, high accuracy and faster speed.
4. The laser output power is large, the welding has a high aspect ratio, the thermal hazard area is small, the deformation is small, and the welding speed is faster.
5. It can be used to weld the inaccessible positions. It has great coordination ability to implement non-contact long-distance electric welding.
6. Laser welding can complete welding, butt welding, overlap welding and sealing welding for thick wall raw materials and high-precision parts.
7. After laser focusing, the power is high. When welding high power electronic devices, the aspect ratio can reach 5:1, and the maximum can reach 10:1.
8. The current wave pattern can be adjusted at will. Different wave patterns can be set according to different welding materials, so that the main parameters of electric welding are consistent with the provisions of electric welding, so as to achieve a satisfactory actual effect of electric welding.
9. Able to carry out electric welding under indoor temperature or unique standard, and the laser welding equipment is simple. For example, according to the magnetic field, the light is not easy to deviate; Laser welding can be carried out in vacuum pump, gas and some kind of vapor natural environment, and electric welding can be carried out according to laminated glass or raw materials that are completely transparent to light.
Herolaser Robot Laser Welding Machine 1

N Items Parameters
1 Equipment name Double position robot laser welding machine
2 laser power 300~3000W
3 Laser wavelength 1070NM
4 Laser wavelength 10M
5 operation mode Continuous / modulation
6 Welding speed range 0~120mm/s
7 Cooling water machine Industrial constant temperature water tank
8 Working environment temperature range 15~35°C
9 Working environment temperature range <70% No condensation
10 area covered 1600*3000mm(Manipulator and worktable)
11 Arm length 1400mm
12 working voltage three-phase380V
13 Spatial positioning accuracy ±0.05mm
