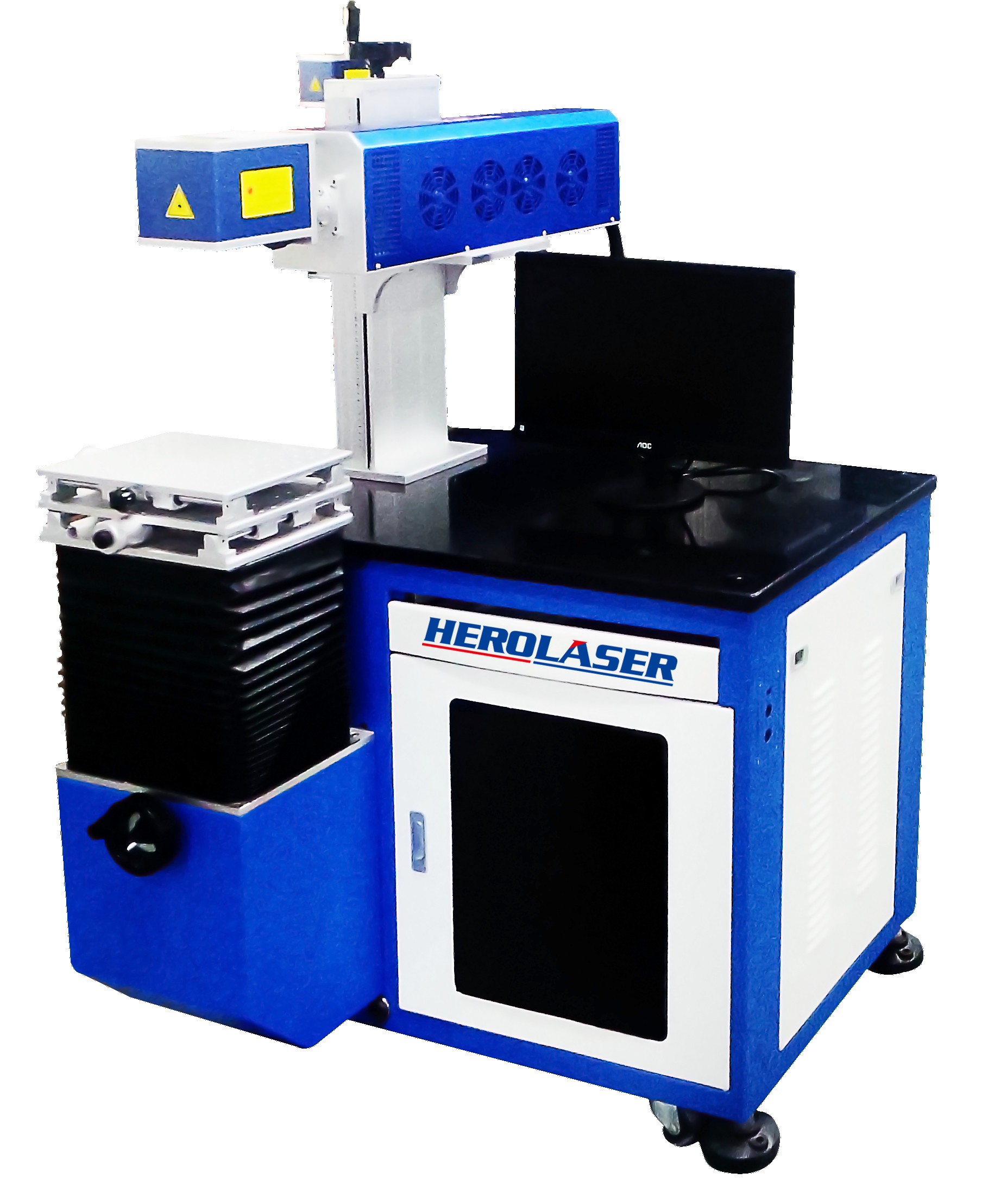

Air Cooling CO2 Laser Marking Machine

Place of Origin China
Brand Name Herolaser
Certification CE, ISO, FDA
Model Number ML-CO2-W30
Minimum Order Quantity 1 Set
Price Negotiable
Packaging Details Wooden case package
Delivery Time 12 days
Payment Terms T/T, Western Union
Supply Ability 600 set per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Laser Power 30 And 150W Laser Wavelength 10.64μm
Laser Repetition Rate ≤20kHZz Standard Engraving Range 110*110mm / 650*650mm (optional)
Minimum Line Width 0.10mm Total Power Total Power
Engraving Depth ≤ 3mm Cooling System Air Cooling
High Light

Air cooling CO2 Laser Marking Machine


1064nm CO2 Laser Marking Machine


1064nm laser engraving system

Leave a Message
Product Description

High Speed CO2 Laser Marking Machine for Non-metaillic Materials


Model introduction:


The CO2 radio frequency laser is a gas laser with a laser wavelength of 10.64μm, which belongs to the mid-infrared frequency band. The CO2 laser has a relatively large power and a relatively high electro-optical conversion rate. The carbon dioxide laser uses CO2 gas as the working material to charge CO2 and other auxiliary gases into the discharge tube. When a high voltage is applied to the electrode, a glow discharge is generated in the discharge tube, which can make the gas molecules release the laser; the released laser energy After beam expansion and focusing, it can be deflected by scanning galvanometer for laser processing.


Model features:


  1. The marking accuracy is high, the speed is fast, and the depth of engraving can be controlled at will.
  2. The laser power is large, which can be applied to engraving and cutting a variety of non-metal products.
  3. No consumables, low processing cost, and the operating life of the laser is as high as 20000-30000 hours
  4. Clear marking, not easy to wear, high engraving and cutting efficiency, environmental protection and energy saving.

Technical specifications:


S.N Item Specifications
1 Type DX-CO2-W30 DX-CO2-W150
2 Laser output power 30W 50W
3 Laser wavelength 10.64μm
4 Laser repetition rate ≤20kHZz ≤100kHZz
5 Standard engraving range 110*110mm / 650*650mm (optional)
6 Minimum line width 0.10mm
7 Repeatability ±0.01mm
8 Total power 1.2kW 6kW


Application scope:


Craft gifts, fixtures, leather clothing, advertising signs, model making, food packaging, electronic components, medical packaging, printing and plate making, shell nameplates, applicable materials mainly include bamboo and wood products, paper, cloth leather, plexiglass, epoxy resin, Non-metallic materials such as acrylic and polyester resin.


Marking samples for reference:


Air Cooling CO2 Laser Marking Machine 0

Air Cooling CO2 Laser Marking Machine 1


1. How is the payment?
  • 30% deposit before production and the balance 70% before shipment
2. How is the delivery and shipment?
  • Ship in 7 days after 100% payment;
  • Plywood box packaging
3. How will you guarantee aftersales services?
  • We offer two warranty for laser source, one year for whole machine and lifetime maintenance services.
  • Engineers available to service machinery overseas
  • Free technical training in our factory
  • Free sample can be sent to you
  • Professional technical team 24 hours online
4. How about your presales service?
  • Speeding offer within 8 hous quick response and free consulting.
  • Free sample marking or testing is avaiable
  • Progressing solution design to all clients, including distributors and end users.


Air Cooling CO2 Laser Marking Machine 2
