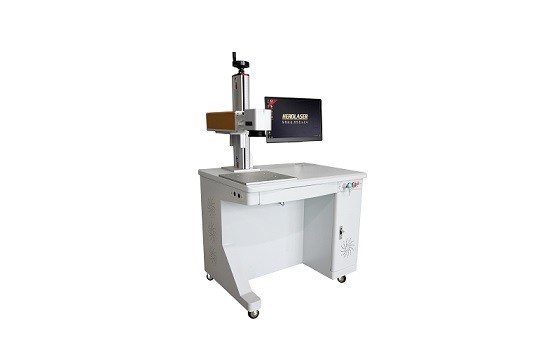

Industrial Air Cooling CO2 Laser Marking Machine , Portable Laser Marker

Place of Origin China
Brand Name Herolaser
Certification CE, ISO, FDA
Model Number DX-CO2-W30
Minimum Order Quantity 1 Set
Price Negotiable
Packaging Details Wooden case package
Delivery Time 12 days
Payment Terms T/T, Western Union
Supply Ability 600 set per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Condition New Laser Wavelength 10.64μm
Laser Repetition Rate ≤20kHZz Standard Engraving Range 110*110mm
Minimum Line Width 0.10mm Total Power 1200W
Engraving Depth ≤ 3mm Cooling System Air Cooling
High Light

Industrial CO2 Laser Marking Machine

,

Air cooling CO2 Laser Marking Machine

,

CO2 portable laser marker

Leave a Message
Product Description

Industrial Marking CO2 Laser Marking Machine Engraving on Non Metal Laser Engraver



Model introduction:



CO2 RF laser is a kind of gas laser, the laser wavelength is 10.64nm, belongs to the mid infrared band. CO2 laser has high power and photoelectric conversion rate. Carbon dioxide laser uses carbon dioxide as its working material, and auxiliary gases such as carbon dioxide are used to fill the discharge tube. When high voltage is applied to the electrode, glow discharge occurs in the discharge tube, which makes the gas molecules release laser. After the laser beam is expanded and focused, it is processed by the deflection scanning mirror.



Model features:



  • Marking accuracy is high, speed is fast, engraving depth can be controlled at will.
  • Laser power is large, can be used in all kinds of non-metal products engraving and cutting.
  • No consumables, low processing cost, laser life up to 20,000-30,000 hours
  • Logo clear, not easy to wear, engraving and cutting efficiency is high, environmental protection and energy saving.



Technical specifications:



S.No Item Specifications
1 Type DX-CO2-W30
2 Laser output power 30W
3 Laser wavelength 10.64μm
4 Laser repetition rate ≤20kHZz
5 Standard engraving range 110*110mm / 650*650mm (optional)
6 Minimum line width 0.10mm
7 Repeatability ±0.01mm
8 Total power 1.2kW
9 Engraving depth ≤ 3mm
10 Minimum character 0.4mm
11 Engraving line speed ≤7000mm/s
12 Power requirement 220V / Single phase /50Hz /8A
13 Light path system size 1200mm*190mm*200mm
14 Control system 600mm*600mm*800mm
15 Cooling system Air-cooled



Application scope:



Craft gifts, fixtures, leather clothing, advertising signs, model making, food packaging, electronic components, medical packaging, printing and plate making, shell nameplates, applicable materials mainly include bamboo and wood products, paper, cloth leather, plexiglass, epoxy resin, Non-metallic materials such as acrylic and polyester resin.

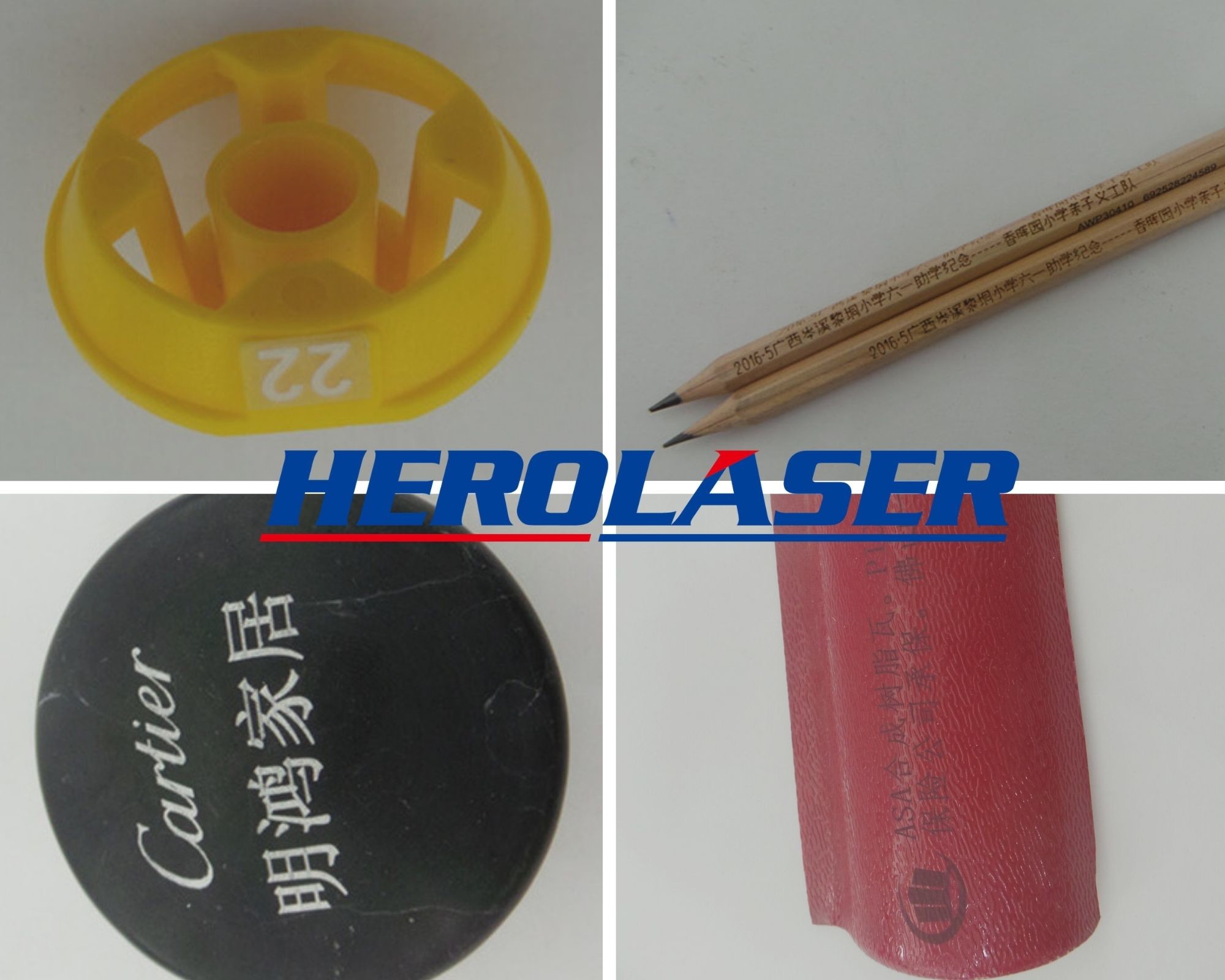

Marking samples for reference:



Industrial Air Cooling CO2 Laser Marking Machine , Portable Laser Marker 0
