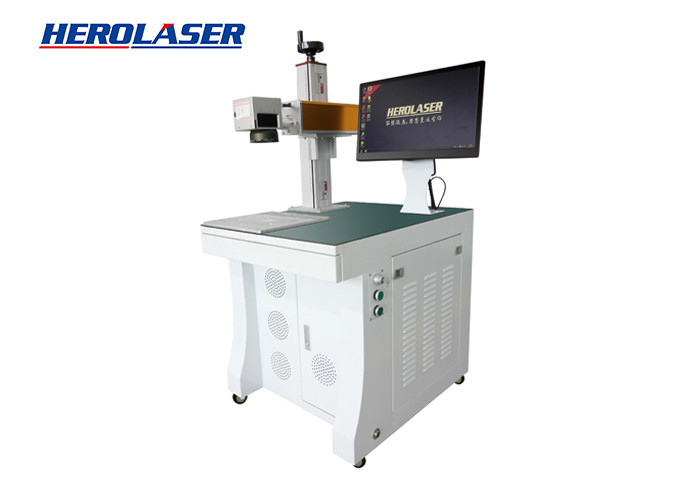

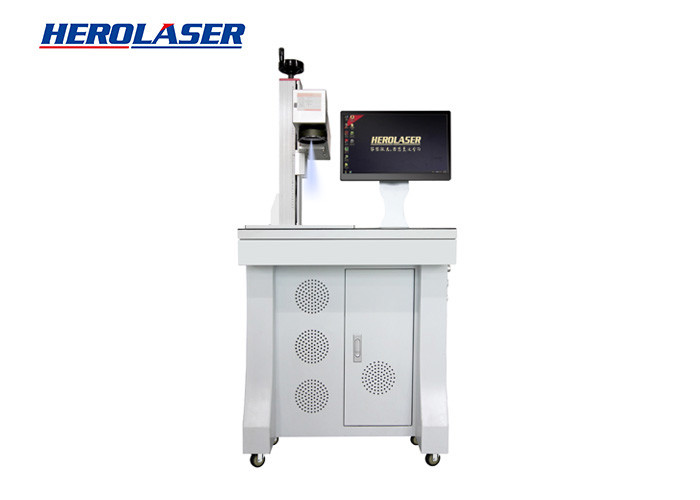

Powerful RECI Galvo CO2 Laser Marking Machine For Non Metal Marking

Place of Origin China
Brand Name Herolaser
Certification CE, ISO, FDA
Model Number ML-MC-DZ-00-HW30
Minimum Order Quantity 1 Set
Price Negotiable
Packaging Details Wooden case package
Delivery Time 12 days
Payment Terms T/T, Western Union
Supply Ability 600 set per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Laser Wavelength 10.64μm Standard Engraving Range 70mm×70mm 110mm×110mm 175mm×175mm
Minimum Line Width 0.10mm Engraving Depth ≤ 3mm
Min Character Height 0. 2mm Speed ≤7000mm/s
Min Linear Width 0.1mm Power Supply 1.2KW AC220V 50Hz
High Light

RECI Galvo CO2 Laser Marking Machine

,

Galvo CO2 Laser Marking Machine

,

RECI galvo head co2 laser

Leave a Message
Product Description

RECI Laser Source CO2 Metal Tube Laser Marking Machine for Non-metal Marking



Model introduction:



CO2 laser marking machine adopts small integrated design, which combines advanced vibroscope laser marking technology with imported RF excitation seal CO2 laser marking technology

  • Integrated design, compact structure, small footprint, easy to move and install;
  • High-speed galvanometer and 16-bit PCI card, marking speed is 30% faster than similar products;
  • Long life, 24 hours operation, long time maintenance free;
  • Powerful marking software, user-friendly interface, easy to operate, no need to change;
  • Can be customized according to customer requirements special machine.



Model features:

  1. The marking accuracy is high, the speed is fast, and the depth of engraving can be controlled at will.
  2. The laser power is large, which can be applied to engraving and cutting a variety of non-metal products.
  3. No consumables, low processing cost, and the operating life of the laser is as high as 20000-30000 hours
  4. Clear marking, not easy to wear, high engraving and cutting efficiency, environmental protection and energy saving.

Technical specifications:



Model ML-MC-DZ-00-HW10 ML-MC-DZ-00-HW30
Laser Source US Imported RF excited sealed CO2 laser source
Average Output Power 10W 30W
Wave Length 10.64μm
Marking Area 70mm×70mm 110mm×110mm 175mm×175mm
speed ≤7000mm/s
Min Character Height 0. 2mm
Min Linear Width 0.1mm
Power Supply 500W AC220V 50Hz 1.2KW AC220V 50Hz



Applicable materials:



Suitable for wood,paper,leather,cloth,plexiglass,epoxy,acrylic,unsaturated polyester resin and other non-metal materials.



Applicable industries:



Widely used in leather, food, beverage, cloth, electronic, meter, communication instruments, package and other industries, can be combined with streamline for online marking.



Marking samples for reference:



Powerful RECI Galvo CO2 Laser Marking Machine For Non Metal Marking 0



FAQ

1. How is the payment?
  • 30% deposit before production and the balance 70% before shipment
2. How is the delivery and shipment?
  • Ship in 7 days after 100% payment;
  • Plywood box packaging
3. How will you guarantee aftersales services?
  • We offer two warranty for laser source, one year for whole machine and lifetime maintenance services.
  • Engineers available to service machinery overseas
  • Free technical training in our factory
  • Free sample can be sent to you
  • Professional technical team 24 hours online
4. How about your presales service?
  • Speeding offer within 8 hours quick response and free consulting.
  • Free sample marking or testing is available
  • Progressing solution design to all clients, including distributors and end users.
