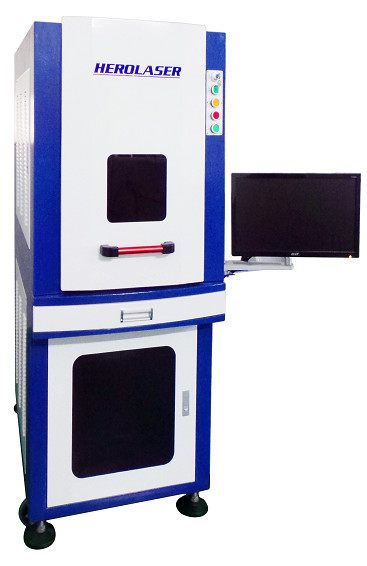

Industrial High Precision Enclosed 1064nm 10W Laser Engraver for steel
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Average Output Power | 10W | Central Wavelength | 1064±4 Nm |
|---|---|---|---|
| Fiber Length | 1.9m | Control Software | EZCAD,JCZ(Ezcad) |
| Graphic Format Supported | DXF,AI,PLT,DST,BMP | Laser Head | SCANZG,Scanning Head,Galvo Head |
| Laser Source | IPG,JPT, MAX & SPI | Cooling | Forced Air |
| High Light | 1064nm 10w laser engraver,Enclosed 10w laser engraver,10W Split Fiber Laser Marking Machine |
||
Product Description
Model introduction:
Fiber lasers are a huge leap forward in the treatment of all metal and coated soft materials for applications. Compared to traditional lasers, our fiber lasers are easily integrated into industrial processes because:
- State-of-the-art, air-cooled, ytterbium Q-switched fiber lasers for marking on almost any material;
- Continuous wave or Q-switched fiber lasers with high repetition rate;
- The beam quality was excellent (M2 < 1.5).
- Extreme reliability, estimated at over 30,000 hours of maintenance-free operation;
- A very high 100,000 hours of MTBF;
- Optimized direct part marking (DPM) applications, including UDI/UID barcodes and 3D deep engraving;
- Red diode pointer for easy application setup;
- Manufacturer's one-year warranty on laser parts
Features:
| 1 | Fast marking speed |
| 2 | Unique, foldable design |
| 3 | High speed scanner head. (Imported brand optional) |
| 4 | fiber laser with 100,000 hours of working life |
| 5 | Simple and convenient operation. Easy to learn and handle. |
| 6 | Fiber laser marking machine can make deep marking up to 1.0mm on stainless steel |
Technical specifications:
| Type | Unit | ML-MF-TY-FB-IW10 |
| Central wavelength | nm | 1064±4 |
| Average output power | W | 10 |
| Peak power | kW | 4.2 |
| Energy per pulse | mJ | 0.5~0.6 |
| Beam quality | ㎡ | ＜1.5 |
| Frenquency tunable range | KHz | 20~60 |
| Power tuable range | % | 5~100 |
| Fiber length | m | 9 |
| Cooling | Forced air | |
| Operate temperature | ℃ | 0~35 |
| Operating humidity | 10~95 | |
| Power stability | % | ＜5 |
| Polarization | Random | |
| Beam diameter | mm | 6~8 |
Common applications:
- Aluminum (Anodized/polished/cast)
- Stainless steel and mild steel
- Titanium and nickel
- Copper and brass
- Carbide
- Polycarbonate and polypropylene
- Painted metal alloys
- Chrome and cast Iron
Marking samples for refernce:
FAQ
1. How is the payment?
- 30% deposit before production and the balance 70% before shipment
2. How is the delivery and shipment?
- Ship in 7 days after 100% payment;
- Plywood box packaging
3. How will you guarantee aftersales services?
- We offer two warranty for laser source, one year for whole machine and lifetime maintenance services.
- Engineers available to service machinery overseas
- Free technical training in our factory
- Free sample can be sent to you
- Professional technical team 24 hours online
4. How about your presales service?
- Speeding offer within 8 hous quick response and free consulting.
- Free sample marking or testing is avaiable
- Progressing solution design to all clients, including distributors and end users.
