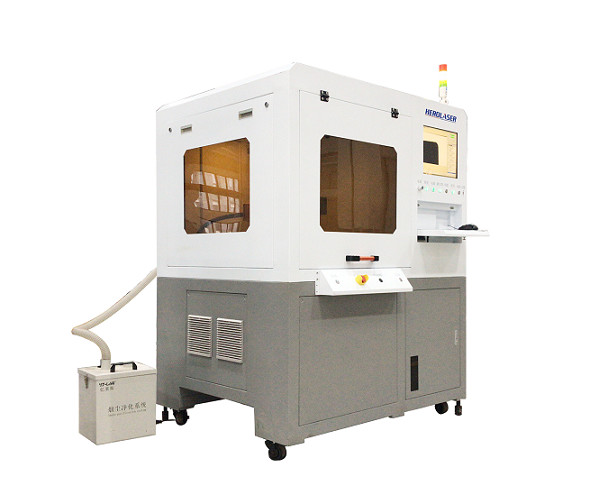

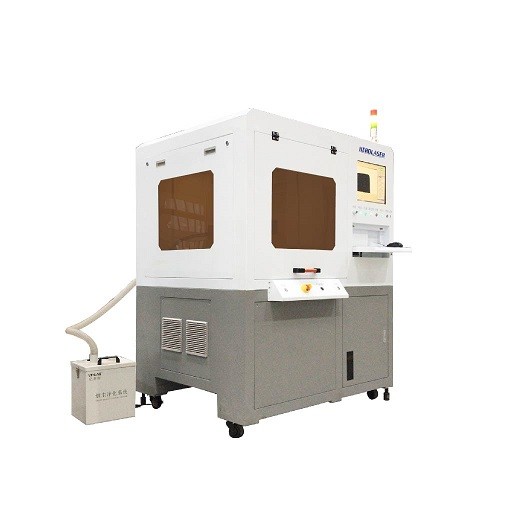

60W CCD Vision Fiber Laser Marking Machine Accurate Positioning

Place of Origin China
Brand Name Herolaser
Certification CE, FDA
Model Number ML-MF-FT-BX-HW60
Minimum Order Quantity 1 SET
Price Negotiable
Packaging Details 1110mm x 860mm x 1520mm in wood box
Delivery Time 12 days
Payment Terms T/T, Western Union
Supply Ability 600 sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Laser Power 60W Beam Quality (㎡) <2
Laser Wavelength (μm) 1.6 Pulsed Frequency (Khz) 20~100
Cooling Method Built-in Air Forced Product Name Top Qualtiy 60w Fiber Laser Marking Machine
Power Supply AC220V 50/60Hz Supported Graphic Format PCX, BMP, PLT, DXF
High Light

60W Fiber Laser Marking Machine

,

CCD Vision Fiber Laser Marking Machine

,

CCD Vision portable laser marking machine

Leave a Message
Product Description

CCD Vision Positioning Fiber Laser Marking Machine Fixed and Accurate Marking Location



Product introdution:



CCD Vision Positioning Fiber Laser Marking Machine is for batch irregular marking fixture design and manufacturing difficulties caused by the problem of feeding difficult, fixed, position difference, slow speed, CCD camera marking by using the external camera real-time capture feature points to be solved. This system is free to supply material, precise, accurate, fixed, location, perfect marking, greatly improve the efficiency of marking. CCD vision system can be equipped with: fiber laser marking machine, UV laser marking machine, CO2 laser marking machine.



Characteristics and advantages:



  1. CCD visual location of laser marking machine is established through visual positioning system before processing product standard template, and then in the batch processing, the system will automatically after photograph products, comparing the software will be according to the image and the template and the coordinates of the product and the Angle information sent directly to the laser, laser can hit the precise location of the laser logo on the product.
  2. Wide vision range, support UV, fiber, CO2 and other mainstream lasers, suitable for most products.
  3. The software can automatically identify and mark the product at any position, Angle and quantity.
  4. Unique software algorithm, high positioning accuracy and corresponding speed.
  5. Stupid operation interface + one-button correction function makes the operation simpler, clear at a glance, and ordinary employees can get started.
  6. Small laser head modular design, convenient integration in a variety of automatic production lines.



Technical details:



Model ML-MF-FT-BX-HW60
Laser wavelength (μm) 1.6
Beam quality (㎡) <2
Laser power (w) 20
Pulsed frequency (Khz) 20~100
Cooling method Built-in air forced
Marking range (mm*mm) 70*70/110*110/175*175
Focal distance 100/163/254
Laser Source MAX/IPG/JPT
Service Life >100,000 Hours
Work distance 103/188/288
Min linewidth 0.02
Min character 0.15
Marking speed (m/s) 0~7000
Supported graphic format PCX, BMP, PLT, DXF
Power supply 220±10%
Frequency (Hz) 50/60
Dimension (mm*mm*mm) 880*760*1400
Net weight (kg) 125
Working temperature (℃) 10-30
Working humidity 5-85% (no condensation)
Power consumption (kw) 1



Application:



It is suitable for large workload, difficult location of material supply, diversity and complexity of workpieces and other occasions with below advantages:



First, small size products are no longer laser marking or welding dare not touch the pain. The addition of vision makes the "small" become "big". The precision problem that the traditional marking machine cannot control is solved here.

Second, the accuracy of the fixture is no longer the controller of the marking accuracy. The precise positioning of vision liberates the precision of the fixture. At this time, the precision of marking has nothing to do with the fixture.

Third, the Angle and location of products are no longer constrained. Simply place the product within the light output range of the laser field mirror without any other requirements.



Marking samples for reference:

60W CCD Vision Fiber Laser Marking Machine Accurate Positioning 0

FAQ

1. How is the payment?
  • 30% deposit before production and the balance 70% before shipment
2. How is the delivery and shipment?
  • Ship in 7 days after 100% payment;
  • Plywood box packaging
3. How will you guarantee aftersales services?
  • We offer two warranty for laser source, one year for whole machine and lifetime maintenance services.
  • Engineers available to service machinery overseas
  • Free technical training in our factory
  • Free sample can be sent to you
  • Professional technical team 24 hours online
4. How about your presales service?
  • Speeding offer within 8 hours quick response and free consulting.
  • Free sample marking or testing is available
  • Progressing solution design to all clients, including distributors and end users.
