FDA Certification 220V Split Fiber Laser Marking Machine With Rotation Axis

  • FDA Certification 220V Split Fiber Laser Marking Machine With Rotation Axis
Place of Origin China
Brand Name Herolaser
Certification CE, FDA
Model Number ML-MF-FT-BX-HW20
Minimum Order Quantity 1 SET
Price Negotiable
Packaging Details 1110mm x 860mm x 1520mm in wood box
Delivery Time 12 days
Payment Terms T/T, Western Union
Supply Ability 600 sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Laser Power 20W Modulation Frequency Range 30-60kHz
Precision 0.001mm Minimum Line Width 0.01mm
Graphic Format Supported BMP,PLT,AI,DXF,DST Application Laser Marking
Control Software EZCAD,JCZ Software,EZCAD Control Software Warranty 1 Year (Laser Warranty 2 Years )
High Light

220V FDA Split Fiber Laser Marking Machine

,

220V Split Fiber Laser Marking Machine

,

FDA 220V desktop fiber laser engraver
Leave a Message
Product Description

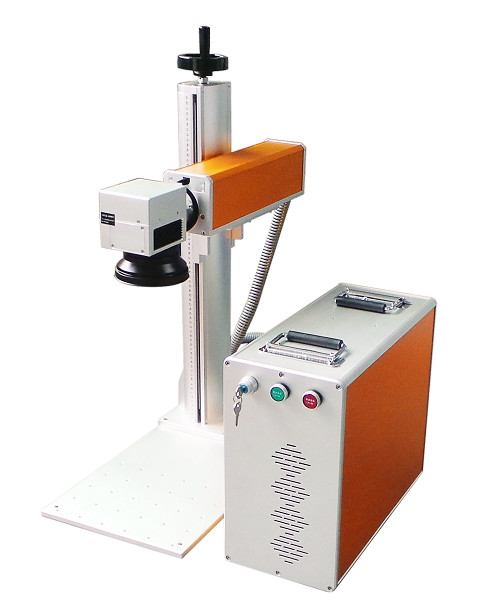

20W Split Fiber Laser Marking Machine Desktop Engraving Machine with Rotation Axis



Product introdution:



20W split fiber laser marking and engraving machine, rotating shaft included, for marking of metallic and nonmetallic materials.This machine is equipped with software. Fiber laser marking machine is mainly composed of fiber laser, vibrator scanning system, computer control system and workbench four parts.



Characteristics and features:



  1. The galvanometer scanning system is made of optical scanner and servo control of two parts, the whole system adopts new technology, new material, new design and manufacturing.
  2. The smallest volume, suitable for harsh environment, friendly interface, easy operation.
  3. Adopts the high quality, high energy, high stability fiber laser source, prime precision optical galvanometer assembly and the industry’s top software.
  4. Compact, lightweight, simple interface, flexible and adjustable processing direction.
  5. The master switch, red light switch and galvanometer switch,
  6. High precision scale
  7. Rotary axis is included, you can mark on regular cylinder or inside / outside ring.



Technical details:



Model: ML-MF-FT-BX-HW20
Fiber laser source: JPT / MAX / IPG
Output power: 20W
Laser wavelength: 1064nm
Modulation frequency range: 30-60kHz
Precision: 0.001mm
Minimum line width: 0.01mm
Minimum height of characters: 0.05mm
Cooling way: Air cooling
Working speed: 0-7000mm/s
Marking range: 110mm x 110mm (4.3in x 4.3in)
Laser power supply: 0.5KW, 220V / 60HZ

Graphic Format Supported:

 AI / BMP / DST / DWG / PLT
Rotary device: Yes
Marking Software: (Ezcad2 software),BYJCZ board


Application industry:



Fiber laser maring/engraving machine can mainly be used for metal materials (typical: steel, stainless steel, silver, copper, alloy, aluminum, etc.); Some non-metallic materials (typical: plastic, ceramic, leather, etc.); Not sure, please contact us!


Marking samples for reference:

FDA Certification 220V Split Fiber Laser Marking Machine With Rotation Axis 0

FAQ

1. How is the payment?
  • 30% deposit before production and the balance 70% before shipment
2. How is the delivery and shipment?
  • Ship in 7 days after 100% payment;
  • Plywood box packaging
3. How will you guarantee aftersales services?
  • We offer two warranty for laser source, one year for whole machine and lifetime maintenance services.
  • Engineers available to service machinery overseas
  • Free technical training in our factory
  • Free sample can be sent to you
  • Professional technical team 24 hours online
4. How about your presales service?
  • Speeding offer within 8 hous quick response and free consulting.
  • Free sample marking or testing is avaiable
  • Progressing solution design to all clients, including distributors and end users.



FDA Certification 220V Split Fiber Laser Marking Machine With Rotation Axis 1
