No Pollution AC220V Desktop UV Laser Marking Machine , UV Laser Cutter
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Positioning Way | Red Light | Control Software | JCZ EZCAD Marking Software And UV Laser Marking Machine Software |
|---|---|---|---|
| Supported Format | PLT, DXF, DST, AI, SDT, BMP, JPG, JPEG, GIF, TGA, PNG, TIF, TIFF,CAD, CDR, DWG And ETC | Operating Voltage | AC220V/50HZ/2A |
| Gross Power | ≤500W | Material Can Be Processed | All Metal Material And All Nonmetal Material |
| Laser Repetition Frequency | 20KHZ-200KHZ | Marking Speed | 7000/s |
| High Light | Desktop UV Laser Marking Machine,AC220V UV Laser Marking Machine,Desktop UV laser cutter |
||
Product Description

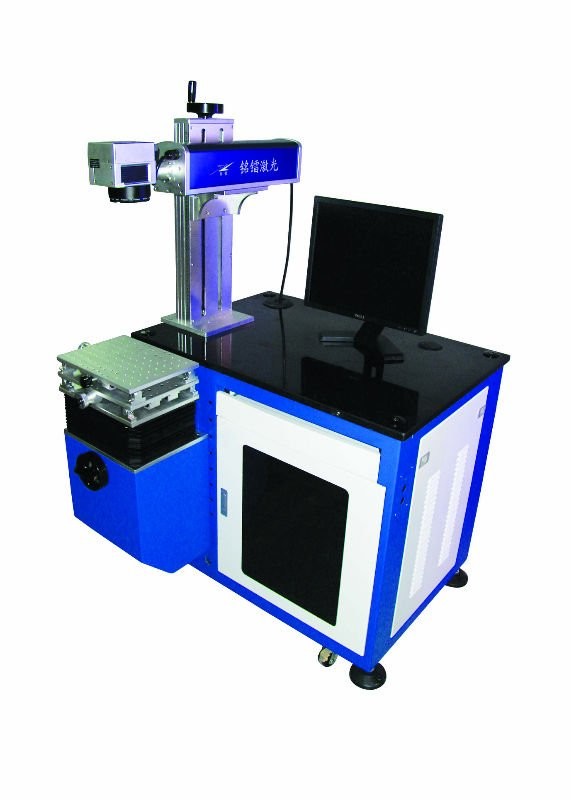

Desktop Type UV Laser Marking Machine High Precision Marking Machine UV Engraving
Product introduction:
The ultraviolet laser is a cold light source. Ultraviolet laser has the characteristics of short wavelength, focusing, small spot, small thermal effect, good beam quality and so on, which can achieve ultrafine marking. Most of the materials can absorb ultraviolet laser and have been widely used in industry. Small heat affected area, no thermal effect, no burning problem, no pollution, non-toxic, fast marking, high efficiency, stable machine performance, low power consumption
Advantages and features:
- High speed scanning galvanometer: waterproof, dustproof and shockproof scan faster
- F-theta: wide focusing range better marking range
- Aluminum working table: aluminum craft/fine polishing integrated cutting
- Hidden lifting shaft: hidden rocker/imported materials, high positioning accuracy
Technical parameters:
| Output Power | 3W, 5W, 8W and 10W |
| Engraving Range | 100×100mm |
| Repetition Precision | ±0.001mm |
| Speed of engraving | 7000mm per second |
| Minimum Line Width | 0.01mm |
| Pulse width | 6-250ns |
| The depth of Engraving(based on material) | <0.3mm |
| Laser Wavelength | 355nm |
| Character Size | 0.5-110mm |
| Cooling System | Air Cooling |
| Working Temperature Range | 10-30℃ |
| Working Humidity | 20%-80% |
| Net Weight of machine | 100kg |
| Production | 12 days |
| Warranty | 2 year for laser source, 1 year for machine |
Application of UV laser marking machine:
- Widely used in electronic components, battery chargers, wires, computer accessories, mobile phone accessories (mobile phone screen, LCD screen) and communication products.
- Auto and motorcycle parts, auto glass, instruments and meters, optical devices, aerospace, military products, hardware machinery, tools, measuring tools, cutting tools, sanitary ware.
- Pharmaceutical, food, beverage and cosmetic industries.
- Glass, crystal products, surface and internal film etching, ceramic cutting or carving, clocks, glasses and other handicrafts.
- It can be marked on polymer materials, most metal and non-metal materials for surface treatment and coating treatment, light polymer materials, plastics, fireproof materials, etc.
Marking samples for reference:
FAQ
1. How is the payment?
- 30% deposit before production and the balance 70% before shipment
2. How is the delivery and shipment?
- Ship in 7 days after 100% payment;
- Plywood box packaging
3. How will you guarantee aftersales services?
- We offer two warranty for laser source, one year for whole machine and lifetime maintenance services.
- Engineers available to service machinery overseas
- Free technical training in our factory
- Free sample can be sent to you
- Professional technical team 24 hours online
4. How about your presales service?
- Speeding offer within 8 hous quick response and free consulting.
- Free sample marking or testing is avaiable
- Progressing solution design to all clients, including distributors and end users.
