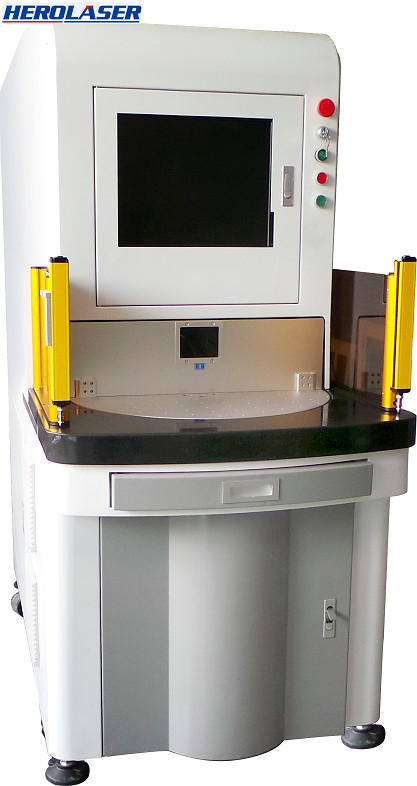

Air Cooled AC 220V 355nm UV Laser Engraver With High Beam Quality

Place of Origin China
Brand Name Herolaser
Certification CE, FDA
Model Number ML-MU-KF-00-HW15
Minimum Order Quantity 1 SET
Price Negotiable
Packaging Details 1110mm x 860mm x 1520mm in wooden box
Delivery Time 12 days
Payment Terms T/T, Western Union
Supply Ability 600 sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Keywords UV Laser Marking Machine Marking Depth 0.01~1mm
Working Accuracy 0.01mm Key Selling Point High Productivity
Electrical Requirement AC 220V±15% 50/60Hz Cooling System Air Cooled
Environment 10-40 ℃ Frequency 1-100khZ
High Light

355nm UC Laser Engraver


AC 220V UC Laser Engraver


355nm uv fiber laser

Leave a Message
Product Description

Small Light Spot UV Laser Marking Machine with High Beam Quality


Product introduction:


This UV laser machine is a general purpose solution for a range of industries. Medical device manufacturers use our UV or "cold label" solutions to create the smooth, hygienic markings required by the FDA, including unique device identification markings. In the electronics and automotive industries, ultraviolet lasers allow companies to mark small, delicate components, including circuit boards and silicon wafers, reducing waste.


UV laser marking machine uses 355 nm UV laser wavelength. These UV wavelengths provide some of the highest absorption rates, minimizing the thermal pressures that can cause product damage.




  1. The use of venous frequency doubling technology, greatly improve the stability of the laser. A series of optimization methods are used to design the laser cavity, so as to ensure the quality of the beam as the basic mode.
  2. The machine takes a 355nm pumped purple laser as the light source. The narrower pulse width and smaller thermal impact help to generate peak power. The higher the peak power, the wider the range of material adaptability. This tool works well for printing relatively hard materials.
  3. The pulse stability is high, that is, the laser pulse consistency is good, the engraving effect is the same, very suitable for precision marking. High pulse repetition frequency meets the requirements of fast marking and high production efficiency.
  4. High photoelectric conversion efficiency and long service life.
  5. Automatic on the rotary table (optional items), convenient feeding, high speed, high efficiency.
  6. The logo is environmentally friendly and in line with RoHS standards.
  7. Support AutoCAD, PLT, BMF, AI, JPG and other DXF format LOGO and graphic design.
  8. Can automatically mark the date, bar code, two-dimensional code.
  9. Excellent performance, good stability, high conversion rate, low energy consumption.


Technical details:


Product Name UV laser marking machine
Laser power 3W/5W
Laser wavelength 355(nm)
Marking area 110*110mm
Working speed 0-7000mm/s

Original JCZ EZCAD software ,supporting Win7/Win8/Win10/Win XP 32/64

bit system

Min Width 0.01mm
Repeat accuracy ±0.01mm
Power power 220V 50/60HZ
Cooling Way Air cooling
Laser module life >15,000 hours
Image Formats Supports PLT, BMP, DXF, JPG, TIF, AI, PNG, JPG, etc.
Operating temperature 10-40℃




  • UV laser marking area will not produce thermal effect, will not cause material scorching problem
  • UV laser is suitable for processing almost all materials except copper materials.
  • Fast speed, high efficiency, small spot, high beam quality
  • Applicable to the high-end market, electronic components, drugs, cosmetics and other polymer materials, packaging bottle surface, glass, crystal internal standard ultrafine processing

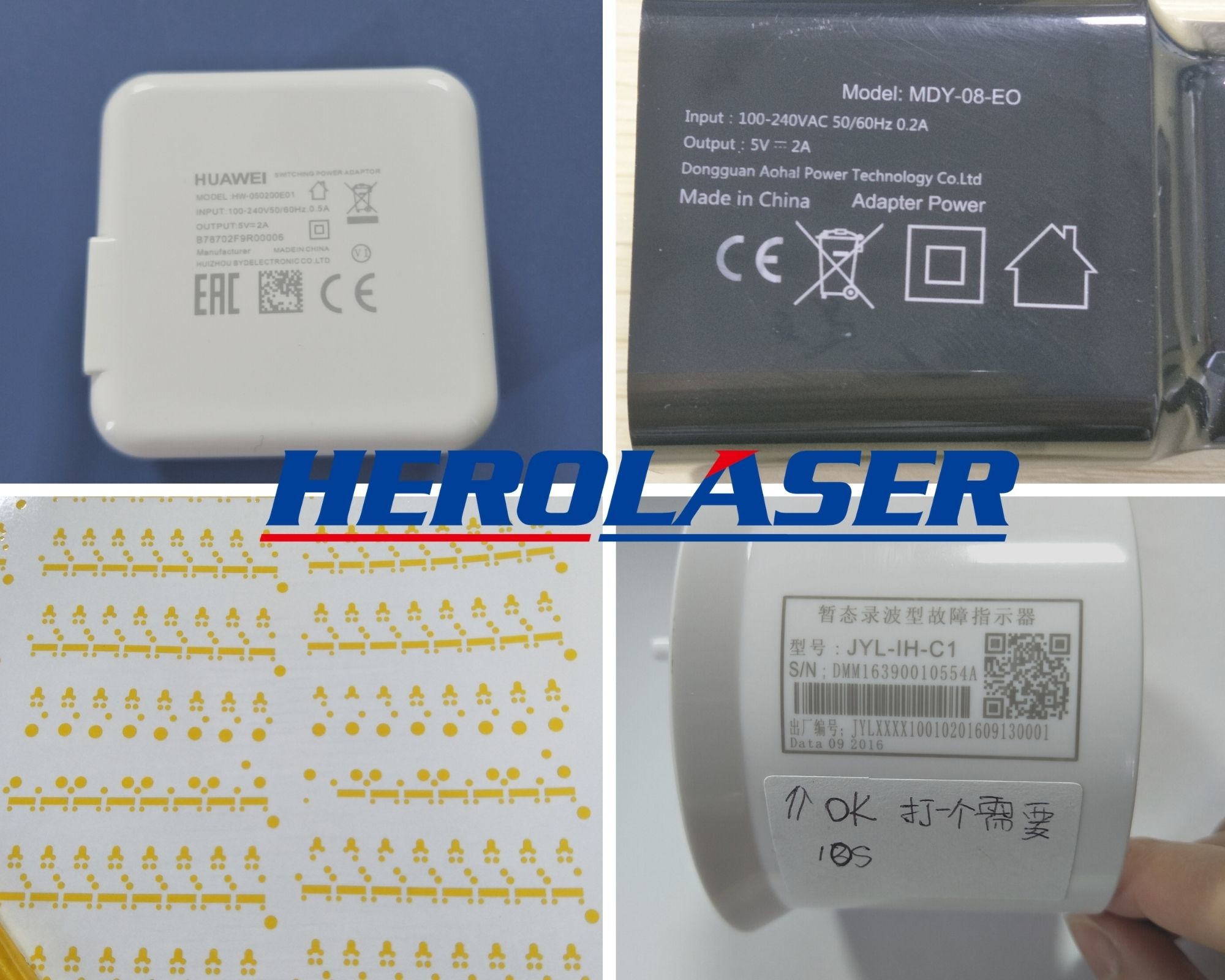

Marking samples for reference:


Air Cooled AC 220V 355nm UV Laser Engraver With High Beam Quality 0


1. How is the payment?
  • 30% deposit before production and the balance 70% before shipment
2. How is the delivery and shipment?
  • Ship in 7 days after 100% payment;
  • Plywood box packaging
3. How will you guarantee aftersales services?
  • We offer two warranty for laser source, one year for whole machine and lifetime maintenance services.
  • Engineers available to service machinery overseas
  • Free technical training in our factory
  • Free sample can be sent to you
  • Professional technical team 24 hours online
4. How about your presales service?
  • Speeding offer within 8 hous quick response and free consulting.
  • Free sample marking or testing is avaiable
  • Progressing solution design to all clients, including distributors and end users.
