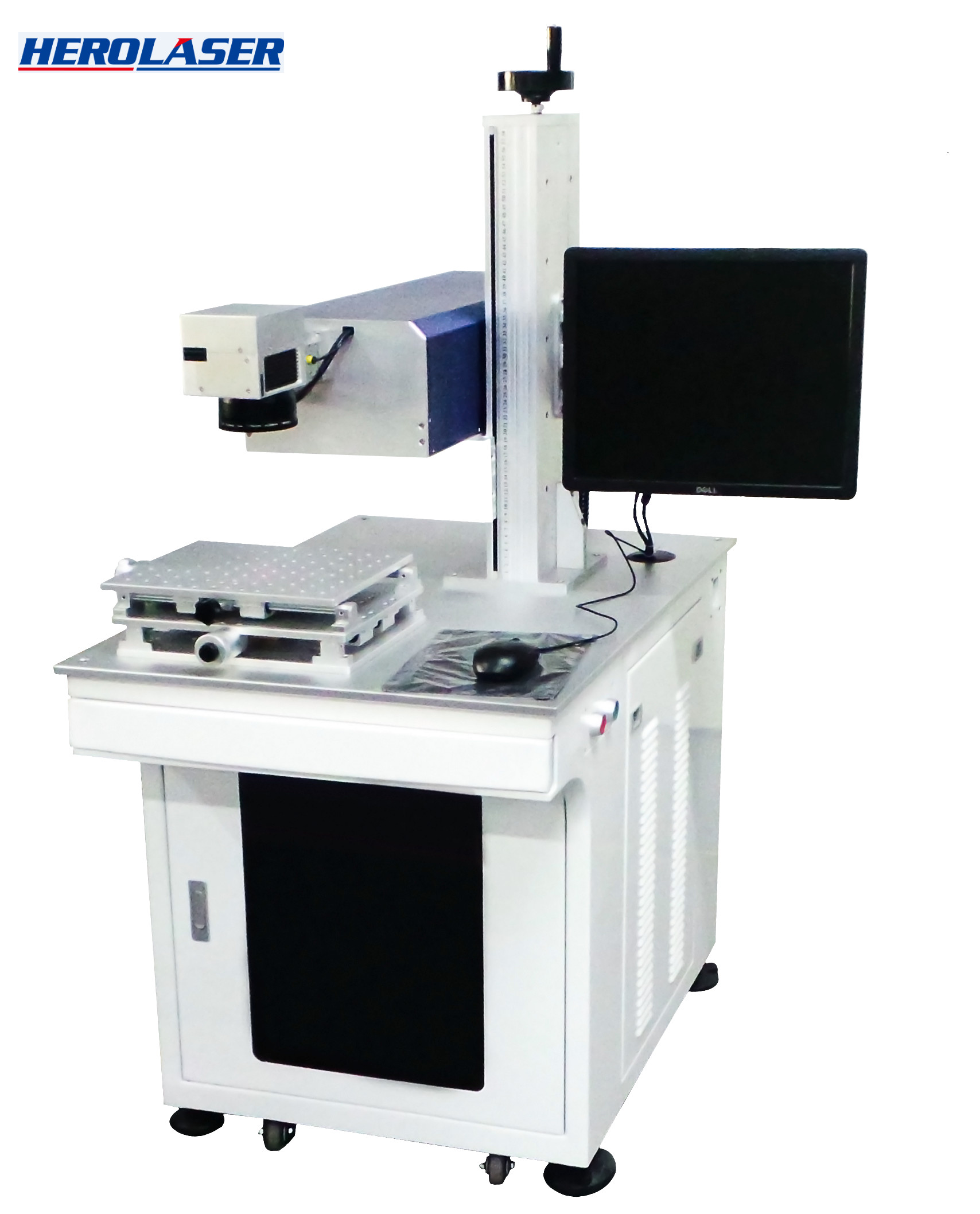

Non Toxic Sensitive 10W UV Laser Marking Machine , UV Laser Marking System
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Laser Marking | Condition | New |
|---|---|---|---|
| Cooling Mode | Air Cooling | Applicable Material | Metal And Nonmetal Plastic |
| Laser Source | Germany IPG Technology Laser Source | Control Software | JCZ |
| After-sales Service | Online Support, Field Installation, Commissioning And Training | Laser Wavelength | 355nm |
| High Light | Non Toxic sensitive UV Laser Marking Machine,10W UV Laser Marking Machine,10W uv laser marking system |
||
Product Description
UV Laser Maker for High-contrast Marks on Highly Sensitive Products
Product introduction:
UV marking lasers use ultraviolet wavelengths to achieve high contrast labeling on sensitive materials. Because the surface of the material has undergone a photochemical change, very little heat is transferred to the material and it remains almost intact and unchanged. Products made of highly sensitive or unique materials, such as aircraft cables, translucent or colored tubes for a variety of industries, medical plastics for invasive applications, flame retardant plastics for electronic casings and even glass, can be safely identified with high resolution and contrast. Through photochemical effects, UV creates a contrast and permanent color change on the surface of the processed product, rather than destroying or replacing the material, leaving the product itself intact. Laser imprinting can now be done on silicone or white polyamide, and glass can be left with filaments and bright laser imprinting without breaking.
Features:
- Safety and integrity of sensitive and critical materials
- Ultraviolet laser labeling medical plastics for hygiene and sterility
- Filigree and high contrast marker with high resolution
- Plastics are solvent free and additive free
- Economic and low maintenance with effective air cooling and durable optical components
Technical details:
| Model | ML-MU-KF-00-HW10 |
| Average output power | ≤10W |
| Wavelength | 355 nm |
| Frequency | 1-100khZ |
| Minimum linear width | ≤0.01mm |
| Maximum linear speed | ≤7000mm/s |
| Electrical requirements | AC 220V±15% 50/60Hz |
| Cooling system | Air cooled |
| Environment | 10-40 ℃ |
| Applicable certifications | CE and FDA |
Application:
- UV Laser Marking Machine is mainly used in precision processing of high-end market, handicrafts, medicine, cosmetics, video and other polymer, materials packaging bottle, the mark is very precise and stands wear, better than ink printing and pollution-free;
- The flexible PCB marking and scribing, silicon and wafer micro hole, blind hole processing;
- LCD glass QR code marking, glass wares punching, metal surface coating marking, plastic buttons, communications equipment, gifts and so on.
Marking samples for reference:
FAQ
1. How is the payment?
- 30% deposit before production and the balance 70% before shipment
2. How is the delivery and shipment?
- Ship in 7 days after 100% payment;
- Plywood box packaging
3. How will you guarantee aftersales services?
- We offer two warranty for laser source, one year for whole machine and lifetime maintenance services.
- Engineers available to service machinery overseas
- Free technical training in our factory
- Free sample can be sent to you
- Professional technical team 24 hours online
4. How about your presales service?
- Speeding offer within 8 hous quick response and free consulting.
- Free sample marking or testing is avaiable
- Progressing solution design to all clients, including distributors and end users.
