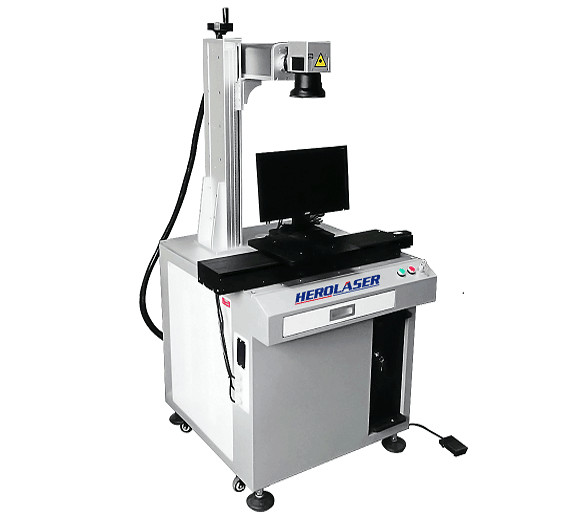

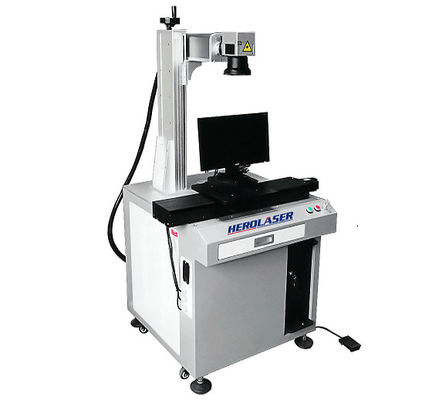

Herolaser Integrated Structure 50W Laser Printing Machine On Metal

Place of Origin China
Brand Name Herolaser
Certification CE, FDA
Model Number ML-MF-W50
Minimum Order Quantity 1 SET
Price Negotiable
Packaging Details 1110mm x 860mm x 1520mm in wooden box
Delivery Time 12 days
Payment Terms T/T, Western Union
Supply Ability 600 sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Condition New Laser Power 50W
After-sales Service Provided Online Technical Support And Engineers Available To Service Machinery Overseas Application Auto Parts, Electronic Communications, Metal Jewelry, Chip Manufacturing, Light Industrial Products, Medicine And Food Packaging Industries Etc.
Laser Wavelength 1064nm Laser Source IPG
Repeating Frequency 20-200KHz Beam Quality ㎡<2
High Light

Herolaser laser printing machine on metal

,

50W laser printing machine on metal

,

50W small fiber laser engraver

Leave a Message
Product Description

Fiber Laser Marking Machine For Auto parts, Electronic Communications, Metal jewelry, 50w

Model Introduction:
Fiber lasers with integrated overall structure, no optical pollution, low power coupling loss, has many unique advantages in laser marking applications.

Model Features:
1, Our product adopts  Germany IPG, Britain SPI and other foreign advanced fiber laser source, with its high beam quality is much better than those traditional solid-state lasers, it has focused spot diameter less than 20um. divergence angle is 1/4 of Diode-pumped laser.  most suitable for precise and its excellent marking.

2,Low cost:
The highest electrical/optical conversion rate is up to 30%, and the whole power consumption is less than 500w, this is 1/10 of lamp-pumped solid-state laser marking machine , save much of energy cost.

3,Maintenance-free: our laser source actually no need any maintenance, it's hard for broken,  and no need adjust or clean the lens.

4,Long term service life of the laser source: Fiber laser marking machine uses a laser diode as the pump source, the average service time can up to 100,000 hours.

5,High marking speed: The marking speed is over 3 times of first and second generation of laser markers.

Application:

It is highly applicated  for the industry of auto parts, electronic communications, metal jewelry, chip manufacturing, light industrial products, medicine and food packaging industries etc. It is necessary equipment to improve efficiency,save energy and pursue quality.

Technical specifications:


Model ML-MF-W50
Laser Power Pulsed 50W
Laser wavelength 1064nm
Repeating Frequency 20-200KHZ
Beam Quality <2
Marking Range 300mm x 300mm
Marking Depth 0.1-3 mm(depend on material and marking time)
Marking Speed ≤7000mm/s
Min.line Width 0.01mm
Min.Character 0.15mm
Repeatability Accuracy ±0.002
Power Supply 90-260V±10% / 50-60Hz
Marking Speed ≤7000mm/s
Weight <22KG
Operating System WI98/WIN2000/WIN XP
Cooling System Built-in air cooling
Control Interface Standard USB
File Format All character styles from character store of OS
Laser Type Pulse


Machine configuration:



Laser source 20W IPG made in Germany
Scanning head Galvanometer brand: OUYAAUTO or Scanlab head from Germany. Field mirror: Nanjing Wavelength
Focal lens (Field mirror) Wavelength
Software EZCAD
Computer Standard computer, Win 7(17 inch Dell)
Control card JCZ Genuine card
Plug USA Standard
Foot pedal One pedal
Body bracket Sheet metal

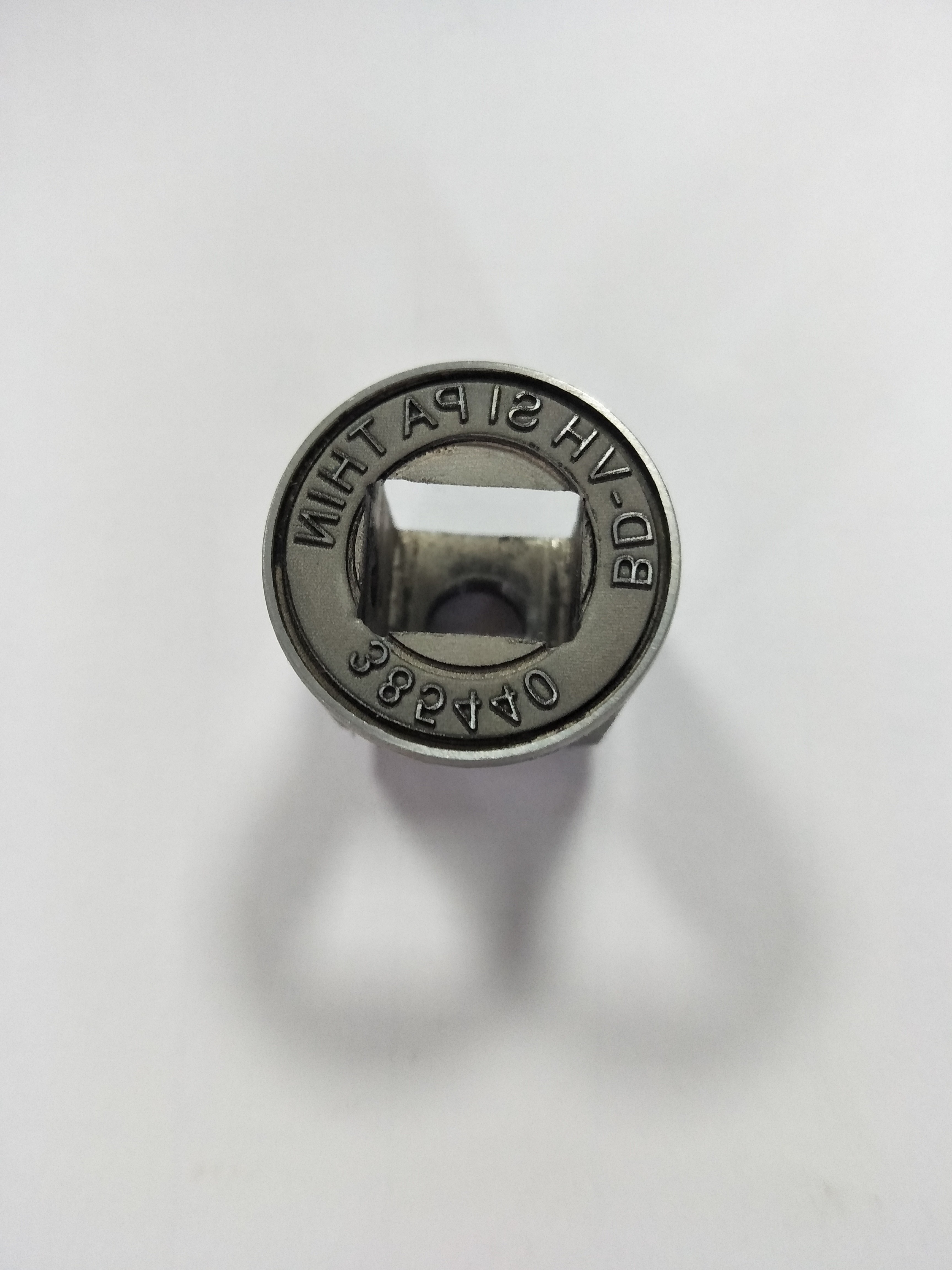

Marking / engraving samples for reference:


Herolaser Integrated Structure 50W Laser Printing Machine On Metal 0Herolaser Integrated Structure 50W Laser Printing Machine On Metal 1Herolaser Integrated Structure 50W Laser Printing Machine On Metal 2Herolaser Integrated Structure 50W Laser Printing Machine On Metal 3
