Herolaser 20 Watt Fiber Laser

Place of Origin China
Brand Name Herolaser
Certification CE, FDA
Model Number ML-MF-FT-BX-HW20
Minimum Order Quantity 1 SET
Price Negotiable
Packaging Details 1110mm x 860mm x 1520mm in wood box
Delivery Time 12 days
Payment Terms T/T, Western Union
Supply Ability 600 sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Laser Power 20W Beam Quality (㎡) <2
Laser Wavelength (μm) 1.6 Pulsed Frequency (Khz) 20~100
Cooling Method Built-in Air Forced Product Name Top Qualtiy 50w Fiber Laser Marking Machine
Power Supply AC220V 50/60Hz Supported Graphic Format PCX, BMP, PLT, DXF
High Light

MAX 20 watt fiber laser

,

Herolaser 20 watt fiber laser

,

20 watt desktop fiber laser engraver

Leave a Message
Product Description

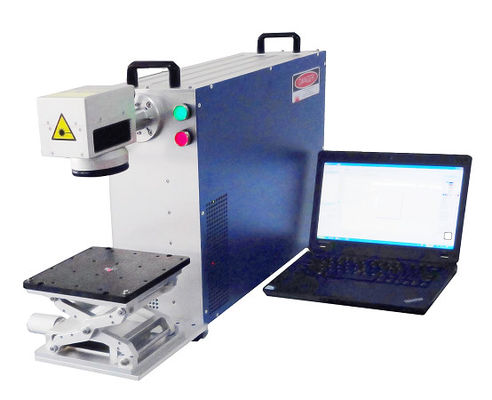

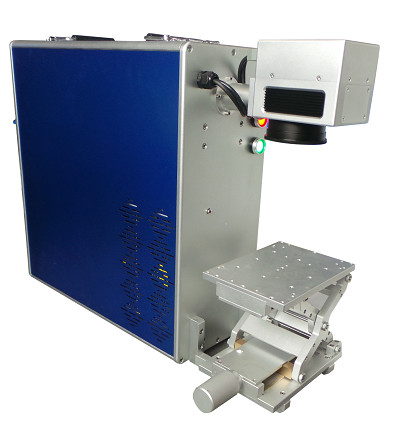

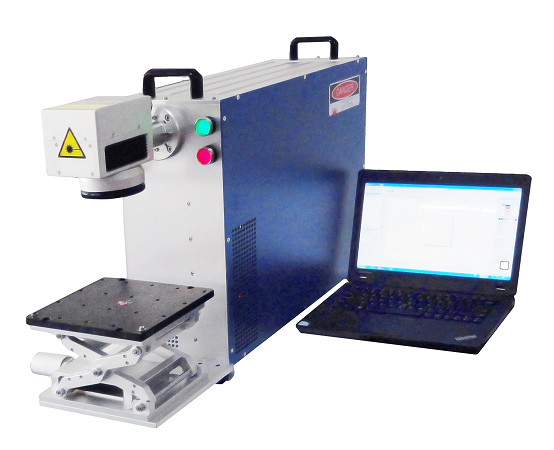

20W Portable Fiber Laser Marking Machine 220V Metal Laser Engraver



Product introdution:



Portable fiber laser marking machine adopts the original imported fiber laser, high-speed scanning vibrator system, stable output power, good optical mode, excellent beam quality, fast marking speed, good effect, high efficiency, can fully meet the needs of customers for mass production. Simple operation, no consumables, low operating cost, can fully meet the needs of industrial continuous work, its unique light weight, small size and easy to carry and other advantages, especially suitable for shops, factories and other places for plastic and metal marking, such as jewelry marking, arts and crafts gift marking.



Characteristics and advantages:



  1. Totally enclosed rabbit maintain fixed laser optical system;
  2. Good quality of light, power stability, long service life;
  3. Marking speed faster and more truly;
  4. Spport red light red light positioning and fast prime function;.
  5. USB control card.
  6. Supports TrueType fonts, single font, one-dimensional bar code and two-dimensional bar code, compatible with commonly used bitmap format (BMP, JPG, ti, etc) and vector graphics (PLT, DXF, a, etc.);
  7. Marking the layer parameters can be designed.
  8. Light weight small size easy to carry, can be used under various;
  9. Vibration mirror can according to need to rotate 90 degrees, the side marking (suitable for assembly line).



Technical details:



Model ML-MF-FT-BX-HW20
Laser wavelength (μm) 1.6
Beam quality (㎡) <2
Laser power (w) 20
Pulsed frequency (Khz) 20~100
Cooling method Built-in air forced
Marking range (mm*mm) 70*70/110*110/175*175
Focal distance 100/163/254
Laser Source MAX
Service Life >100,000 Hours
Work distance 103/188/288
Min linewidth 0.02
Min character 0.15
Marking speed (m/s) 0~7000
Supported graphic format PCX, BMP, PLT, DXF
Power supply 220±10%
Frequency (Hz) 50/60
Dimension (mm*mm*mm) 880*760*1400
Net weight (kg) 125
Working temperature (℃) 10-30
Working humidity 5-85% (no condensation)
Power consumption (kw) 1



Application materials:



Metal marking, plastic material marking, dark marking.



Application industry:



Cell phone buttons, plastic buttons light, electronic components, integrated circuit (IC), electrical appliances, communication products, tools accessories, knives, glasses watches and clocks, jewelry, auto parts, bags buckle, cooking utensils, stainless steel products, sanitary and marking, etc.



Marking samples for reference:

Herolaser 20 Watt Fiber Laser 0

FAQ

1. How is the payment?
  • 30% deposit before production and the balance 70% before shipment
2. How is the delivery and shipment?
  • Ship in 7 days after 100% payment;
  • Plywood box packaging
3. How will you guarantee aftersales services?
  • We offer two warranty for laser source, one year for whole machine and lifetime maintenance services.
  • Engineers available to service machinery overseas
  • Free technical training in our factory
  • Free sample can be sent to you
  • Professional technical team 24 hours online
4. How about your presales service?
  • Speeding offer within 8 hours quick response and free consulting.
  • Free sample marking or testing is available
  • Progressing solution design to all clients, including distributors and end users.



Herolaser 20 Watt Fiber Laser 1
