3D Fiber Laser Marking Machine
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Power Supply | AC220V 50/60Hz | Supported Graphic Format | PCX, BMP, PLT, DXF |
|---|---|---|---|
| Dimension | 600*935*1600 Mm | Net Weight | 120 Kg |
| Working Temperature | 10-30 ℃ | Working Humidity | 5-85% |
| Power Consumption | 1KW | Applicable Material | Metal Plastic,Aluminum,Cooper,iron,Stainless Steel |
| High Light | AC220V Fiber Laser Marking Machine,3D Fiber Laser Marking Machine,AC220V 3d fiber laser |
||
Product Description

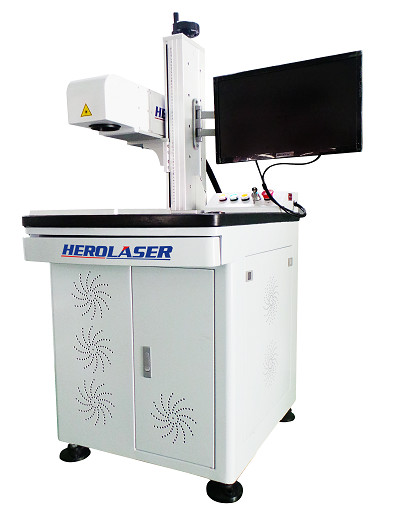

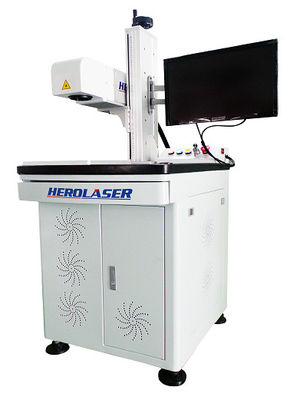

3D Dynamic Focusing Fiber Laser Marking Machine 3D Curve Surface for Metals
Product introdution:
Three-dimensional surface of three-dimensional laser marking: have three-dimensional surface of three-dimensional laser marking function, can in 60 mm height range is focused on the fine spot, make laser marking effect is consistent;Competent for large-format laser marking: 60 mm height within the scope of "capricious" marking, and the light spot fine, consistent distance laser marking effect;·. The triaxial dynamic focusing technology: digital triaxial dynamic focusing technology, arbitrary zoom, real-time control, with high performance fiber laser, and thick marble table, make the whole machine performance is stable, marking speed and marking effect is good.
Characteristics and advantages:
- With stereo 3 d surfaces marking function, guarantee within 0 ~ 60 mm highly focused spot fine, marking effect is consistent;
- With a large-format marking function, marking width 400 mmx400mm, breaking the traditional optical fiber marking machine marking wide limits;
- The first digital triaxial dynamic focusing technology, marking speed, high real-time performance, zoom control focus light evenly;
- A powerful software that can be introduced into the mainstream of 3 d design software output graphics, and can perform a simple 3 d graphics editor, have 2 d graphics turned 3 d function, the operation is simple and convenient.
- Adopts the modular design concept, can be and mainstream of fiber laser, product adaptability is strong;
- Use the marble work platform, good shock resistance and stress resistance, good flatness, high stability;
Technical details:
| Model | ML-MF-TY-02-HW10 |
| Laser wavelength (μm) | 1.6 |
| Beam quality (㎡) | ＜2 |
| Laser power (w) | 10/20/30/50 (optional) |
| Power supply | AC220±10% |
| Cooling method | Built-in air forced |
| Marking range (mm*mm) | Max 400*400 |
| Service Life | >100,000 Hours |
| Min linewidth | 0.02 |
| Min character | 0.15 |
| Marking speed (m/s) | 0~7000 |
| Supported graphic format | PCX, BMP, PLT, DXF |
| Frequency (Hz) | 50/60 |
| Dimension (mm*mm*mm) | 600*935*1600 |
| Net weight (kg) | 120 |
| Working temperature (℃) | 10-30 |
| Working humidity | 5-85% (no condensation) |
| Power consumption (w) | 1000 |
Application materials:
Stainless steel, aluminum, magnesium alloy, zinc alloy, copper, nickel plating, galvanized, alumina, plastics, cast iron, etc.
Application industry:
3 D laser marking machine is applied to handicrafts, watches and clocks jewelry, electronics, medical equipment, traffic equipment, lighting advertising lighting, food packaging materials, tobacco, leather, auto parts, tool accessories, plastic etc metal non-metal laser marking 3 D surfaces.

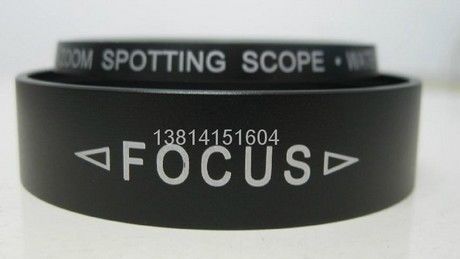

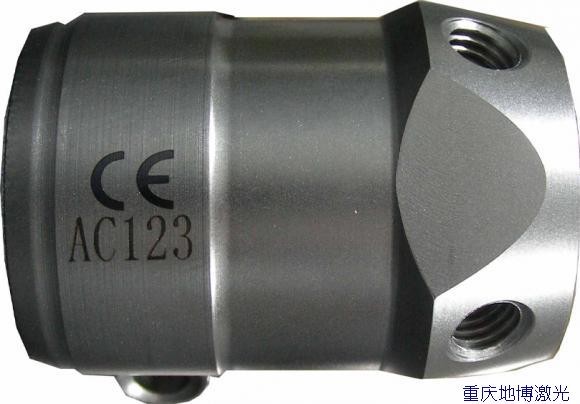

Marking samples for reference:
FAQ
1. How is the payment?
- 30% deposit before production and the balance 70% before shipment
2. How is the delivery and shipment?
- Ship in 7 days after 100% payment;
- Plywood box packaging
3. How will you guarantee aftersales services?
- We offer two warranty for laser source, one year for whole machine and lifetime maintenance services.
- Engineers available to service machinery overseas
- Free technical training in our factory
- Free sample can be sent to you
- Professional technical team 24 hours online
4. How about your presales service?
- Speeding offer within 8 hours quick response and free consulting.
- Free sample marking or testing is available
- Progressing solution design to all clients, including distributors and end users.
