MOPA Fiber Laser Marking Machine

Place of Origin China
Brand Name Herolaser
Certification CE, FDA
Model Number ML-ML-TY-02-HW50
Minimum Order Quantity 1 SET
Price Negotiable
Packaging Details 1110mm x 860mm x 1520mm in wood box
Delivery Time 12 days
Payment Terms T/T, Western Union
Supply Ability 600 sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Laser Power 20 Watt 30 Watt 50watt Laser Wavelength 10.64 Um
Working Accuracy 0.01 Mm Laser Type Fiber Laser
Product Name Fiber Laser Marking Machine For Metal Marking Depth 0~0.5 Mm
Laser Source JPT After-sales Service Provided Professional Technical Team 24 Hours Online
High Light

0.01 mm Fiber Laser Marking Machine

,

MOPA Fiber Laser Marking Machine

,

MOPA desktop fiber laser cutter

Leave a Message
Product Description

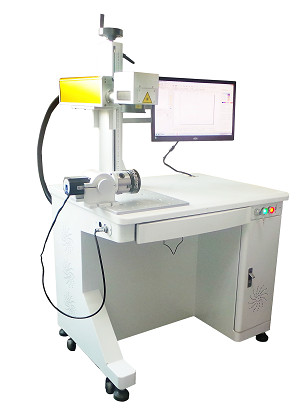

Industrial MOPA Fiber Laser Marking Machine Color Marking and Engraving on Metal



Product introdution:



MOPA Fiber Laser Marking Machine is a standalone, turnkey laser marking, engraving and cutting system.
The state-of-the-art 20W / 50W MOPA fiber laser produces high quality laser beams for marking and engraving a variety of materials. 50W fiber lasers have been shown to significantly increase the speed of black marking on aluminum and stainless steel anodes. The color marking of stainless steel and titanium materials, the marking quality of sensitive and key non-metallic materials is good, and the pulse width and frequency are varied.



Characteristics of fiber laser marking machine:



  • - The laser generator life of MOPA fiber laser marking machine can reach about 100,000 hours
  • - Low operating cost, almost maintenance-free laser system, reducing resource consumption
  • - Support CAD file (DXF), PLT/BMP/JPG/AI format
  • - MoPA fiber laser marking machine can mark 1D, 2D bar code, UDI (GS1 code), serial number, batch number, LOGO, company information
  • - Laser marking software can be customized to meet the unique needs of customers
  • -- Laser marking software supports serial port and TCP/IP communication between client and server



Technical details:



Description Parameter
Marking area 110*110mm(option:150*150mm,200*200mm,300*300mm)
Laser power 10W
Marking speed ≤8000mm/S
Max.Marking Depth ≤0.4mm
Laser Wavelength 1064nm
Marking lines 1-10 marking lines(in the marking area)
Minimum line width 0.01mm
Minimum character 0.15mm
Resolution ratio 0.01mm
Repeatability accuracy ±0.002mm
Operating temperature 5-40℃
Unit Power ≤500W
Graphic format supported BMP,JGP,PNG,DXF, etc.
Supply Voltage 220V/50HZ/10A




Application Industries:

  • - Industrial machinery laser marking, watches laser marking
  • - Electronic and communication products laser marking
  • - Aerospace devices laser marking, various automotive parts laser marking
  • - Home appliances laser marking, hardware tools laser marking, molds laser marking and engraving
  • - Wire and cable laser marking, food packaging laser marking, jewelry laser marking and engraving
  • - Laser fly marking of tobacco and military industry design

Application materials:

  • - Iron, Copper, Ceramic, Magnesium, Aluminum
  • - Gold, Silver, Titanium, Platinum, Stainless Steel
  • - Titanium alloy, Aluminum alloy, any high hardness alloys
  • - Oxide, Electroplating, coating, ABS, Epoxy Resin, Ink, Engineering, Plastic, etc.

Marking samples for reference:

MOPA Fiber Laser Marking Machine 0

FAQ

1. How is the payment?
  • 30% deposit before production and the balance 70% before shipment
2. How is the delivery and shipment?
  • Ship in 7 days after 100% payment;
  • Plywood box packaging
3. How will you guarantee aftersales services?
  • We offer two warranty for laser source, one year for whole machine and lifetime maintenance services.
  • Engineers available to service machinery overseas
  • Free technical training in our factory
  • Free sample can be sent to you
  • Professional technical team 24 hours online
4. How about your presales service?
  • Speeding offer within 8 hours quick response and free consulting.
  • Free sample marking or testing is available
  • Progressing solution design to all clients, including distributors and end users.



MOPA Fiber Laser Marking Machine 1
