ABB YASKAWA Robot Arm 3000W IPG Laser Welding Machine
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Laser Source Brand | IPG | Laser Head Brand | Herolaser |
|---|---|---|---|
| Wavelength | 1070nm | Power Supply | 380VAC ± 10% / 50HZ |
| Dimensional | 1200 X 1300 X 1400mm | Laser Type | Continuous Laser |
| After-sales Services | Online Support, Video Technical Support | Warranty | 24 Months |
| High Light | YASKAWA Robot Arm Laser Welding Machine,3000W Laser Welding Machine,IPG Laser Robot Arm Welding Machine |
||
Product Description

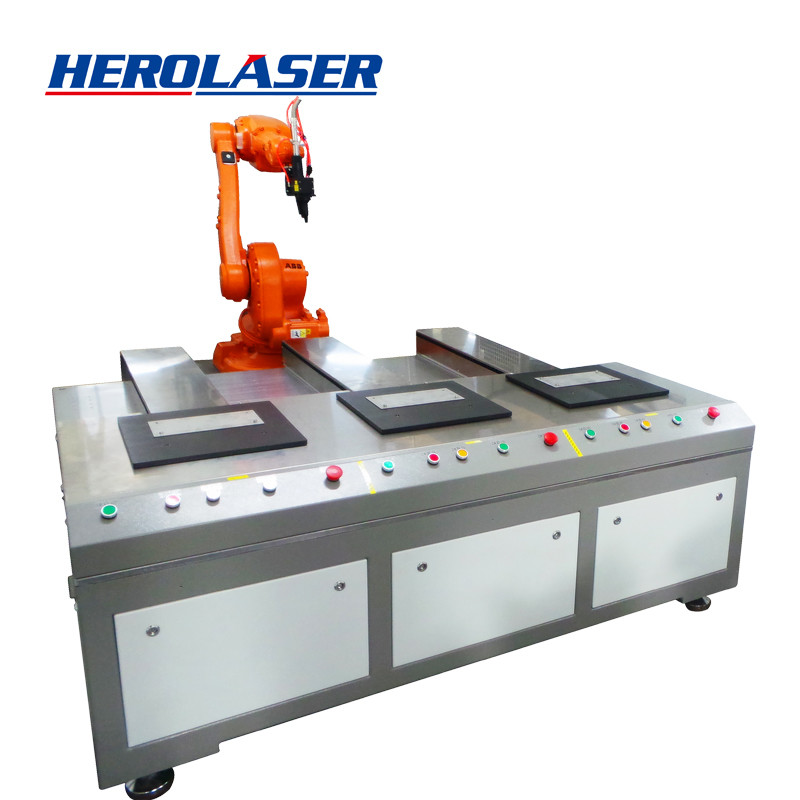

Robot Laser Welding Machine with ABB YASKAWA Robot Arm
Product introduction:
The product is mainly composed of fiber laser, cooling system, robot system, power control system, double station feeding system and so on. With safety protection performance; The whole system has a very perfect anti-static treatment system. The equipment is easy to use, operate and maintain, beautiful in appearance and does not pollute the environment.
It is characterized by narrow weld, large length-diameter ratio, small deformation, good weld surface forming and good material adaptability.
The equipment is easy to operate, electrical safety, personal safety and health in accordance with the European and Chinese standards and requirements.
Features and advantages:
- The fiber laser spot is very small, the heat affected zone is small, the deformation is small, the welding speed is super-fast.
- Fiber laser service life of 100,000 hours, complete no consumables, daily maintenance is more convenient.
- 30% of the energy provided by the power supply is converted into laser energy, making the equipment more energy saving and electricity saving.
- CCD LCD monitoring and observation system, can clearly observe the product positioning and welding effect according to the red light indication.
- Fiber laser multi-mode welding, according to the requirements of the product can be freely converted pulse and continuous mode.
- It can be difficult to approach the precise parts, the implementation of flexible transmission of non-contact welding, has a great flexibility, adapt to a variety of complex products seam welding, welding, butt welding, stack welding, etc.
Product parameters:
| Model | ML-WF-4D | ||
| Average laser power | 1000w | 1500w | 3000w |
| Max laser power | 1000w | 1500w | 3000w |
|
Max energy of single pulse |
85J |
110J |
150J |
| Laser wavelength | 1070nm | ||
| Laser weld depth | 0-3 mm(up to material) | ||
| Laser welding frequency | 1HZ-5000Hz | ||
| Spot size range | 0.3-2mm | ||
| Power Supply | 380VAC ± 10% / 50HZ | ||
| Power Consumption | 5KW | 6KW | 8KW |
| Dimensional | 1200 x 1300 x 1400mm | ||
| Weight | 220 | 250 | 270 |
| Cooling Way | Water cooling | ||
| Laser Type | Continuous laser | ||
| IPG Laser | IPG made in Germany | ||
Main Configuration:
| Item | Spec. | Qty |
| Robot |
ABB1600 repeated position accuracy 0.05mm |
1 set |
| Fiber laser source | IPG | 1 set |
| Wobble welding head | Herolaser | 1 set |
| Control cabinet | Herolaser | 1 set |
| Software | Herolaser | 1 set |
| CCD observation system | Welding purpose | 1 set |
| PLC | FX-3U-48MT (MITSUBISHI) | 1 set |
Applicable Industry:
Mobile communication;Electronic component;Medical instrument;Auto components;Mould repairing.
Applicable Materials:
Materials that can be welded are extensive: cold work alloy steel, hot work alloy steel, nickel tool steel, steel alloy, high tenacity aluminum alloy, etc. Other metals like gold, silver, brass, aluminum-magnesium alloy, titanium, and platinum are also applicable.

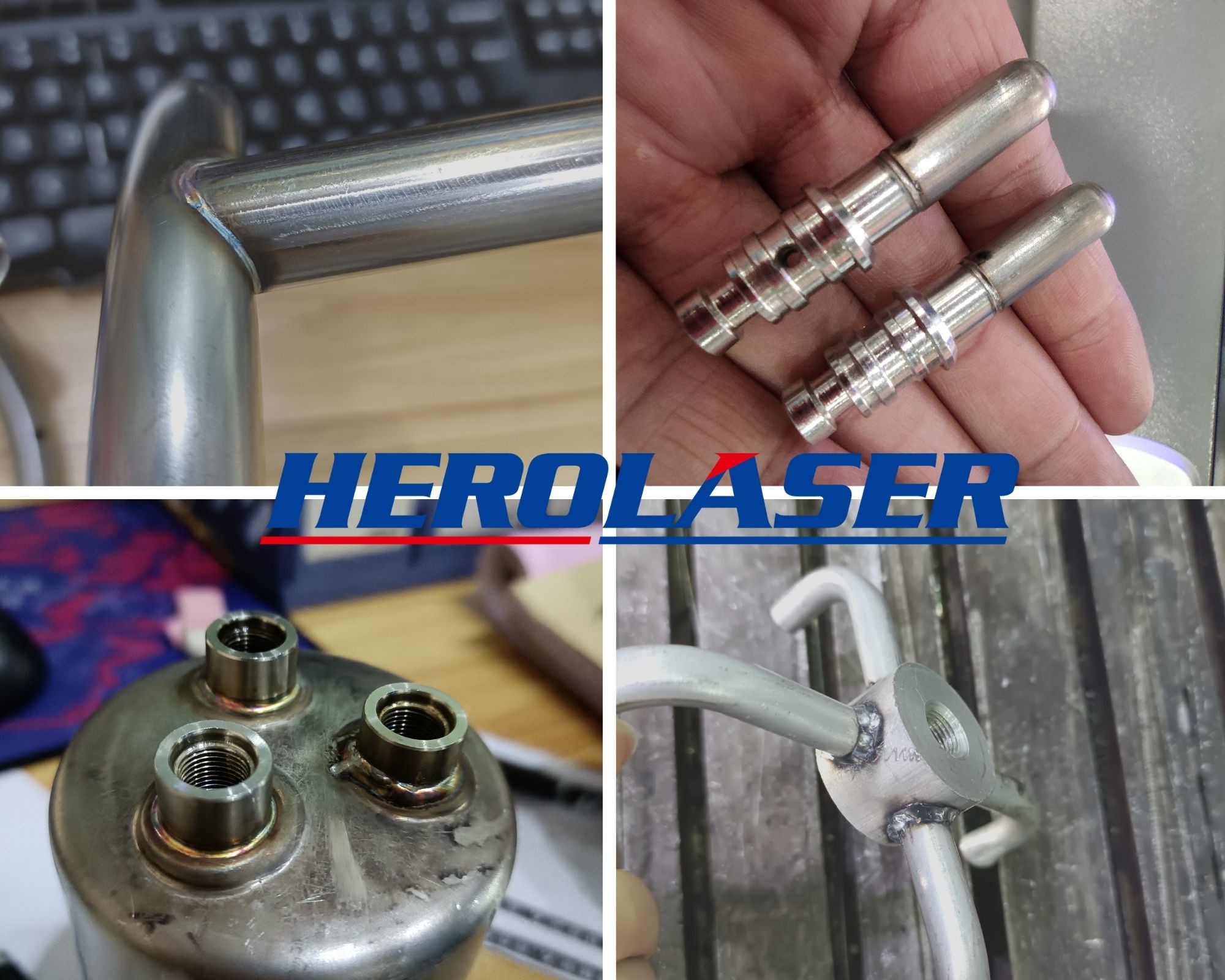

Samples for reference:
F&Q:
1. How is the payment?
- 30% deposit before production and the balance 70% before shipment
2. How is the delivery and shipment?
- Ship in 7 days after 100% payment;
- Plywood box packaging
3. How will you guarantee aftersales services?
- We offer two warranty for laser source, one year for whole machine and lifetime maintenance services.
- Engineers available to service machinery overseas
- Free technical training in our factory
- Free sample can be sent to you
- Professional technical team 24 hours online
4. How about your presales service?
- Speeding offer within 8 hours quick response and free consulting.
- Free sample welding or testing is available
- Progressing solution design to all clients, including distributors and end users.
