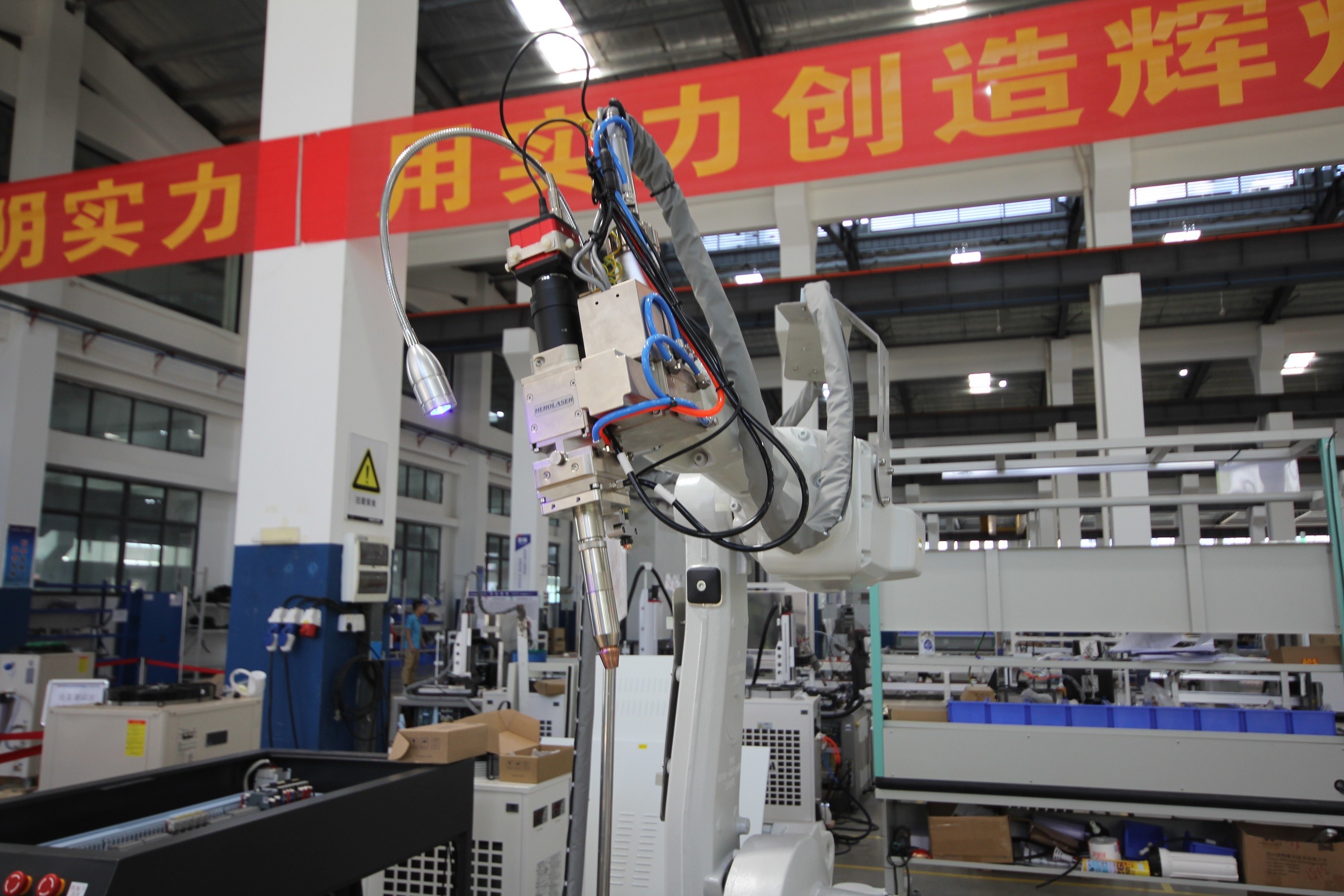

CCD Vision IPG Laser Robotic Arm Welder With With Wobble Welding Head

Place of Origin China
Brand Name Herolaser
Certification CE, FDA
Model Number ML-WF-4D-3000W
Minimum Order Quantity 1 SET
Price Negotiable
Packaging Details Wooden case package
Delivery Time 15-20 days
Payment Terms T/T, Western Union
Supply Ability 50 sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Laser Source Brand IPG/MAX/RECI Laser Head Brand Herolaser
Wavelength 1070nm Power Supply 380VAC ± 10% / 50HZ
Dimensional 1200 X 1300 X 1400mm Laser Type Continuous Laser
After-sales Services Online Support, Video Technical Support Warranty 24 Months
High Light

CCD Vision Robotic Arm Welder

,

IPG Laser Robotic Arm Welder

,

CCD Vision Robotic Arm Welding Machine

Leave a Message
Product Description

Wobble Welding Robot Laser Welding Machine with Automatic Wire Feeding


Product introduction:


The robot laser welding system consists of fiber laser, laser power supply, control system, laser indicating and positioning system, motion system, rotation system, swing laser welding joint, cooling system and so on. Laser generator adopts imported fiber laser, laser pulse waveform can be edited arbitrarily, high stability of energy output.

Laser welding joints adopt Herolaser laser welding joints independently developed, with high welding stability and flexibility, can be 360 degrees of rotation and swing welding.

The cooling system of fiber laser welding machine consists of temperature measuring device, water circulation, radiator and deionized resin. The temperature measuring device detects the water temperature in the water tank in real time to judge whether the water temperature is too high. If the temperature exceeds the upper limit, the system will automatically shut down the laser to avoid damaging the laser. After the machine is opened, the water cycle and the radiator form heat exchange with the outside world, and quickly take away the heat generated when the laser works, to ensure the normal operation of the laser. The integrated design of cooling system and whole machine makes the system more concise and occupies a small area.



Product parameters:

Laser power
1500W
2000W
3000W
Laser wavelength
1080±10nm
Robot
Six-axis welding robot
Maximum load on wrist
12KG
Repositioning accuracy
±0.03mm
Range of motion
Lower arm
J1
340º/370º
J2
235º
J3
455º
Upper arm
J4
380º
J5
380º
J6
900º
Max speed
Lower arm
J1
260º/s
J2
240º/s
J3
260º/s
Upper arm
J4
430º/s
J5
450º/s
J6
720º/s
Thickness of welding material
≤4mm
≤6mm
≤8mm
Welding gap requirements
≤0.3mm
Voltage
380V±10%
Total power
≤8kw
≤10kw
≤12kw
Gross weight
200KG




Main Configuration:


Laser source IPG/MAX/RECI brand
Control System Android system
Computer Standard computer,win 7
Observing System CCD visual
Rotary Optional





Welding software: Android System or DSP1.0



CCD Vision IPG Laser Robotic Arm Welder With With Wobble Welding Head 0



CCD vision



CCD Vision IPG Laser Robotic Arm Welder With With Wobble Welding Head 1



Wobble welding head



CCD Vision IPG Laser Robotic Arm Welder With With Wobble Welding Head 2


Samples for reference:
CCD Vision IPG Laser Robotic Arm Welder With With Wobble Welding Head 3

F&Q:

1. How is the payment?
  • 30% deposit before production and the balance 70% before shipment
2. How is the delivery and shipment?
  • Ship in 7 days after 100% payment;
  • Plywood box packaging
3. How will you guarantee aftersales services?
  • We offer two warranty for laser source, one year for whole machine and lifetime maintenance services.
  • Engineers available to service machinery overseas
  • Free technical training in our factory
  • Free sample can be sent to you
  • Professional technical team 24 hours online
4. How about your presales service?
  • Speeding offer within 8 hours quick response and free consulting.
  • Free sample welding or testing is available
  • Progressing solution design to all clients, including distributors and end users.

CCD Vision IPG Laser Robotic Arm Welder With With Wobble Welding Head 4
