60W CO2 High Precision Laser Cutter 500x500mm with Automatic Sensing

  • 60W CO2 High Precision Laser Cutter 500x500mm with Automatic Sensing
  • 60W CO2 High Precision Laser Cutter 500x500mm with Automatic Sensing
  • 60W CO2 High Precision Laser Cutter 500x500mm with Automatic Sensing
  • 60W CO2 High Precision Laser Cutter 500x500mm with Automatic Sensing
  • 60W CO2 High Precision Laser Cutter 500x500mm with Automatic Sensing
Place of Origin China, Shenzhen
Brand Name Herolaser
Certification ISO9001, CE
Model Number ML-C4-QFL-BP-IW
Minimum Order Quantity 1 Set
Price $36000~45000/set
Packaging Details Wooden Case
Delivery Time 30-45 days
Payment Terms L/C, D/A, D/P, T/T
Supply Ability 25 sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
ML-C6-QFS 1070nm Max Speed Of X-axis ≤20m/min
Power Supply AC220V±5%50Hz Dimension Size 1880*1450*2100(mm)
Positioning Accuracy ≤±0.03mm Repeated Position Accuracy ≤±0.02mm
High Light

500x500mm High Precision Laser Cutter

,

60W CO2 High Precision Laser Cutter

,

ISO9001 CO2 Laser Cutter
Leave a Message
Product Description

60W CO2 High Precision Laser Cutter 500x500mm with Automatic Sensing 0





Optical performance parameter
Laser source wavelength
ML-C6-QF
Output power rate of the Laser source
1070nm
Effective cutting area
600mm*600mm
Cutting thickness (depend on Laser source power)
Carbon ≤8mm；Stainless Steel ≤4mm;
Aluminum Alloy ≤2mm; Copper ≤2mm;
Positioning accuracy
≤±0.03mm
Repeated position accuracy
≤±0.02mm
Max speed of X-axis
≤20m/min
Max speed of Y-axis
≤20m/min
Max speed of Z-axis
≤17m/min
Synthesis speed
≤20m/min
Max accelerated speed
0.3G
Bearing weight
300KG
Electric demand
AC220V±5%50Hz
Total Power consumption
6KW-25KW
Dimension
1880*1450*2100(mm)
Machine weight
About 1200KG
Support Graphical format
DXF



60w CO2 Precision Laser Cutting Machine 500x500mm


Laser cutting uses a high-power density laser beam to quickly heat the material to vaporization temperature and evaporate to form a hole, move the beam to form a slit, so that realize the materials cutting .

Based on this ,Herolaser small area high precision cutting machine also achieves high-precision cutting, no tool wear, low heat impact, fast speed, automatic positioning, automatic correction and other functions.

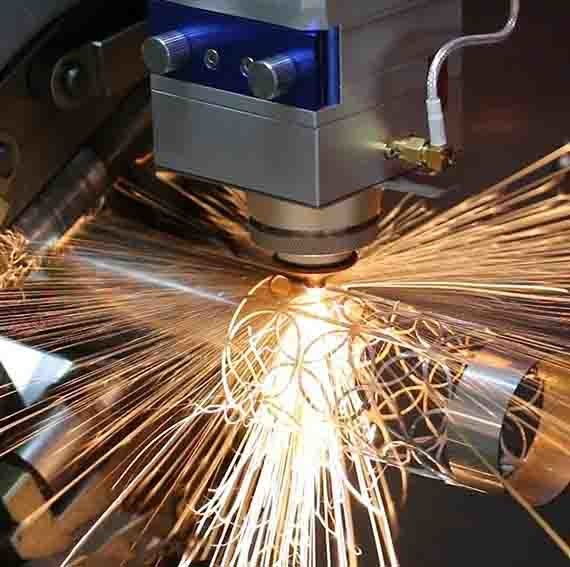

Automatic Sensing Laser Cutting Head

High idle running acceleration, fast cutting response, and corners are not easy to burn, and the cutting head will not contact the material surface to ensure the perfection of the workpiece.

60W CO2 High Precision Laser Cutter 500x500mm with Automatic Sensing 1
Characteristics
1. High Precision laser cutting machine
Stable, mature technology, high cutting efficiency, small footprint, flexible application with full-time cutting, high utilization
of the materials, strong expandability , and very flexible

2. High-precision host
Precision linear guide, high precision positioning, less wear; can keep high precision for a long time, easy and interchangeable

3. Laser cutting head
The laser cutting head is equipped with a sensitive bus-type capacitor, which can be adjusted to the ideal focal length to ensure
the cutting efficiency and cutting effect

4. Precise cutting
Realize the precise cutting and nearly without error and the cutting surface is smooth and flat
60W CO2 High Precision Laser Cutter 500x500mm with Automatic Sensing 2

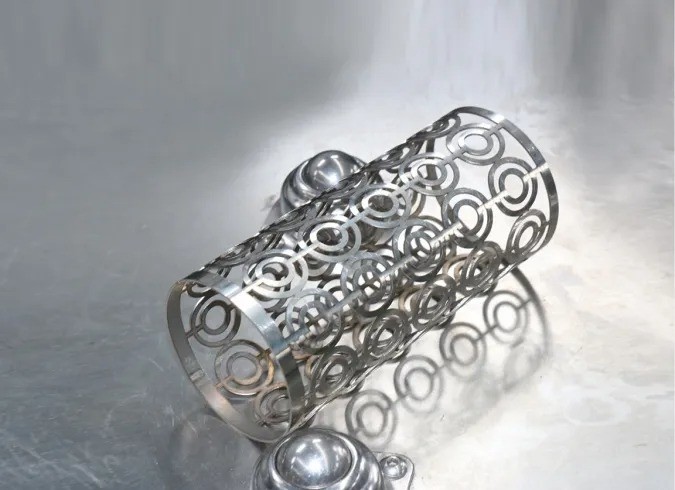

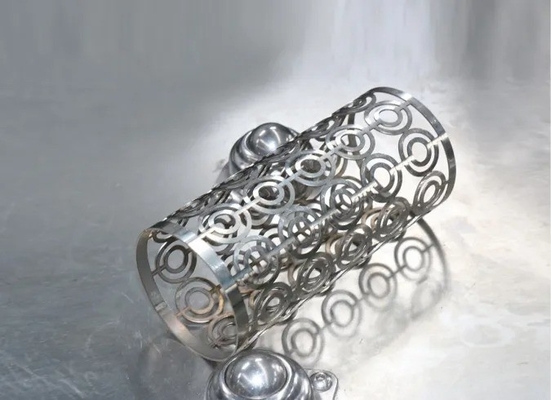

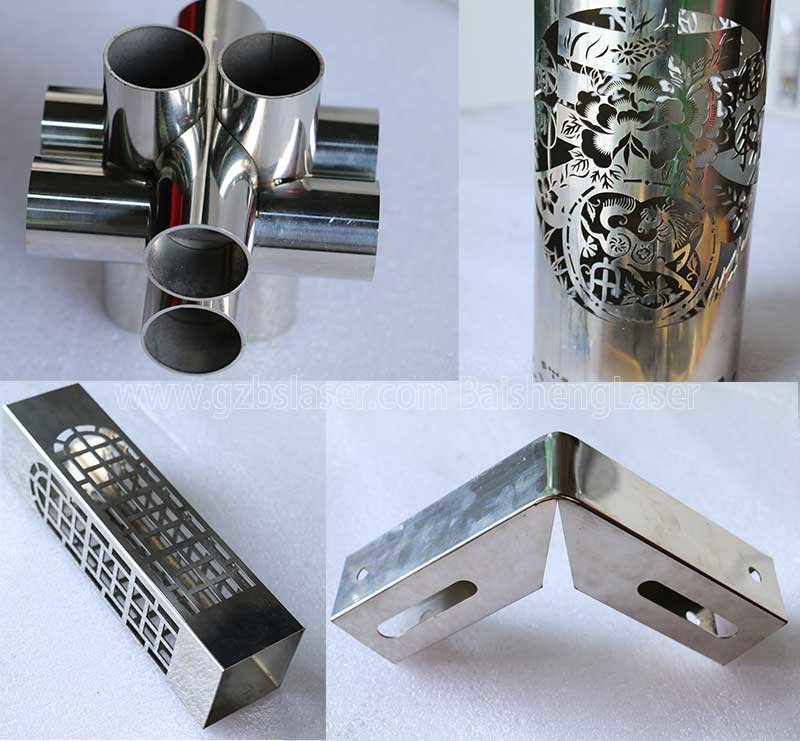

Sample Show
60W CO2 High Precision Laser Cutter 500x500mm with Automatic Sensing 3
Applicable Industry
60W CO2 High Precision Laser Cutter 500x500mm with Automatic Sensing 460W CO2 High Precision Laser Cutter 500x500mm with Automatic Sensing 560W CO2 High Precision Laser Cutter 500x500mm with Automatic Sensing 660W CO2 High Precision Laser Cutter 500x500mm with Automatic Sensing 7

After-sales Services

① 2 year guarantee for laser source(people damaged are charged)

② Full technical support / by e-mail, call and video

③ Spare parts supply

④ Free online training installation and operation

⑤ 12 hours quick feedback & after-sales services

⑥ ODM/OEM service

FAQ



1. What model does Herolaser produce?

Production of Laser Welding series, Laser Cleaning series, Laser Cutting series and Laser New energy automation, etc.


2. What are the payment methods of Herolaser Company?
T/T, LC, CAD, OA, Trade Insurance, Alibabapay

3. Does Herolaser accept Acceptance?
Yes, we accept bank acceptances within 6 months, not commercial acceptances.

4. Can I visit the factory?
Available to have a visit to our factory at any time.

5. What can I get with the purchase of equipment?
Each machine has a set of standard accessories.

6. Can I go to the factory to test the machine before shipment?
Of course you can.

7.How is the delivery and shipment?
Ship in 7 days after 100% payment; Packaged with Plywood box.

8. How about your pre-sales service?
Provide quick response and free consulting services within 8 hours.

9.How will you guarantee after-sales services?
We offer two years warranty for laser source, one year for the machine.
