1300x1300mm Processing CNC Fiber Laser Cutter 0.03 Precision For Glass

Place of Origin China
Brand Name Herolaser
Certification ISO9001
Model Number C13
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Wooden case
Delivery Time 20-45 days
Payment Terms L/C, T/T, D/A, D/P
Supply Ability 25 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name C13 Precision Laser Cutting Machine Warranty 2 Years For Laser Source
Processing Size 1300*1300mm Accuracy Of Position 0.01mm
Accuracy Of Repeat 0.003mm Type Square, Round, Special Pipe
High Light

Glass CNC Fiber Laser Cutter

,

1300x1300mm CNC Fiber Laser Cutter

,

0.03 High Precision Laser Cutting Machine

Leave a Message
Product Description

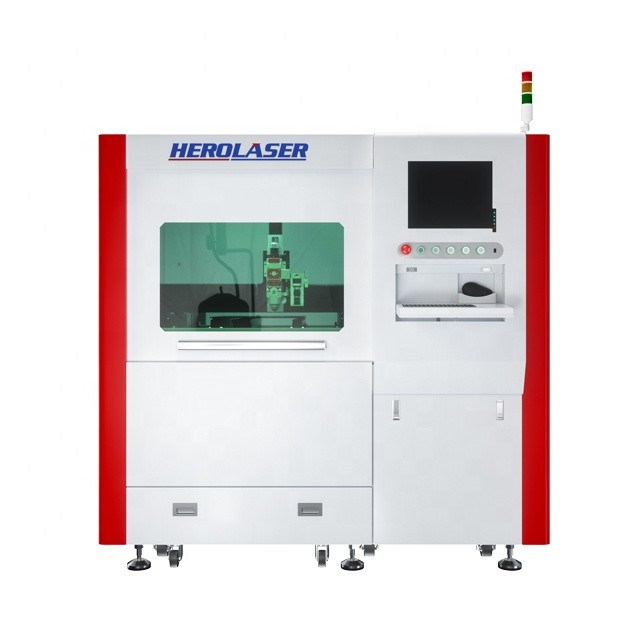

C13 0.03 Precision 1300*1300mm Processing Cnc Fiber Laser Cutter Cutting Machine Equipmemt For Glass



Functions of C13 Cutting Machine

Model Features:

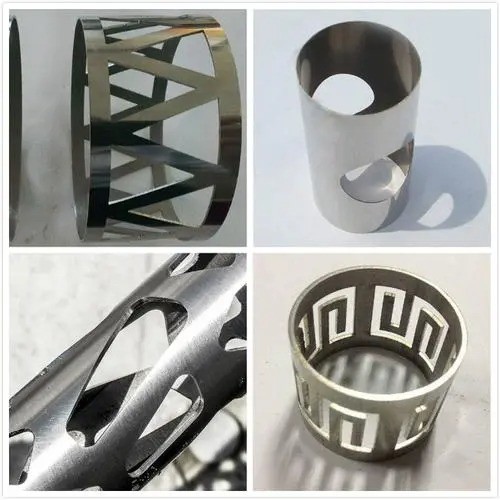

- Can cut all kinds of graphics on planiform plates.

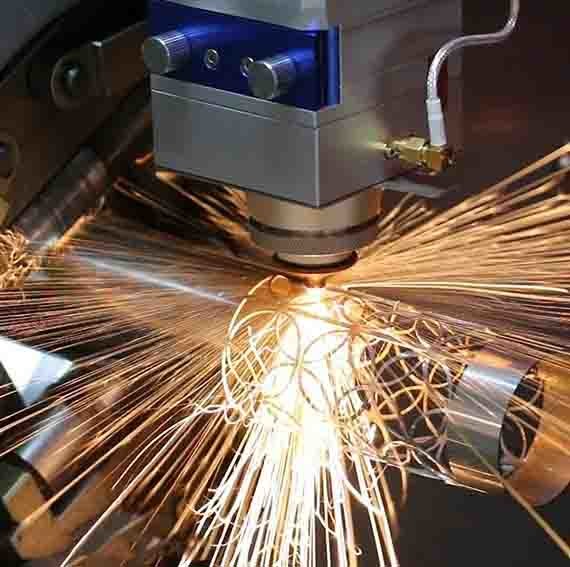

- High precision, fast speed, narrow cutting seam, minimum heat affected zone, smooth cutting surface without burrs.


- The laser cutting head will not touch the surface of the material and will not scratch the workpiece.


- Narrow thin kerf, small heat-affected zone, minimal local deformation of the workpiece, no mechanical deformation.


- Good processing flexibility, can process any graphics.


- It can cut steel plate, stainless steel, aluminum alloy plate, hard alloy and other hard materials without deformation.


- The parallel exchange platform is used to complete the exchange within 20 seconds, which greatly improves the processing efficiency.


- Low power consumption, no reaction gas required, compressed air is used as auxiliary gas for laser cutting.

Optical performance parameter
Laser source wavelength ML-C6-QF
Output power rate of the Laser source 1070nm
Effective cutting area 600mm*600mm
Cutting thickness (depend on Laser source power) Carbon ≤8mmStainless Steel ≤4mm
Aluminum Alloy ≤2mm; Copper ≤2mm
Positioning accuracy ≤±0.03mm
Repeated position accuracy ≤±0.02mm
Max speed of X-axis ≤20m/min
Max speed of Y-axis ≤20m/min
Max speed of Z-axis ≤17m/min
Synthesis speed ≤20m/min
Max accelerated speed 0.3G
Bearing weight 300KG
Electric demand AC220V±5%50Hz
Total Power consumption 6KW-25KW
Dimension 1880*1450*2100(mm)
Machine weight About 1200KG
Support Graphical format DXF
