ML-ZF-1500 AC220V Laser Cutting Machine for Metal Sheet Board

Place of Origin China, Shenzhen
Brand Name Herolaser
Certification ISO9001, CE
Model Number ML-ZF-1500
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Wooden case
Delivery Time 25-45 days
Payment Terms L/C, T/T, D/A, D/P, T/T
Supply Ability 25 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model ML-ZF-1500 Laser Power 1500W
Laser Wave Length 1070nm Positioning Accuracy ≤±0.03mm
Repeated Position Accuracy ≤±0.02mm Max Speed Of X-axis ≤20m/min
Max Speed Of Y-axis ≤20m/min Max Speed Of Z-axis ≤17m/min
Power Supply AC220V±5%50Hz Dimension Size 1880*1450*2100(mm)
High Light

AC220V Laser Cutting Machine

,

Bus Type Capacitor Laser Cutting Machine

,

High Precision Laser Cutting Machine 1070nm

Leave a Message
Product Description

Laser Cutting Machine for Metal Sheet Board

Laser type Fiber laser
Laser wavelength 1070mm
Cutting range 1300*900mm
Laser power 500w/800w/1000w/1500w/2000w
Cutting thickness 0.3-10mm(depends on materials)
Minimum line width 0.1mm
X/Y axis positioning accuracy ±0.02mm
Repeated positioning accuracy of X/Y axis ±0.01mm
Maximum speed ≤70m/min
Maximum acceleration ≤1G
Machine weight 1500kg
Loadable weight 200kg
Power Requirements Single-phase AC 220V,50Hz,32A
Size 2200*1850*1600mm



Model Profile

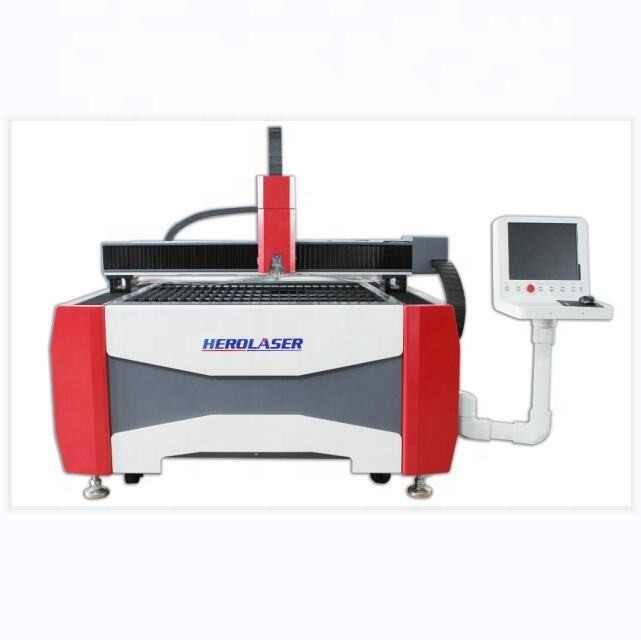

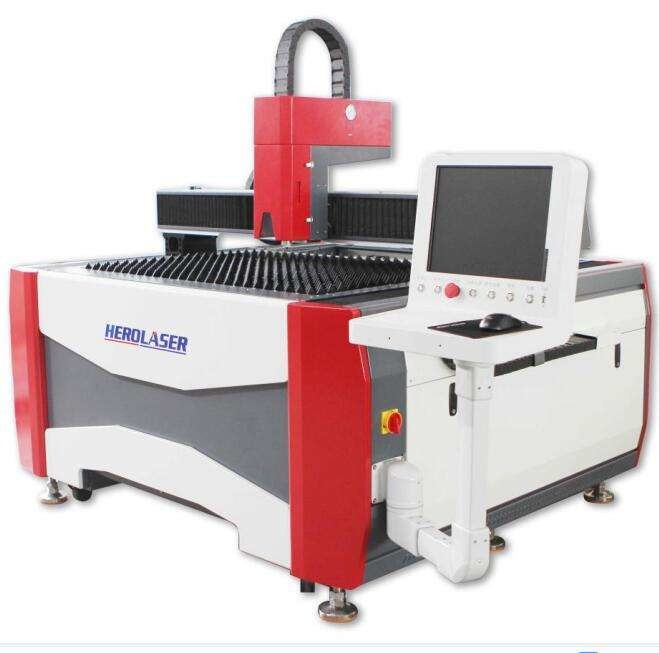

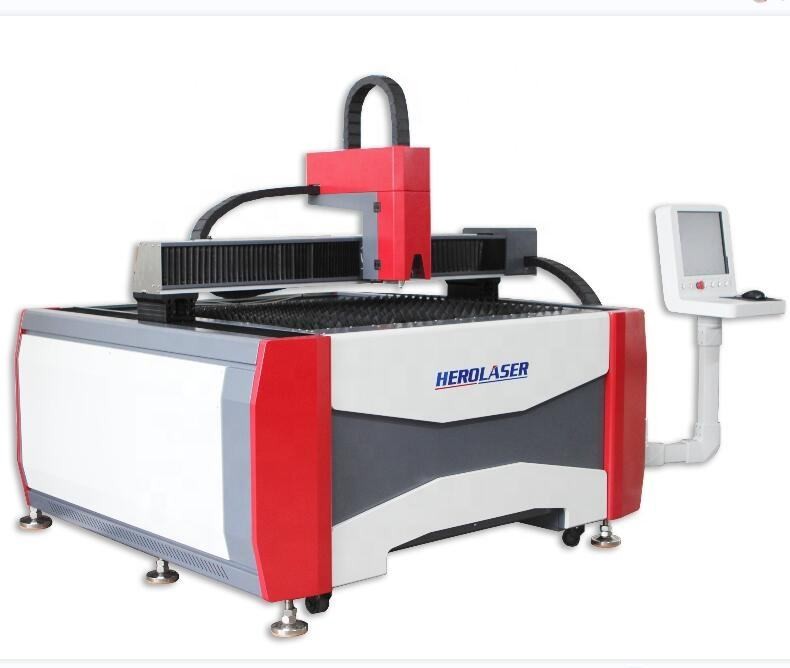

ML-ZF-1500 AC220V Laser Cutting Machine for Metal Sheet Board 0
ML-ZF-1500 AC220V Laser Cutting Machine for Metal Sheet Board 1
ML-ZF-1500 AC220V Laser Cutting Machine for Metal Sheet Board 2



Model Features



1. High Precision laser cutting machine
Stable, mature technology, high cutting efficiency, small footprint, flexible application with full-time cutting, high utilization
of the materials, strong expandability , and very flexible

2. High-precision host
Precision linear guide, high precision positioning, less wear; can keep high precision for a long time, easy and interchangeable

3. Laser cutting head
The laser cutting head is equipped with a sensitive bus-type capacitor, which can be adjusted to the ideal focal length to ensure
the cutting efficiency and cutting effect

4. Precise cutting
Realize the precise cutting and nearly without error and the cutting surface is smooth and flat



Applications

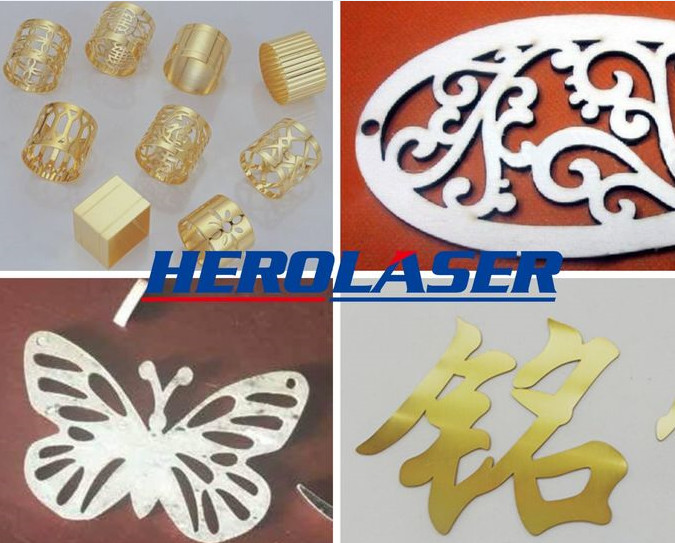

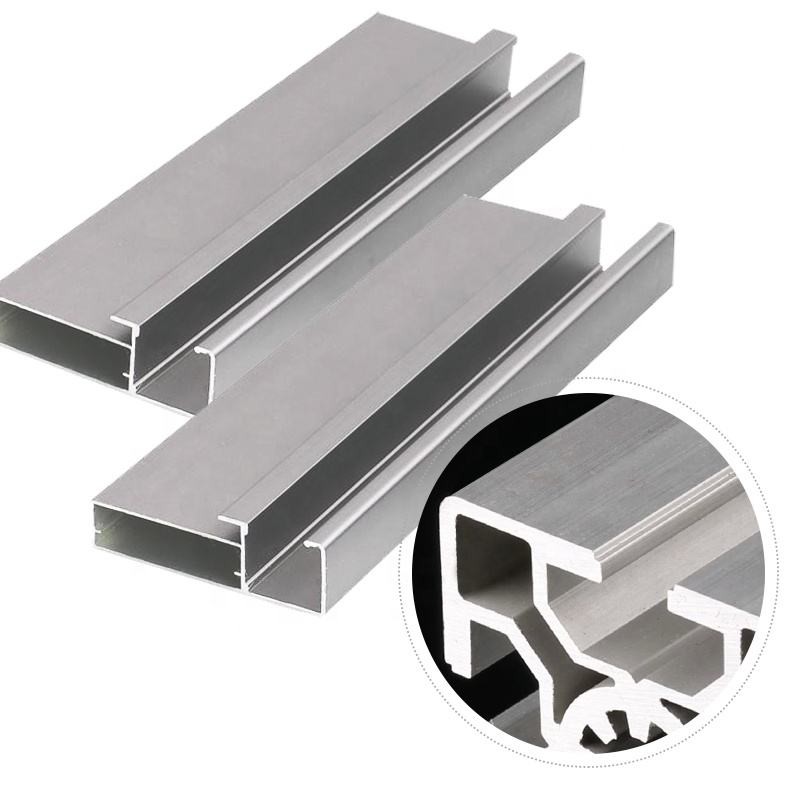

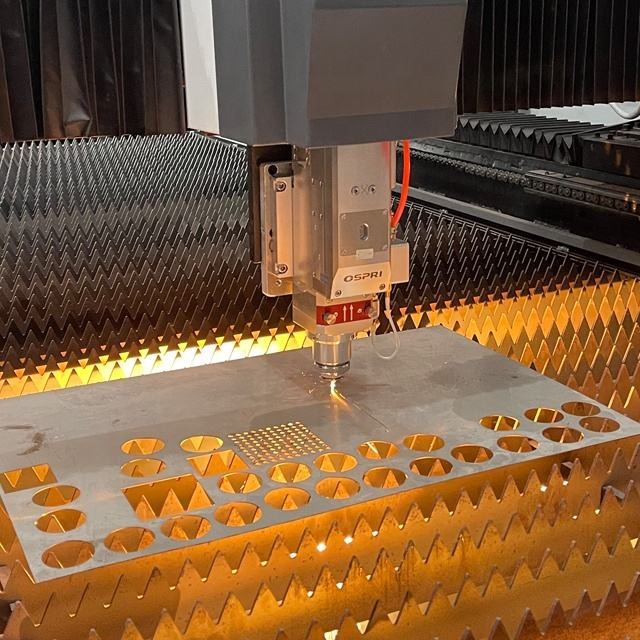

ML-ZF-1500 AC220V Laser Cutting Machine for Metal Sheet Board 3 ML-ZF-1500 AC220V Laser Cutting Machine for Metal Sheet Board 4

                                Mobile Communications                                                                New Energy Industry



ML-ZF-1500 AC220V Laser Cutting Machine for Metal Sheet Board 5 ML-ZF-1500 AC220V Laser Cutting Machine for Metal Sheet Board 6

                                             Glasses                                                                                 Automoble Making



ML-ZF-1500 AC220V Laser Cutting Machine for Metal Sheet Board 7 ML-ZF-1500 AC220V Laser Cutting Machine for Metal Sheet Board 8

                                             Machining                                                                           Medical Equipment





ML-ZF-1500 AC220V Laser Cutting Machine for Metal Sheet Board 9



Pre-Sales Service



1) Free pre-sales 7*24 hours rapid response services / cousulting
2) Free sample testing / inspection
3) Free design of fixtures as customers / distributor required
4) Strict quality control for our products
5) Quick delivery time

After-sales Service

1) 2 year guarantee for laser source(people damaged are charged)
2) Full technical support / by e-mail, call and video
3) Spare parts supply.
4) Free online training installation and operation
5 12 hours quick feedback & after-sales services
6) ODM/OEM service



FAQ



1. What model does Herolaser produce?
Production of Laser Welding series, Laser Cleaning series, Laser Cutting series and Laser New energy automation, etc.

2. What are the payment methods of Herolaser Company?
T/T, L/C, CAD, OA, Trade Insurance, Alibabapay.

3.
Does Herolaser accept Acceptance?
Yes, we accept bank acceptances within 6 months, not commercial acceptances.

4. Can I visit the factory?
Available to have a visit to our factory at any time.

5. What can I get with the purchase of equipment?
Each machine has a set of standard accessories.


6. Can I go to the factory to test the machine before shipment?
Sure you can.


7.How is the delivery and shipment?
Ship in 7 days after 100% payment; Packaged with Plywood box.

8.
How will you guarantee after-sales services?
We offer two years warranty for laser source, one year for the machine.
