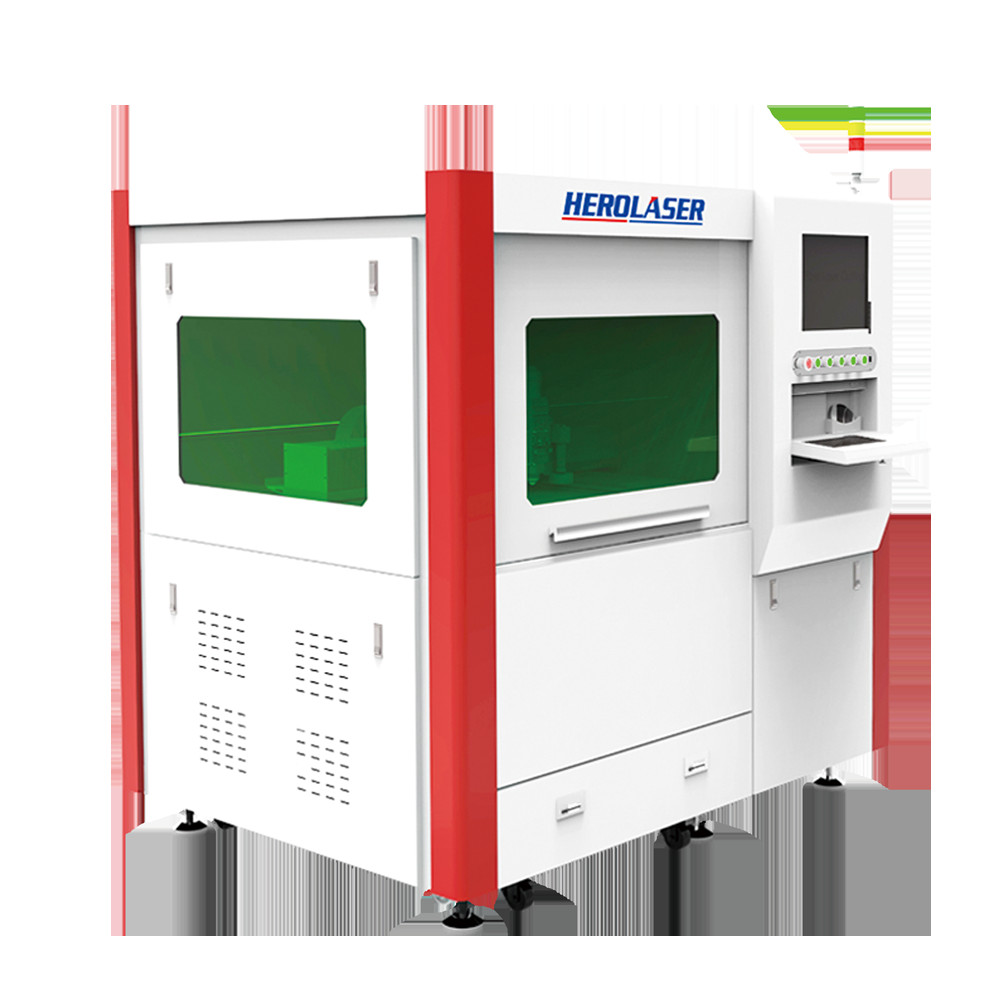

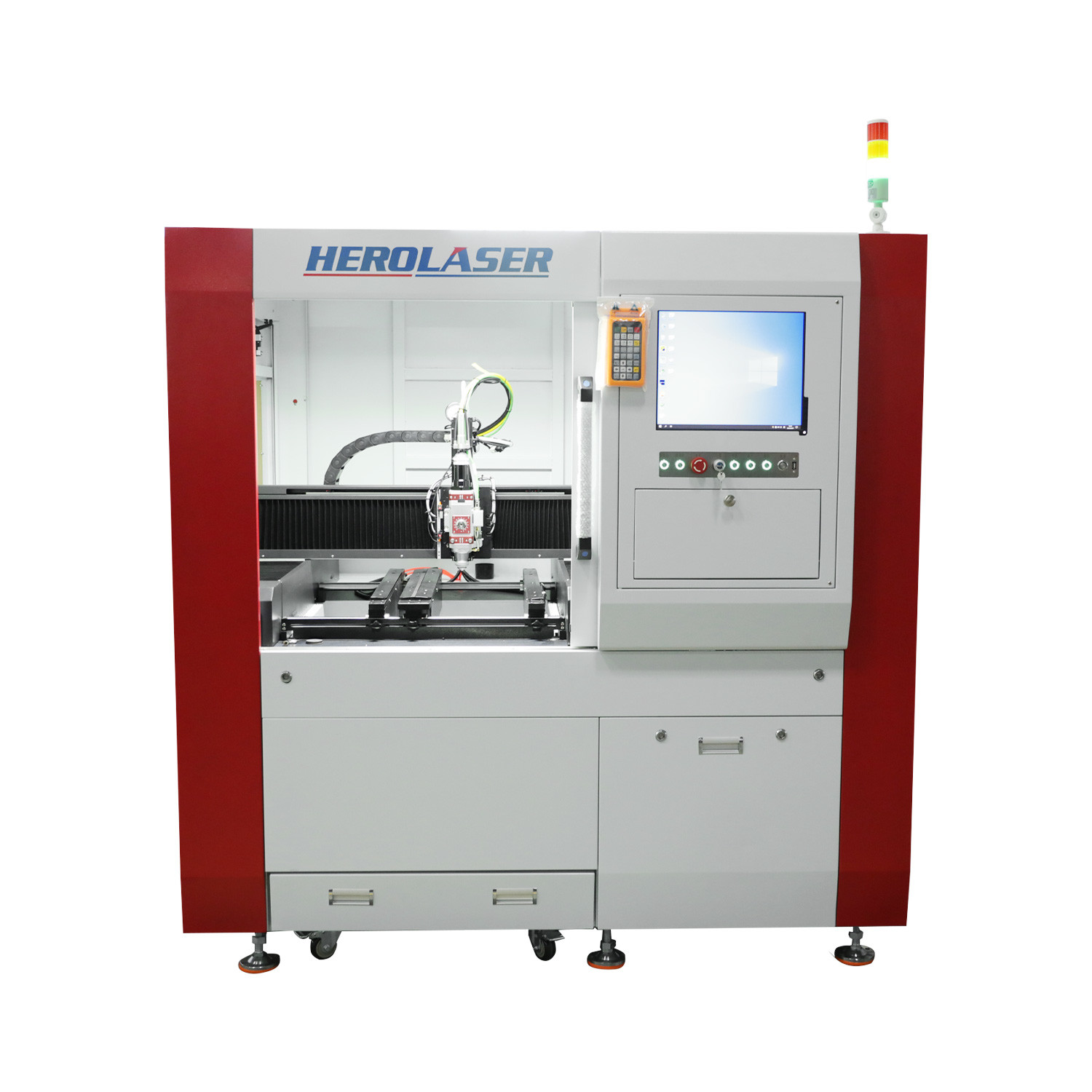

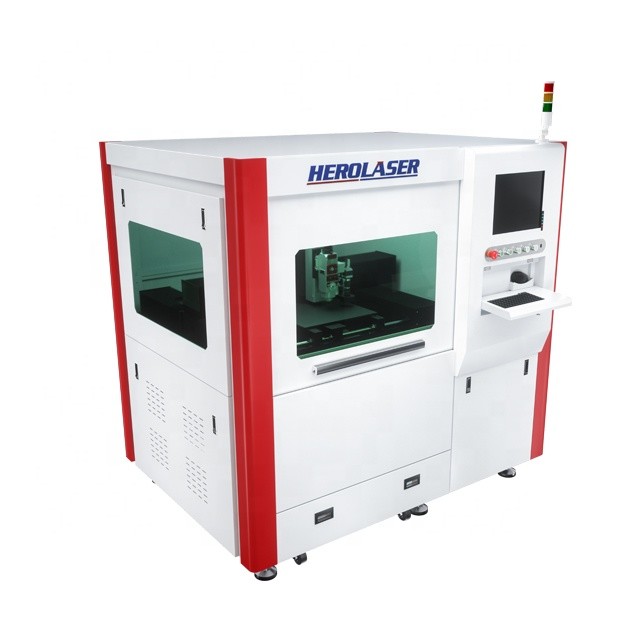

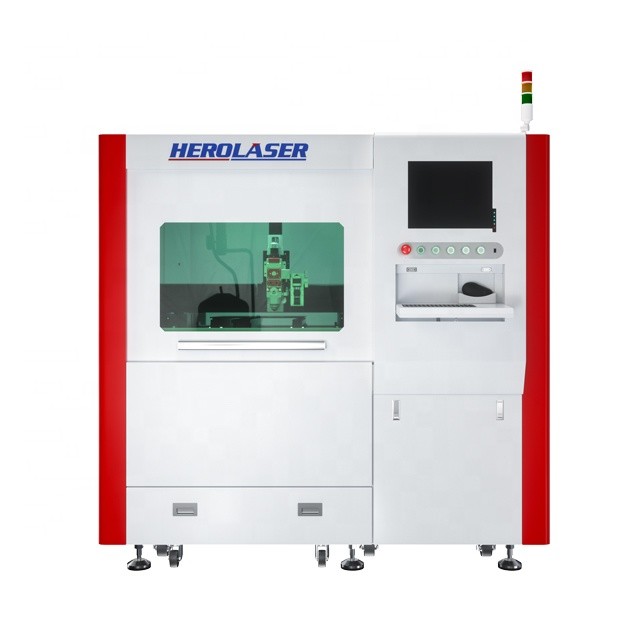

Optical Fiber Precision Laser Cutting Machine For Electronic Component Chip industry

  • Optical Fiber Precision Laser Cutting Machine For Electronic Component Chip industry
  • Optical Fiber Precision Laser Cutting Machine For Electronic Component Chip industry
  • Optical Fiber Precision Laser Cutting Machine For Electronic Component Chip industry
  • Optical Fiber Precision Laser Cutting Machine For Electronic Component Chip industry
  • Optical Fiber Precision Laser Cutting Machine For Electronic Component Chip industry
  • Optical Fiber Precision Laser Cutting Machine For Electronic Component Chip industry
Place of Origin China
Brand Name Purple Horn
Certification ISO9001, CE
Model Number ML-C58-QFST
Minimum Order Quantity 1 Set
Price $36000~45000/set
Packaging Details Wooden Case
Delivery Time 7 work days
Payment Terms L/C, D/A, D/P, T/T
Supply Ability 20 sets/month
Product Details
ML-C6-QFS 1064nm~1070nm Laser Wave Length ≤20m/min
Max Speed Of X-axis ≤20m/min Max Speed Of Z-axis AC220V, ±5%50Hz
Power Supply AC220V, ±5%50Hz Dimension Size 1880mm*1450mm*2100(mm)
Highlight

1064nm Precision Laser Cutting Machine

,

1070nm Precision Laser Cutting Machine

,

Electronic Component Chip Laser Cutter
Leave a Message
Product Description

Optical Fiber Precision Laser Cutting Machine For Electronic Component Chip industry 0





Optical performance parameter
Laser source wavelength
ML-C58-QF
Output power rate of the Laser source
1070nm
Effective cutting area
600mm*600mm
Cutting thickness (depend on Laser source power)
Carbon ≤8mm；Stainless Steel ≤4mm;
Aluminum Alloy ≤2mm; Copper ≤2mm;
Positioning accuracy
≤±0.03mm
Repeated position accuracy
≤±0.02mm
Max speed of X-axis
≤20m/min
Max speed of Y-axis
≤20m/min
Max speed of Z-axis
≤17m/min
Synthesis speed
≤20m/min
Max accelerated speed
0.3G
Bearing weight
300KG
Electric demand
AC220V±5%50Hz
Total Power consumption
6KW-25KW
Dimension
1880*1450*2100(mm)
Machine weight
About 1200KG
Support Graphical format
DXF



Purple Horn 1500 Watt High Precision Laser Cutting Machine Glasses Stainless Steel Metal Automatic Cutting Machine


Laser cutting uses a high-power density laser beam to quickly heat the material to vaporization temperature and evaporate to form a hole, move the beam to form a slit, so that realize the materials cutting .

Based on this, Purple Horn small area high precision cutting machine also achieves high-precision cutting, no tool wear, low heat impact, fast speed, automatic positioning, automatic correction and other functions.

Optical Fiber Precision Laser Cutting Machine For Electronic Component Chip industry 1
Characteristics
1. High Precision laser cutting machine
Stable, mature technology, high cutting efficiency, small footprint, flexible application with full-time cutting, high utilization of the materials, strong expandability , and very flexible

2. High-precision host
Precision linear guide, high precision positioning, less wear; can keep high precision for a long time, easy and interchangeable

3. Laser cutting head
The laser cutting head is equipped with a sensitive bus-type capacitor, which can be adjusted to the ideal focal length to ensure the cutting efficiency and cutting effect

4. Precise cutting
Realize the precise cutting and nearly without error and the cutting surface is smooth and flat

Optical Fiber Precision Laser Cutting Machine For Electronic Component Chip industry 2

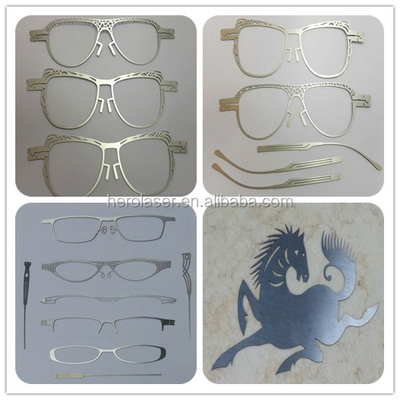

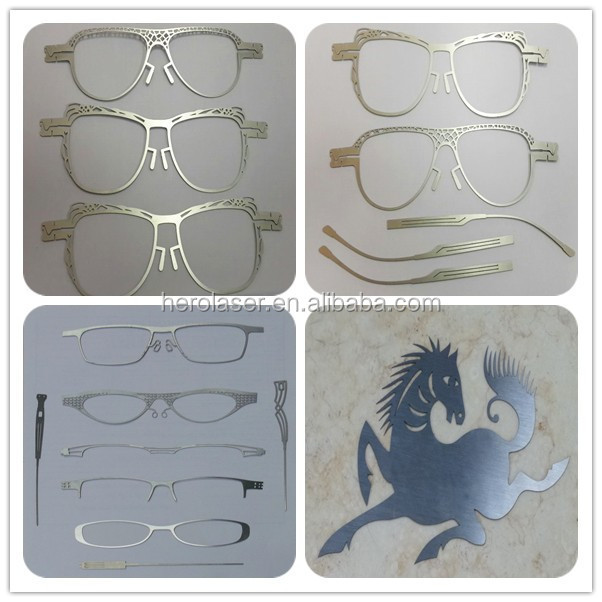

Sample Show

Optical Fiber Precision Laser Cutting Machine For Electronic Component Chip industry 3
