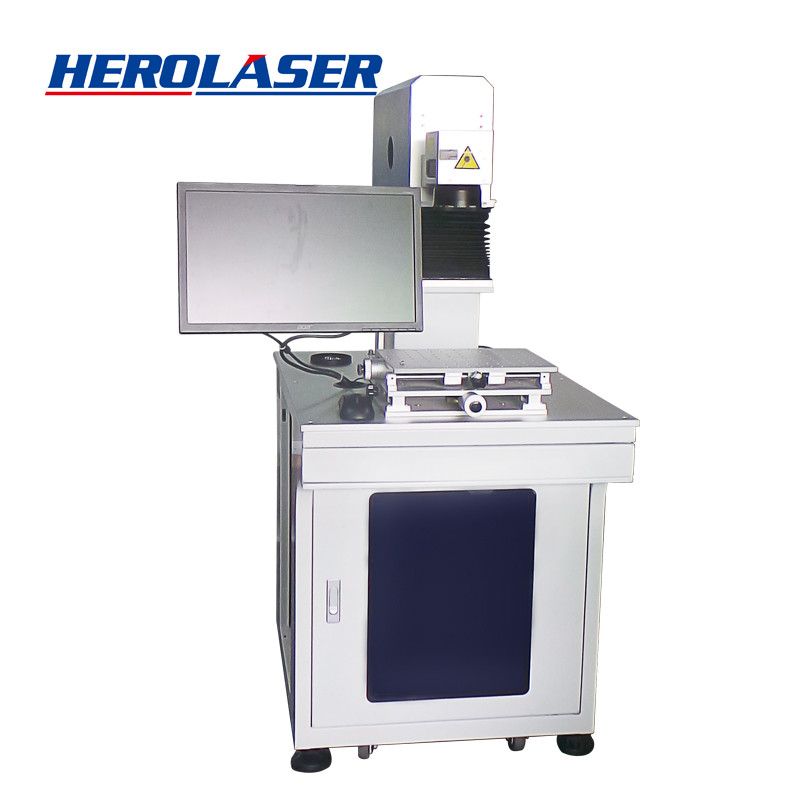

CE Approval UV Laser Marking Machine

Place of Origin China
Brand Name Herolaser
Certification CE, FDA
Model Number ML-MU-KF-00-HW010
Minimum Order Quantity 1 SET
Price Negotiable
Packaging Details 160KG in wood case
Delivery Time 12 days
Payment Terms T/T, Western Union
Supply Ability 600 sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Engraving Range 100*100mm Gross Power 700W
Net Weight 100kg Gross Weight 150kg
Pulse Width 6-250ns Character Size 0.5-110mm
Application Laser Marking & Laser Engraving Laser Head Scanning Head,Galvo Head
High Light

700W UV Laser Marking Machine


CE UV Laser Marking Machine


CE uv laser machine

Leave a Message
Product Description

Compact and Efficient UV Laser Marking Machine for Plastic/Glass/Lens/Wood/Metal


Model Introduction:

UV laser marking machine adopts 355nm UV laser source, this machine uses frequency-triped intracavity techniquie, compared to infrared laser, 355 UV laser focusing spot is extremely small, can significantly reduce the mechanical deformation of the material with little heat affected in processing, since mainly used for ultra-precision marking, engraving, particularly suitable for food, medicine packaging material marking, drilling microhole, high-speed partition in glass material and cutting complex graphics on silicon wafer etc .

The UV laser technology it can work over different materials, Herolaser offers diverse fiber laser solutions, from UV laser with working table and PC, to sensor conveyor laser systems that allow you engrave with high speed on different plastic or glass materials.




  • The UV laser engraving technology can cover a whited range of applications, from plastics to metals crossing materials like wood or paper. This is the most common materials engraving with UV laser and the solutions that we offer to our costumers.
  • Herolaser ML-MU-KF-00-HW010 UV laser machines are built with German galvanometer heads, ensuring high quality and stability at the time of engraving with high speed.


Technical Features:


Product Name UV Laser Marking Machine
3D engraving OPTIONAL
Output Power 3W, 5W, 8W and 10W
Engraving Range 100×100mm
Repetition Precision ±0.001mm
Speed of engraving 6000mm per second
Minimum Line Width  0.01mm
Pulse width  6-250ns
Beam Quality ㎡ <1.2
Pulse Repetition Rate  1-30KHZ
The depth of Engraving(based on material)


Gross Power  700W
Operating Voltage  AC 110V/220V 50/60HZ 5A
Character Size  0.5-110mm
Cooling System Air Cooling
Cable Length 3m (5m optional)
Working Temperature Range  10-30℃
Working Humidity  20%-80%
Net Weight of machine  100kg




It is ideal for engrave on plastics and products that require engrave with low temperature over the material.
crystal, porcelain, PLA, PVC, PET, PE, PP, PS, PTFE, PMMA, glass, and other materials.


Marking samples for reference:


CE Approval UV Laser Marking Machine 0

CE Approval UV Laser Marking Machine 1


1. How is the payment?
  • 30% deposit before production and the balance 70% before shipment
2. How is the delivery and shipment?
  • Ship in 7 days after 100% payment;
  • Plywood box packaging
3. How will you guarantee aftersales services?
  • We offer two warranty for laser source, one year for whole machine and lifetime maintenance services.
  • Engineers available to service machinery overseas
  • Free technical training in our factory
  • Free sample can be sent to you
  • Professional technical team 24 hours online
4. How about your presales service?
  • Speeding offer within 8 hous quick response and free consulting.
  • Free sample marking or testing is avaiable
  • Progressing solution design to all clients, including distributors and end users.



CE Approval UV Laser Marking Machine 2
