FDA Certified 4W UV Laser Marking Machine Damage Free Marking
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | 1 Year,2 Years | Marking Speed | 7000mm/second |
|---|---|---|---|
| Laser Power | 4W | Laser Source | UV Laser |
| Name | UV Laser Marking Machine | Beam Quality | M2＜1.1 |
| Keywords | Damage Free Marking | After-sales Service Provided | Professional Technical Team 24 Hours Online |
| High Light | 4W UV Laser Marking Machine,FDA UV Laser Marking Machine,uv laser engraving machine |
||
Product Description

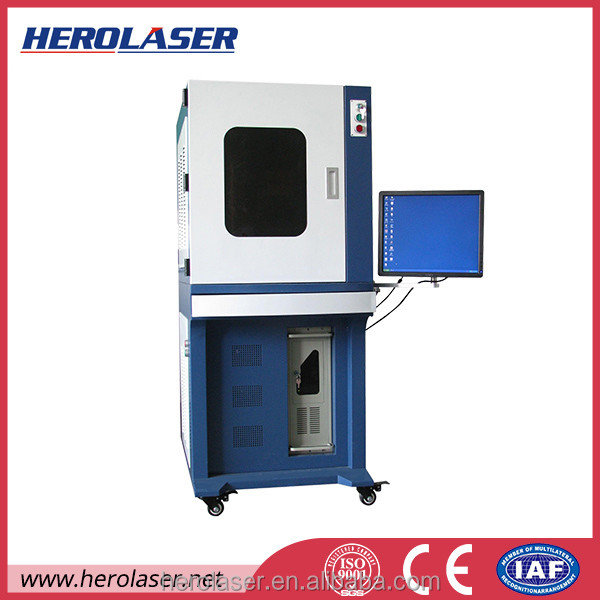

Beam Quality M2 ＜ 1.1 UV Laser Marking Machine Damage-free Marking
Product Introduction:
UV Laser marking machine is working for critical and sensitive materials. 1.5 W, 3 W, 4 W, 5 W, 8 W, 10 W or specified laser power can be customized to meet the production requirement. ML-MU-W4 is a standard single-station design equipped with Class 1 safety enclosure to ensure the safety of the operator. With mature industry solutions. Over 5000 enterprises are working with us to help produce electronic parts, auto parts, IC chips, and other high value-added products.
Advantages and Features:
| 1 | With cold laser processing and a small heat-affected zone, it can achieve high-quality processing |
| 2 | Wide applicable materials range can compensate for the shortage of infrared laser processing ability |
| 3 | With good beam quality and a small focusing spot, it can achieve superfine marking |
| 4 | High marking speed, high efficiency, and high precision |
| 5 | No consumables, low cost and low maintenance fee |
| 6 | The overall machine has stable performance, supporting the long-term operation |
Technical Specs:
| Model | ML-MU-W4 |
| Laser power | 4W |
| Laser wavelength | 355nm |
| Working area | 100x100mm |
| Beam quality | ㎡＜1.1 |
| Output frequency | 5Khz~80Khz |
| Power stability(8h) | ＜±1% rms |
| Pulse width | 10-50ns |
| Focus spot diameter | ＜0.01mm |
| Scan head | GalvoTech |
| Controller | BJJCZ |
| Software | EZCAD |
| Compatible format of file | PLT, DXF, AI, BMP, JPG and so on |
| Lifespan of laser source | 20,000 hours |
Applications :
- Used for fields with higher requirements in depth, smoothness and precision;
- It is widely used in LOGO marking of high-end electronic products, Food, PVC, medical packaging materials (HDPE, PO, PP, etc.) marking and drilling (d≤10μm), Flexible PCB board marking and slicing, Metal or non-metallic coating removing and Wafe.
Marking samples for reference:
FAQ
1. How is the payment?
- 30% deposit before production and the balance 70% before shipment
2. How is the delivery and shipment?
- Ship in 7 days after 100% payment;
- Plywood box packaging
3. How will you guarantee aftersales services?
- We offer two warranty for laser source, one year for whole machine and lifetime maintenance services.
- Engineers available to service machinery overseas
- Free technical training in our factory
- Free sample can be sent to you
- Professional technical team 24 hours online
4. How about your presales service?
- Speeding offer within 8 hous quick response and free consulting.
- Free sample marking or testing is avaiable
- Progressing solution design to all clients, including distributors and end users.
