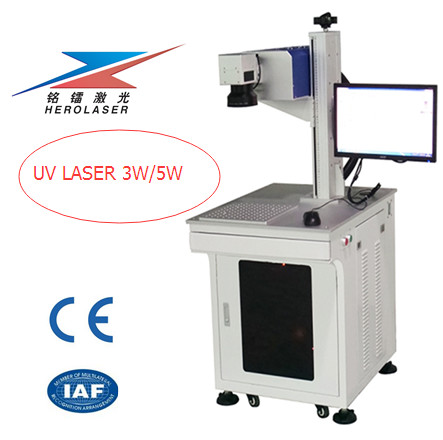

FDA Approve 3W Ultraviolet Laser Marking Machine For Aviation Wire

Place of Origin China
Brand Name Herolaser
Certification CE, FDA
Model Number ML-MU-W3
Minimum Order Quantity 1 SET
Price Negotiable
Packaging Details 1110mm x 860mm x 1520mm packed in wood case
Delivery Time 12 days
Payment Terms T/T, Western Union
Supply Ability 600 sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Laser Power 3W Repeating Frequency 7-80KHZ
Beam Quality(m2) <1.1 Weight ≤100kg
Dimension (L*W*H) 1110mm X 860mm X 1520mm Operating System Win98/Win2000/WinXP/Win 7
Cooling Way Built-in Air Cooling Control Interface Standard USB
High Light

FDA ultraviolet laser marking machine


3W ultraviolet laser marking machine


3W uv laser machine

Leave a Message
Product Description

The Ultraviolet (UV) Laser Marking for Aviation Wire and Cable Constructions


Product introduction:


With the right product, laser marking is easy. Today, demand is more focused on high-quality and stable results than ever before. As the demand for more complex products and diverse materials increases, it becomes more and more important to choose the most versatile marking solution to stay ahead of the competition. Using ultraviolet lasers, early adopters can not only solve today's difficulties, but also prepare for any challenges tomorrow.




1. High efficiency in electrical / optical conversion, wind cooling ;

2. Small in size, with high beam output quality, high reliability;
3. The marking speed is 3~12 times of first and second generation of laser markers;
4. No consumable ,10 years service life of the laser source,energy saving;
5. Low power consumption(500W-1000w).




Model ML-MF-UV
Laser Power 1.5w/3w/5w
Laser wavelength 355nm
Repeating Frequency 7-80KHZ
Beam Quality(m²) <1.1
Marking Range 100x100mm(Optional)
Marking Speed ≤7000mm/s
Min.line Width 0.01mm
Min.Character 0.15mm
Repeatability Accuracy ±0.003
Power Supply 220V±10% / 50-60Hz
Power Consumption 800W
Dimension(LxWXH) 1110mm x 860mm x 1520mm
Weight ≤100kg
Operating System Win98/Win2000/WinXP/Win 7
Cooling Way Built-in air cooling
Control Interface Standard USB
File Format PLT,PCW,DXF,BMP,SHX,TTF etc.
Laser Type Pulse




Mainly used in the high-end market of ultra-fine processing, in cosmetics, drugs, food and other polymer materials on the surface of the bottle marking, with good effect, marking clear and firm, better than ink printing, no pollution; Mark and mark on flexible PCB board; Silicon wafer microporous, blind hole processing; Liquid crystal glass two-dimensional code marking, glassware surface punching, metal surface coating marking, plastic keys, electronic components, gifts, communication equipment, building materials, etc.


Marking samples for reference:


FDA Approve 3W Ultraviolet Laser Marking Machine For Aviation Wire 0

FDA Approve 3W Ultraviolet Laser Marking Machine For Aviation Wire 1

FDA Approve 3W Ultraviolet Laser Marking Machine For Aviation Wire 2


1. How is the payment?
  • 30% deposit before production and the balance 70% before shipment
2. How is the delivery and shipment?
  • Ship in 7 days after 100% payment;
  • Plywood box packaging
3. How will you guarantee aftersales services?
  • We offer two warranty for laser source, one year for whole machine and lifetime maintenance services.
  • Engineers available to service machinery overseas
  • Free technical training in our factory
  • Free sample can be sent to you
  • Professional technical team 24 hours online
4. How about your presales service?
  • Speeding offer within 8 hous quick response and free consulting.
  • Free sample marking or testing is avaiable
  • Progressing solution design to all clients, including distributors and end users.
