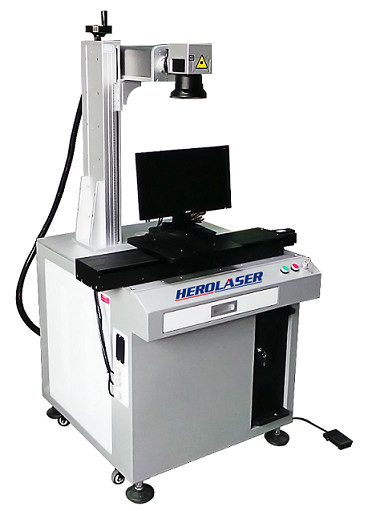

Herolaser Equipment 1064nm Fiber Engraving Machine , Fiber Galvo Laser
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Condition | New | Laser Power | 20W 30W 50W 100W |
|---|---|---|---|
| After-sales Service Provided | Engineers Available To Service Machinery Overseas | Application | Laser Marking & Laser Engraving |
| Laser Wavelength | 1064nm | Laser Source | IPG |
| Repeating Frequency | 20-200KHz | Beam Quality | M＜2 |
| High Light | Herolaser Equipment fiber engraving machine,1064nm fiber engraving machine,1064nm fiber galvo laser |
||
Product Description
Deep Metal Fiber Laser Marking Machine 50W /100W Laser Engraving
Model Introduction:
Fiber laser deep engraving machine adopts low frequency, high pulsed energy, high peak power fiber laser source (Germany IPG-30W/ 50W/ 100W), through precision beam shaping and proprietary technology focusing, form a perfect, high-speed laser beam and special spot, the German high-speed digital scanning galvanometer to enable fast deep engraving, with flat carved bottom, little taper, small heated-affected zone and high speed characteristics.
Model Features:
- Material’s absorption of laser, engraving time and other factors are lead to engraving depth.
- High precision. Good reliability, especially for complex graphics processing.
- Can greatly improve production efficiency and processing depth.
- Using high digital scanning galvanometer, the speed has obvious advantages in engraving depth than conventional laser equipment.
- Low maintenance costs, free maintenance for laser source, depending on power output of normal production and other factors, no need to adjust laser source and clean optical devices, no warn-up time and consumables.
- Low operating cost, low power consumption, with air cooling system inside.
Application:
- Suitable for all metallic materials, can mark high resolution, very beautiful text and graphics on electroplating materials, coating materials, coating materials, plastics, rubber, resin, ceramic and other materials.
- Widely used for automobile, motorcycle parts, aerospace components, industrial bearings, seals, mold, electrical appliances components, electrical communications, precision hardware, gifts jewelry, medical equipment, glasses and clocks, instruments and sanitary ware industries and etc.
Technical specifications:
| Model | ML-MF-W50/ 100 |
| Laser Power | 50/ 100W |
| Laser wavelength | 1064nm |
| Repeating Frequency | 20-200KHZ |
| Beam Quality | M<2 |
| Marking Range | 100mm x 100mm(Optional) |
| Marking Depth | 0.1-3 mm(depend on material and marking time) |
| Marking Speed | ≤10000mm/s |
| Min.line Width | 0.01mm |
| Min.Character | 0.15mm |
| Repeatability Accuracy | ±0.002 |
| Power Supply | 220V±10% / 50-60Hz |
| Power Consumption | ≤3000W |
| Weight | ≤150kg |
| Operating System | Win98/Win2000/WinXP/Win 7 |
| Cooling Way | Built-in air cooling |
| Control Interface | Standard USB |
| File Format | All character styles from character store of OS |
| Laser Type | Pulse |
Machine configuration:
| Laser source 50w or 100w | IPG made in Germany |
| Scanning head | Galvanometer brand: OUYAAUTO or Scanlab head from Germany. Field mirror: Nanjing Wavelength |
| Focal lens (Field mirror) | Wavelength |
| Software | EZCAD |
| Computer | Standard computer, Win 7(17 inch Dell) |
| Control card | JCZ Genuine card |
| Plug | USA Standard |
| Foot pedal | One pedal |
| Body bracket | Sheet metal |
Marking / engraving samples for reference:
FAQ
1. How is the payment?
- 30% deposit before production and the balance 70% before shipment
2. How is the delivery and shipment?
- Ship in 7 days after 100% payment;
- Plywood box packaging
3. How will you guarantee aftersales services?
- We offer two warranty for laser source, one year for whole machine and lifetime maintenance services.
- Engineers available to service machinery overseas
- Free technical training in our factory
- Free sample can be sent to you
- Professional technical team 24 hours online
4. How about your presales service?
- Speeding offer within 8 hous quick response and free consulting.
- Free sample marking or testing is avaiable
- Progressing solution design to all clients, including distributors and end users.
