Herolaser IPG 20W Fiber Laser Marking Machine , Fiber Laser Engraver
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Condition | New | Laser Power | 20W 30W 50W 100W |
|---|---|---|---|
| After-sales Service Provided | Engineers Available To Service Machinery Overseas | Application | Laser Marking & Laser Engraving |
| Laser Wavelength | 1064nm | Laser Source | IPG |
| Repeating Frequency | 20-200KHz | Beam Quality | M＜2 |
| High Light | IPG 20w fiber laser marking machine,Herolaser 20w fiber laser marking machine,Herolaser fiber laser engraver |
||
Product Description

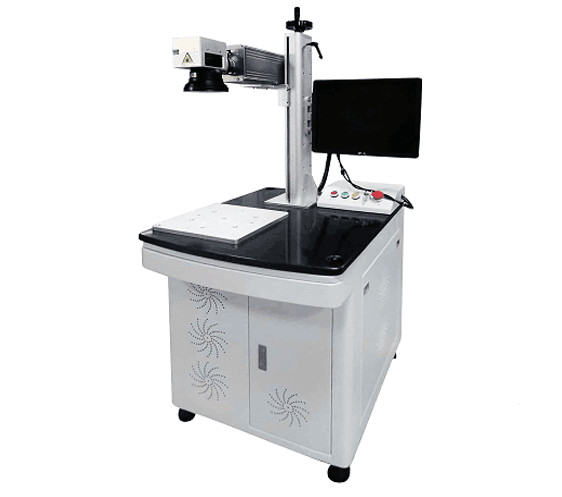

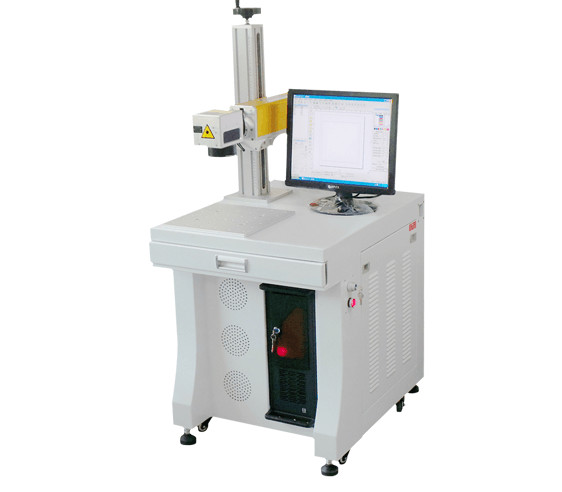

Factory Direct 20W Herolaser Fiber Laser Metal Marking Machine
Model Introduction:
Fiber lasers with integrated overall structure, no optical pollution, low power coupling loss, has many unique advantages in laser marking applications.
Model Features:
1,Excellent beam quality: Adopt Germany IPG, Britain SPI and other foreign advanced fiber laser source,beam quality is much better than traditional solid-state laser, focused spot diameter less than 20um. divergence angle is 1/4 of Diode-pumped laser. Especially suitable for precise and excellent marking.
2,Low cost: The highest electrical/optical conversion rate is up to 30%, the whole power consumption is less than 500w, this is 1/10 of lamp-pumped solid-state laser marking machine , save much of energy cost.
3,Maintenance-free: laser source no need any maintenance, also no need adjust or clean the lens.
4,Long term service life of the laser source: Fiber laser marking machine uses a laser diode as the pump source, the average service time can up to 100,000 hours.
5,High marking speed: The marking speed is over 3 times of first and second generation of laser markers.
Application:
The application of fiber laser marking machine is widely, such as auto parts, electronic communications, metal jewelry, chip manufacturing, light industrial products, medicine and food packaging industries etc. It is necessary equipment to improve efficiency,save energy and pursue quality.
Technical specifications:
| Model | ML-MF-W20 |
| Laser Power | Pulsed 20W |
| Laser wavelength | 1064nm |
| Repeating Frequency | 20-200KHZ |
| Beam Quality | ㎡<2 |
| Marking Range | 30mm x 30mm |
| Marking Depth | 0.1-3 mm(depend on material and marking time) |
| Marking Speed | ≤7000mm/s |
| Min.line Width | 0.01mm |
| Min.Character | 0.15mm |
| Repeatability Accuracy | ±0.002 |
| Power Supply | 220V±10% / 50-60Hz |
| Power Consumption | ≤3000W |
| Weight | <10.5KG |
| Operating System | WI98/WIN2000/WIN XP |
| Cooling System | Built-in air cooling |
| Control Interface | Standard USB |
| File Format | All character styles from character store of OS |
| Laser Type | Pulse |
Machine configuration:
| Laser source 20W | IPG made in Germany |
| Scanning head | Galvanometer brand: OUYAAUTO or Scanlab head from Germany. Field mirror: Nanjing Wavelength |
| Focal lens (Field mirror) | Wavelength |
| Software | EZCAD |
| Computer | Standard computer, Win 7(17 inch Dell) |
| Control card | JCZ Genuine card |
| Plug | USA Standard |
| Foot pedal | One pedal |
| Body bracket | Sheet metal |
Marking / engraving samples for reference:
FAQ
1. How is the payment?
- 30% deposit before production and the balance 70% before shipment
2. How is the delivery and shipment?
- Ship in 7 days after 100% payment;
- Plywood box packaging
3. How will you guarantee aftersales services?
- We offer two warranty for laser source, one year for whole machine and lifetime maintenance services.
- Engineers available to service machinery overseas
- Free technical training in our factory
- Free sample can be sent to you
- Professional technical team 24 hours online
4. How about your presales service?
- Speeding offer within 8 hous quick response and free consulting.
- Free sample marking or testing is avaiable
- Progressing solution design to all clients, including distributors and end users.
