Durable Pulsed 30 Watt Fiber Laser Marking System 7000mm/Second

Place of Origin China
Brand Name Herolaser
Certification CE, ISO, FDA
Model Number ML-MF-TY-BX-IW30
Minimum Order Quantity 1 Set
Price Negotiable
Packaging Details 890*980*1600mm, 170kgs in wooden case
Delivery Time 12 days
Payment Terms T/T, Western Union
Supply Ability 600 set per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Condition Brand New Application Laser Marking
Output Power Pulsed 30W Marking Speed 7000mm/second
After-sales Service Provided Engineers Available To Service Machinery Overseas Beam Quality M2<2
Power Consumption 500W Operation System Win98/Win 2000/Win XP
High Light

Durable 30 watt fiber laser

,

LED Lamp 30 Watt Fiber Laser

,

30 Watt fiber laser marking system

Leave a Message
Product Description

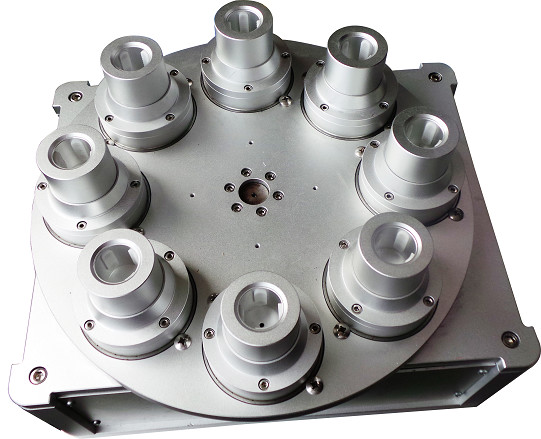

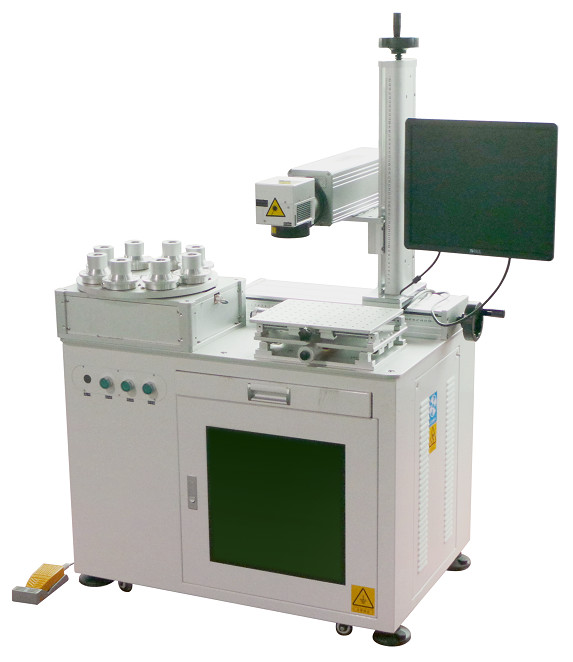

LED Lamp Fiber Laser Marking Machine with Eight Working Post



Model introduction:



The fiber laser adopts an integrated overall structure, no optical pollution, low power coupling loss, and has many unique advantages in the laser marking application field.



Machine Characteristics:



  • Excellent beam quality, using advanced foreign fiber lasers such as German IPG and British SPI. The beam quality has more advantages than traditional solid-state laser marking. The focal spot diameter is less than 20 um, and the divergence angle is a quarter of that of a semiconductor pump laser. One. Especially suitable for precision marking.
  • Low cost of use: The electro-optical conversion efficiency is as high as 30%, and the power consumption of the whole machine is less than 500W, which is one-tenth of the lamp-pumped solid-state laser marking machine, which greatly saves energy consumption.
  • Maintenance-free operation: The laser does not need any maintenance, and there is no need to adjust or clean the lens.
  • The laser has a long service life: the fiber laser marking machine uses a laser diode as the pump source, and its average working time can reach 100,000 hours.
  • Fast processing speed: The processing speed is more than 3 times that of the traditional laser marking machine.



Specification:



S.No Item Specifications
1 Laser power Pulsed (10W, 20W)
2 Laser wavelength 1064nm
3 Repeat frequency 20-100kHz
4 Beam quality M2 less than 2
5 Marking range 30mm / 30mm-300mm /300mm
6 Engraving line speed ≤ 7000mm/s
7 Minimum character 0.15mm
8 Repeatability ±0.002
9 Power supply Single phase AC 90-260v /50-60Hz
10 Power consumption of the whole machine 500W
11 Dimensions 460*160*250mm / 570*270*200mm
12 Total Weight 10.5kg / 22kg
13 Operating system Win98 / Win 2000 / Win XP
14 Cooling method Built-in air cooling
15 Control interface Standard USB
16 File format All fonts of WINDOWS operating system font library



Applicable materials and industries:



Fiber laser marking machine is widely used, such as auto parts, electronic communication, hardware jewelry, chip manufacturing, light industrial products, medicine and food packaging industry, it is the necessary equipment to improve efficiency, save energy, and demand the most quality.



Marking samples for reference:



Durable Pulsed 30 Watt Fiber Laser Marking System 7000mm/Second 0



FAQ

1. How is the payment?

  • 30% deposit before production and the balance 70% before shipment

2. How is the delivery and shipment?

  • Ship in 7 days after 100% payment;
  • Plywood box packaging

3. How will you guarantee aftersales services?

  • We offer two warranty for laser source, one year for whole machine and lifetime maintenance services.
  • Engineers available to service machinery overseas
  • Free technical training in our factory
  • Free sample can be sent to you
  • Professional technical team 24 hours online

4. How about your presales service?

  • Speeding offer within 8 hous quick response and free consulting.
  • Free sample marking or testing is avaiable
  • Progressing solution design to all clients, including distributors and end users.
