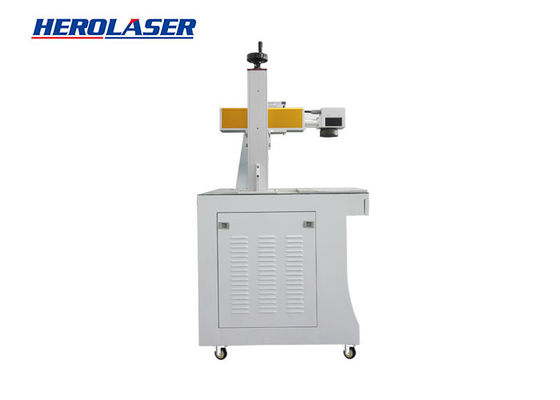

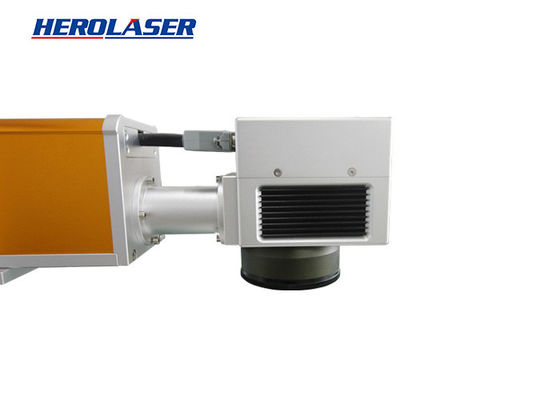

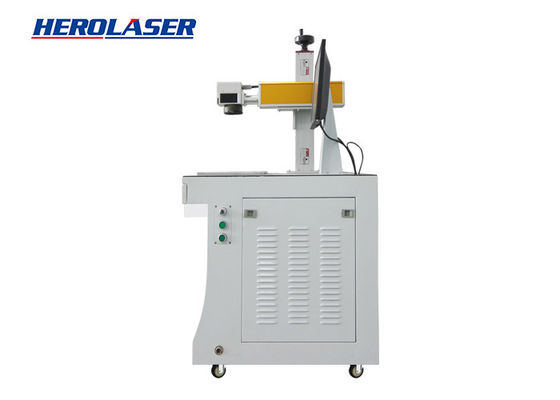

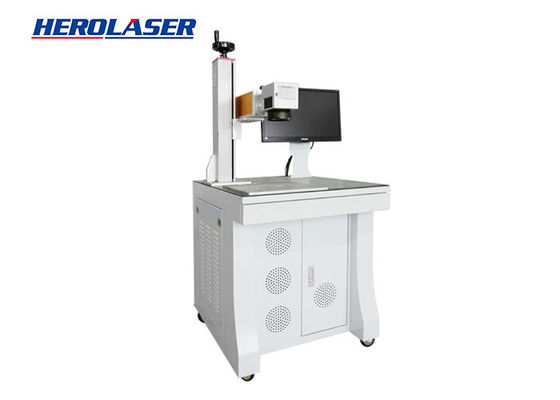

Easy To Operate Air Forced IPG 100W Fiber Laser For Deep Engraving
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Laser Source | IPG | Laser Power | 100W |
|---|---|---|---|
| Condition | New | Power Supply | AC220V 10% 50HZ |
| Marking Area (max) | 300*300mm | Laser Lifetime | 100000 Hous |
| Cooling Way | Air Forced | Operation System | Win 7 |
| High Light | Air forced 100w fiber laser,IPG 100w fiber laser,IPG portable laser engraving machine for metal |
||
Product Description
IPG Fiber Laser Marking Machine for Deep Engraving and Cutting Deep Carved
Product introdution:
Fiber laser marking system adopts Germany's most advanced technology, fiber laser light source life can reach 100,000 hours, 8-10 years without any consumables and maintenance.
Metal laser marking machine is the best choice for customers who have special requirements on the size and performance of laser beam. According to its many characteristics, people also called the metal laser marking machine, 30W fiber laser, 30W fiber laser marking system, ytterbium fiber laser.
Features and advantages:
- High precision: 0.0025mm re-position accuracy. Minimum line width 0.01mm.
- Wide range: Can be used on many materials like metal, plastic,alloy etc. Can be used in many industries like Jewelry engraving, Medical devices, Phone case engraving, Hardware industry, stainless steel tableware, electron components marking etc.
- Permanent marking: Laser marking is a permanent marking. It won’t fade, run or become less discernable as time passes like traditional marking including ink jet, hand engraving, dot-peen marking.
- Easy to operate: Support almost any Windows-based software like Coreldraw, AutoCAD, Photoshop. No need to adjust Q-switch easier than YAG diode marking machine.
- Non-contact process: Won’t cause mechanical extrusion or mechanical stress to materials. Laser beam won’t move the
work piece.
Technical details:
| Model | ML-MF-TY-BX-IW100 |
| Laser power | 100W |
| Marking area | 100*100mm / 200*200mm / 300*300mm |
| Max marking speed | 7000mm/s |
| Marking depth | 0.01~1mm(according to material) |
| Min linewidth | 0.01mm |
| Min marking character | 0.1mm |
| Repeatability Accuracy | ±0.001mm |
| Cooling way | Air cooling |
| Min linewidth | 0.01mm |
| Min marking character | 0.1mm |
| Repeatability Accuracy | ±0.001mm |
| Laser indicator | Red dot pointer |
| Unit power | ≤0.5kw |
| Marking content Graphics, text, bar codes, QRcode, automatically date, batch number, serial number,etc. |
Operation system Windows 7 or Windows 8 or Windows 10 Control software EZCAD marking control software |
| Graphic format supported | Ai, plt, dxf, dst, svg, nc, bmp, jpg, jpeg, gif, tga, png, tiff, tif |
Industrial laser engraving application:
- Electronic components: resistors, capacitors, chips, printed circuit boards, computer keyboards, etc.
- Mechanical parts: bearings, gears, standard parts, motors, etc
- Instruments: panel, nameplate, precision equipment, etc.
- Hardware tools: cutting tools, measuring tools, cutting tools, etc
- Auto parts: piston, seal ring, gear, shaft, bearing, clutch, lamp, etc.
- Daily necessities: handicrafts, zippers, key chains, sanitary ware, etc.
Marking samples for reference:
FAQ
1. How is the payment?
- 30% deposit before production and the balance 70% before shipment
2. How is the delivery and shipment?
- Ship in 7 days after 100% payment;
- Plywood box packaging
3. How will you guarantee aftersales services?
- We offer two warranty for laser source, one year for whole machine and lifetime maintenance services.
- Engineers available to service machinery overseas
- Free technical training in our factory
- Free sample can be sent to you
- Professional technical team 24 hours online
4. How about your presales service?
- Speeding offer within 8 hous quick response and free consulting.
- Free sample marking or testing is avaiable
- Progressing solution design to all clients, including distributors and end users.
