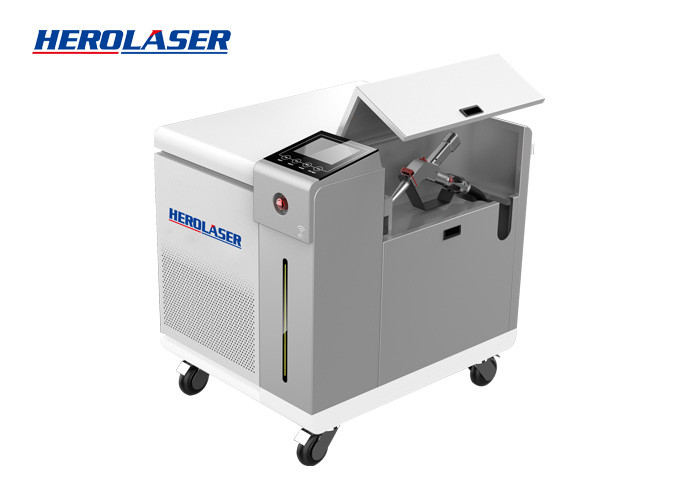

Fast 1064nm 1000w Handheld Fiber Laser Welding Machine For Metal

Place of Origin CHINA
Brand Name Herolaser
Certification CE, ISO9001
Model Number ML-500
Minimum Order Quantity 1 SET
Price Negotiable
Packaging Details PLYWOOD BOX
Delivery Time 10-15DAYS
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 100 SETS PER MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Pulse Width 0.5~20ms Certification CE, SGS
Condition New Warranty 2 Years
Single Pulse Energy 80J Focal Spot Diameter 0.2mm~3mm
Cooling System Water Cooling Welding Depth 0.1-3.5mm
Pulse Frequency 0~100Hz Laser Wavelength 1064nm
Power Supply 220v/50Hz, 380V/50/60HZ Laser Type IPG Fiber Laser Generator
Keywords Fiber Laser Welding Machine Meta Max. Output Power 500w
High Light

1064nm 1000w handheld fiber laser welding machine


1000w handheld fiber laser welding machine


1064nm pulsed fiber laser welding system

Leave a Message
Product Description

Handheld Laser Welding Machine 1000W 1500W 2000W For Metal Welding


Herolaser Fiber Laser Handheld Welding Machine

  • The welding speed is 2-10 times faster than the traditional welding speed. It can help you to save at least two welders each year;
  • Laser welding consumes less material and has a long life;
  • Easy to operate, even unskilled operator can weld products beautifully;
  • The welding seam is smooth and small, which reduces the subsequent grinding process and saves time and cost;
  • No deformation, no welding spot;
  • Safer and more environment-friendly.


Integrated Controller

The control panel is composed of touch screen and control button.

Its main function is to turn the machine on / off and change the input parameters.



Fast 1064nm 1000w Handheld Fiber Laser Welding Machine For Metal 0

Fast 1064nm 1000w Handheld Fiber Laser Welding Machine For Metal 1



Hand-held Welding Head

Hand-held welding head is the major component, containing focus lens, linked with optical fiber, where the laser was transmitted and focused to process workpieces.


Fast 1064nm 1000w Handheld Fiber Laser Welding Machine For Metal 2


HMI: Human Machine Interface when machine is on

Fast 1064nm 1000w Handheld Fiber Laser Welding Machine For Metal 3


Powerthe percentage of laser power, 10~100%;

FrequencyLuminous frequency, 1~1000Hz;

Pulse Width: The duration for which the laser power is maintained, 1~1000ms;

Duty Ratio: The ratio of the pulse width to total luminous time. When the ratio is 1, it continuously emits laser;

Laser Switch: ON: Welding head can emit laser; OFF: Welding head can’t emit laser;

Wobble SwitchOFF: Punctate laser; On: Linear laser.
