Handheld 1000W 1500W 2000W Laser Welder For Metal Products
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | 1 Year, 2 Years | Laser Power | 1000W, 1500W, 2000W |
|---|---|---|---|
| Laser Source | Fiber Laser | Name | Handheld Fiber Laser Welding Machine |
| Keywords | Easy To Operate, Flexible, No Consumables, Beautiful Joints, No Polishing Required, High Efficiency | After-sales Service | Professional Technical Team 24 Hours Online |
| Fiber Length | 10-15M Or Customized | Welding Thickness | 0.5-4mm |
| High Light | Handheld 2000W Laser Welder,Metal Products 2000W Laser Welder,Handheld 1500W Laser Welder |
||
Product Description

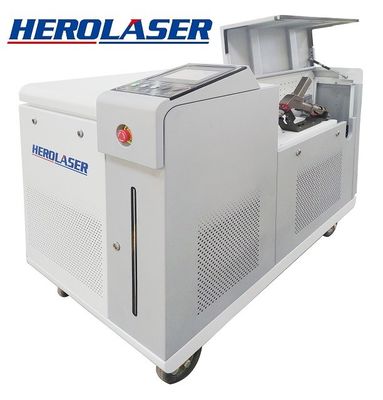

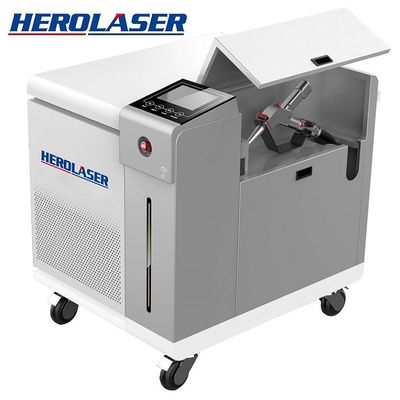

1000W 1500W 2000W Handheld Fiber Laser Welding Machine for Metal Products
Self-developed Wobble Technology
Product Introduction
Herolaser handheld fiber laser welding machine is equipped with the latest wobble welding head developed by our dedicated R&D team. It has the advantages of easy operation, beautiful welding joints, fast welding speed and no consumables. It is a new generation of welding technology in thin stainless steel, iron, carbon steel, aluminium alloy, brass and many other metal materials. It can perfectly replace the traditional argon arc welding, electric welding and other processes.
Advantages and Features
1. Require zero experience to weld beautiful work pieces
2. 2-10 times faster than the traditional welding
3. No deformation, no weld scar, stable welding
4. Safer and more environment friendly
5. No consumables
Technical Specs
| No. | Item | Parameters |
| 1 | Name | Hand-held Fiber Laser Welding Machine |
| 2 | Laser Power | 500W 1000W 1500W 2000W 3000W |
| 3 | Wave Length | 1070NM |
| 4 | Cable Length | 10-15M (can be customized) |
| 5 | Work Way | Continuously modulated |
| 6 | Speed | 0-120mm/s |
| 7 | Water Chiller | Industrial thermostatic water tank |
| 8 | Working Environment Temperature | 15-35℃ |
| 9 | Working Environment Humidity | <70% without condensation |
| 10 | Welding Thickness of Materials | 0.5-5mm (depends on the materials) |
| 11 | Working Voltage | 220V/380V 50Hz |
| 12 | Dimension | 1050mm x 670mm x 1200mm |
| 13 | Total Weight | 240kg |
Applications
Widely applicable in railings of stairs and elevator, shelves, ovens, stainless steel guardrails, distribution boxes, stainless home supplies and many more.

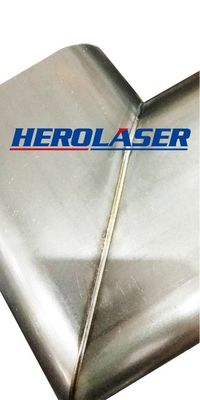

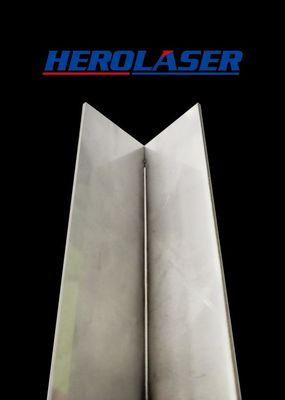

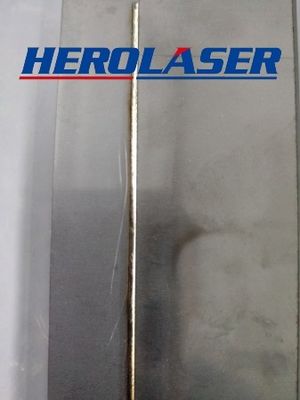

Welding samples for reference
