Handheld 1000W 1500W 2000W Laser Welding Machine For Mold Repairing

  • Handheld 1000W 1500W 2000W Laser Welding Machine For Mold Repairing
  • Handheld 1000W 1500W 2000W Laser Welding Machine For Mold Repairing
  • Handheld 1000W 1500W 2000W Laser Welding Machine For Mold Repairing
  • Handheld 1000W 1500W 2000W Laser Welding Machine For Mold Repairing
  • Handheld 1000W 1500W 2000W Laser Welding Machine For Mold Repairing
Place of Origin CHINA
Brand Name HEROLASER
Certification CE, ISO, FDA, SGS
Model Number ML-1000
Minimum Order Quantity 1 Set
Price Negotiable
Packaging Details Export Plywood Box
Delivery Time 10-15 days
Payment Terms Western Union, L/C, T/T, MoneyGram
Supply Ability 200 Sets per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Laser Source IPG, MAX, Raycus, RECI Key Words Portable Handheld Laser Welder, Flexible Handheld Laser Welding, Fiber Laser Mold Welding, Flexible Mold Laser Repairing
Pulse Width 0.5~20ms Certification CE,ISO,SGS
Condition New Warranty 2 Years
Single Pulse Energy 80J Wavelength 1064nm
Focal Spot Diameter 0.2-3.0mm Application Laser Welding Machine,Welding Products,hot Selling Laser Welding Machine For Metal Stainless Steel Repairing,advertisement Word And All Kinds Of Metal Marking LED Metal,Mold Repair Laser Welding
Cooling System Water Cooling Welding Depth 0.1-3.5mm
After-sales Service Provided Engineers Available To Service Machinery Overseas,Overseas Third-party Support Available Pulse Frequency 0.1-50Hz
Laser Wavelength 1064nm Power Supply 220v/50Hz,50/60Hz,380V/50/60HZ
Laser Type IPG Fiber Laser Generator
High Light

Handheld 2000W Laser Welding Machine

,

Mold Repairing 2000W Laser Welding Machine

,

Handheld 1000W Laser Welding Machine
Leave a Message
Product Description

Flexible Handheld Laser Welder For Mold Repairing Fiber Laser Welding Machine 1000W 1500W 2000W





Machine Advantages
1. The welding seam is smooth and beautiful, which reduces the subsequent grinding process and saves time and cost.

2. Easy to operate, no need welding work license, unskilled operator can also weld products beautifully.

3. No effect for etch after welding , low oxidation rate ,the color of the processing parts is intact .

4. The welding seam is smooth and beautiful, which reduces the subsequent grinding process and saves time and cost.

5. The welding speed is 2-10 times faster than the traditional welding speed. It can help you to save at least two welding operators a year.

6. Laser welding consumes less material and has a long-life, Safer and more environmentally friendly.



Applicable to material and fields
Ambry industry, railings of stairs and elevator , shelves, oven, stainless steel guardrail , distribution box, stainless steel home supplies etc.

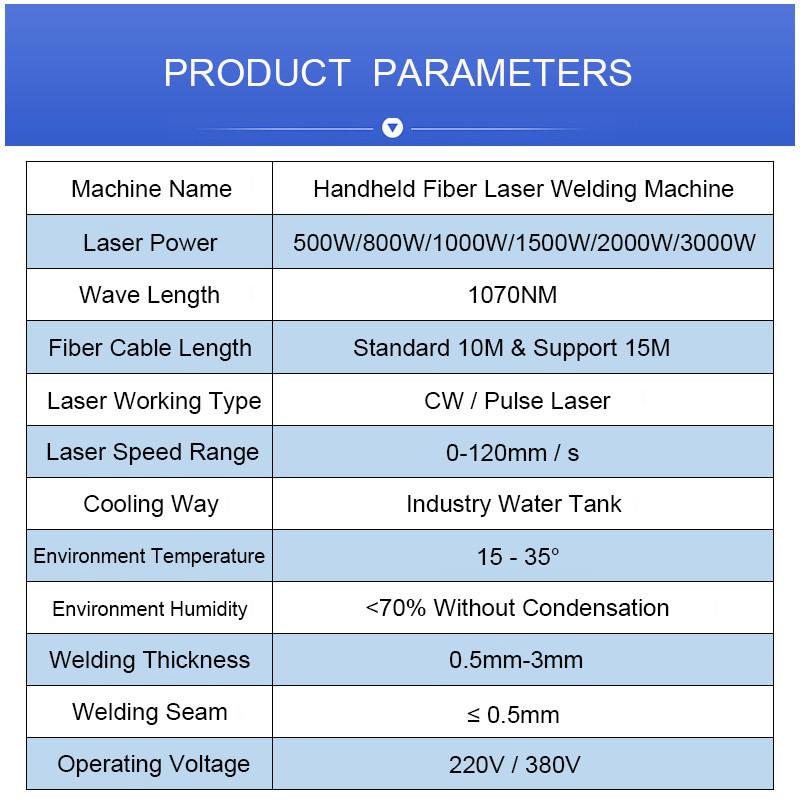

Technical specifications

No. Item ML-WF-1000W ML-WF-1500W ML-WF-2000W
1 Laser Power 1000W 1500W 2000W
2 laser Wavelength 1070 NM 1070 NM 1070 NM
3 Fiber Cable length 10 meters 10 meters 10 meters
4 Cooling method Water Water Water
5 Voltage 220V 220V 380V
6 Power consumption 5KW 7KW 9KW
7 Frequency 50/60 HZ 50/60 HZ 50/60 HZ
8 Currency 23A 32A 23A
9 Laser gun Motor/lens wobble Motor/lens wobble Motor/lens wobble
10 Focus length 150mm 150mm 150mm
11 Cryogenic water flow 70 L/min 70 L/min 83 L/min
12 Room temperature water flow 15 L/min 18 L/min 18 L/min
13 water distilled water
14 laser Control method laser enable+ security lock+ metal switch/ safety clamp
15 Touch screen PLC screen and board
16 Wire feeder auto feeding and drawback



Welding data:

Material Protective gas Welding depth 500W 1000W 1500W 2000W



Aluminum



N2

 1.0   √ √ √
1.2   √ √ √
1.5     √ √
2.0     √ √
2.5       √





Stainless Steel





Argon

 0.5 √ √ √ √
0.8 √ √ √ √
1.0 √ √ √ √
1.2   √ √ √
1.5   √ √ √
2.0   √ √ √
2.5     √ √
3.0       √





Carbon steel





CO2

 0.5 √ √ √ √
0.8 √ √ √ √
1.0 √ √ √ √
1.2   √ √ √
1.5     √ √
2.0     √ √
2.5     √ √
galvanized sheet

Argon



 0.5 √ √ √ √
0.8 √ √ √ √
1.0   √ √ √
1.2   √ √ √
1.5     √ √
2.0       √
2.5       √

Remark: welding depth is not equal to material thickness, which of 6mm can be weld by 2000W model.
