Water Cooling ISO Approve Portable Laser Marker , 50W Laser Engraving Machine

Place of Origin China
Brand Name Herolaser
Certification CE, ISO, FDA
Model Number DX-CO2-W50
Minimum Order Quantity 1 Set
Price Negotiable
Packaging Details Wooden case package
Delivery Time 12 days
Payment Terms T/T, Western Union
Supply Ability 600 set per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Laser Wavelength 10.64μm Laser Repetition Rate ≤100kHz
Standard Engraving Range 110*110mm Minimum Line Width 0.10mm
Total Power 6000W Cooling System Water Cooling
Output Power 50W Engraving Depth ≤ 8mm
High Light

ISO portable laser marker


50W portable laser marker


50w laser engraving machine

Leave a Message
Product Description

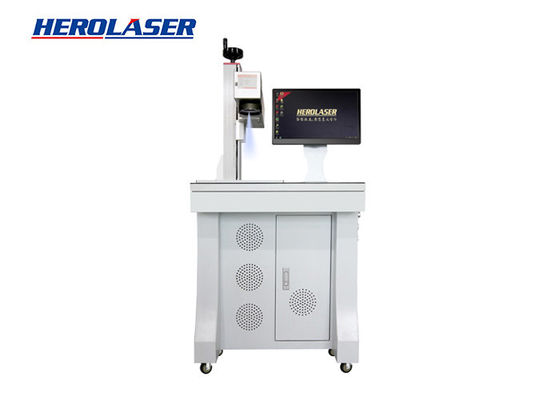

CO2 Laser Engraver Laser Marker fits Glass, Plastic, Wood, Non Metal 50W, 110×110mm


Model introduction:


CO2 laser marking machine’s core optical components adopt US imported parts,US imported CO2 RF laser source, US high-speed scanning galvanometer, these ensure high-speed stability and continuous long hours work, CO2 RF laser source is a gas laser, the laser wavelength is 10.64μm, it’s intermediate infrared, CO2 lasers have relatively large power and relatively high electronic / optical conversion rate. CO2 gas is the working substance of CO2 laser source, CO2 and other auxiliary gas were being filled discharging tube, the gas molecules can release laser while heightening the electrode voltage and generating glow discharge in discharge tube; It will can be laser processing after the releasing laser energy expanded and focused, and then deflected by scanning galvanometer .Marking software runs on WINDOWS platform, Chinese interface, compatible with AUTOCAD, CORELDRAW, PHOTOSHOP and other software file formats, such as PLT, PCW, DXF, BMP, etc., but also can directly use SHX, TTF font. Design any graphic by computer , easy operation, power is controlled by software, continuously adjustable.


Model features:


  1. High precision marking, fast speed, engraving depth can be freely controlled.
  2. The laser power can be applied to a variety of non-metallic products for carving and cutting.
  3. No consumables, low processing costs - the operating life of the laser is up to 20000-30000 hours.
  4. Marking clear, wear-resistant, carving and cutting efficiency, environmental protection, energy saving.


Technical specifications:


S.No Item Specifications
1 Type DX-CO2-W50
2 Laser output power 50W
3 Laser wavelength 10.64μm
4 Laser repetition rate ≤100kHZz
5 Standard engraving range 110*110mm / 650*650mm (optional)
6 Minimum line width 0.10mm
7 Repeatability ±0.01mm
8 Total power 6kW
9 Engraving depth ≤ 8mm
10 Minimum character 0.4mm
11 Engraving line speed ≤7000mm/s
12 Power requirement 220V / Single phase /50Hz /20A
13 Light path system size 1200mm*190mm*200mm
14 Control system 600mm*600mm*800mm
15 Cooling system water cooling


Application scope:


Craftwork gifts, furniture, leather garments, advertising signs, model making, food packaging, electronic components, medicines packaging, printing plate, outer nameplate. Suitable materials include wood products, paper, fabric leather, organic glass, epoxy, acrylic, polyester resin and other non-metallic materials.

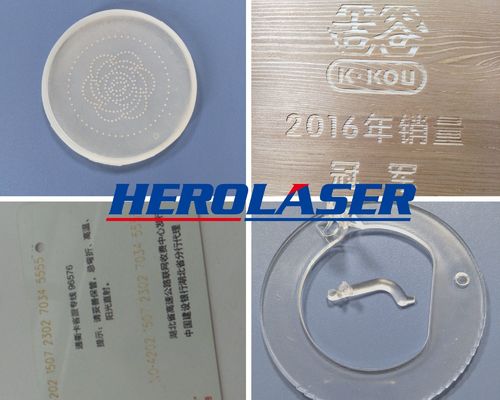

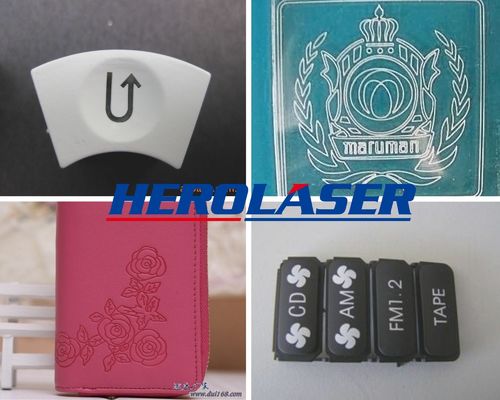

Marking samples for reference:


Water Cooling ISO Approve Portable Laser Marker , 50W Laser Engraving Machine 0



1. How is the payment?
  • 30% deposit before production and the balance 70% before shipment
2. How is the delivery and shipment?
  • Ship in 7 days after 100% payment;
  • Plywood box packaging
3. How will you guarantee aftersales services?
  • We offer two warranty for laser source, one year for whole machine and lifetime maintenance services.
  • Engineers available to service machinery overseas
  • Free technical training in our factory
  • Free sample can be sent to you
  • Professional technical team 24 hours online
4. How about your presales service?
  • Speeding offer within 8 hours quick response and free consulting.
  • Free sample marking or testing is available
  • Progressing solution design to all clients, including distributors and end users.
