Enclosure Type Galvo Head Co2 Laser

Place of Origin China
Brand Name Herolaser
Certification CE, FDA
Model Number ML-MC-KF-00-HW30
Minimum Order Quantity 1 SET
Price Negotiable
Packaging Details 1110mm x 860mm x 1520mm in wood box
Delivery Time 12 days
Payment Terms T/T, Western Union
Supply Ability 600 sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Laser Type CO2 Laser Wavelength 10.6 µm (nominal)
Min Beam Diameter < 100 µm Product Name CO2 Laser Marking Machine
Applicable Material Non-metal Materials After-sales Service Provided Engineers Available To Service 24 Hours Online
Cooling System Fully Water Cooled Warranty Coverage(Parts & Labor) 1 YEAR
High Light

Enclosure Type Galvo Head Co2 Laser

,

FDA galvo head co2 laser

,

Enclosure Type co2 marking machine

Leave a Message
Product Description

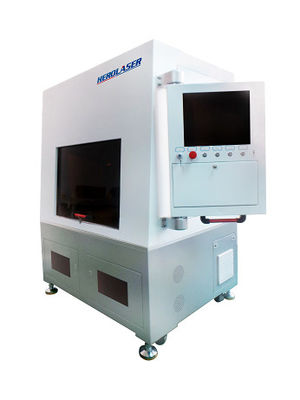

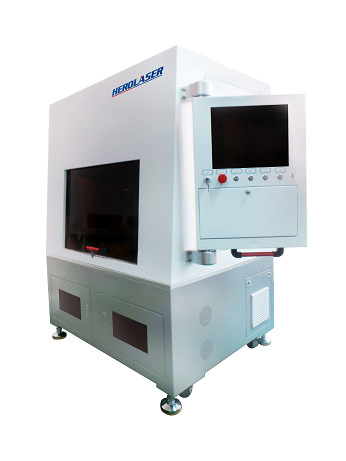

Enclosure Type CO2 Laser Marking Machine with Efficient Water Cooling System



Product introdution:



CO2 laser marking and cutting machine is a turnkey laser engraving and cutting system.
CO2 laser marking machine adopts high-speed galvanometer scanner, faster than gantry laser cutting machine engraving and cutting speed, suitable for holiday greeting cards, jeans, leather, nylon 3D laser cutting.



Characteristics and features:



  • Maximum engraving depth up to 0.04" to 0.15"
  • The life of the CO2 laser generator can be up to about 50,000 hours, maintenance free
  • Laser marking range up to 24"x 24"
  • Support CAD file (DXF) and PLT/BMP/JPG/AI format
  • Can mark 1D, 2D barcode, GS1 code, product serial number
  • Laser marking software can be customized to meet the unique needs of customers
  • The software supports serial port and TCP/IP communication with client-server



Technical details:



Laser Type CO2 Laser
Wavelength 10.6 µm (nominal)
Min Beam Diameter < 100 µm
Pulse Width Adjustment Ranges 4ns, 8ns, 14ns, 20ns, 30ns,50ns, 100ns, 200ns
Pulse Frequency 20 - 100 kHz
Output Power 200 Watts
Repetition Accuracy ± 0.0004'' (0.01mm)
Cooling System Fully Water Cooled
Operation System
WINDOWS 7 or 10
Profile Laser Visible, red-beam pilot laser for easy positioning of the workpiece
Electrical Connection 110 - 230 V (± 10%) 16 A, 50/60 Hz
Power Consumed 4kW
Weight (unpacked) 220 lbs (100kg)
Warranty Coverage(Parts & Labor) 1-year
Laser Safety Compliance FDA
Running Temperature 15℃-35℃ / 59°-95°F



Application:



It is widely used in
-- Industrial Gifts
- garment leather
-- Food packaging
-- Electronic components
Semiconductor, PCB
-- Crystal Glass
- Electronic equipment
- plastic film buttons, etc



Marking and engraving materials can
- Paper, leather, wood, plastic, plexiglass
- Fabric, acrylic, wood, bamboo, rubber
- Crystal, jade, ceramics, glass, artificial stone, etc



Marking samples for reference:

Enclosure Type Galvo Head Co2 Laser 0

FAQ

1. How is the payment?
  • 30% deposit before production and the balance 70% before shipment
2. How is the delivery and shipment?
  • Ship in 7 days after 100% payment;
  • Plywood box packaging
3. How will you guarantee aftersales services?
  • We offer two warranty for laser source, one year for whole machine and lifetime maintenance services.
  • Engineers available to service machinery overseas
  • Free technical training in our factory
  • Free sample can be sent to you
  • Professional technical team 24 hours online
4. How about your presales service?
  • Speeding offer within 8 hours quick response and free consulting.
  • Free sample marking or testing is available
  • Progressing solution design to all clients, including distributors and end users.
