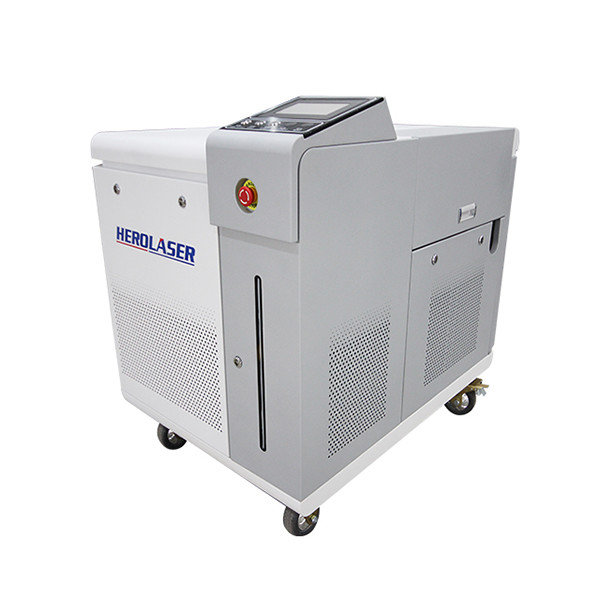

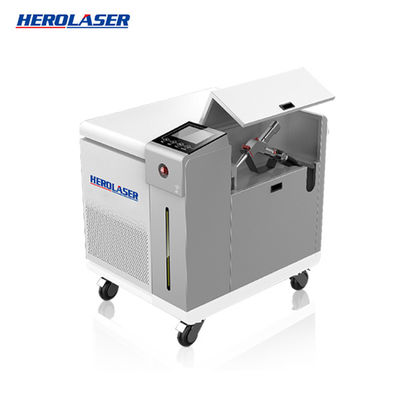

HeroLaser 3000W Handheld Fiber Laser Welding Machine AC220V For Metal

  • HeroLaser 3000W Handheld Fiber Laser Welding Machine AC220V For Metal
  • HeroLaser 3000W Handheld Fiber Laser Welding Machine AC220V For Metal
  • HeroLaser 3000W Handheld Fiber Laser Welding Machine AC220V For Metal
  • HeroLaser 3000W Handheld Fiber Laser Welding Machine AC220V For Metal
  • HeroLaser 3000W Handheld Fiber Laser Welding Machine AC220V For Metal
Place of Origin China
Brand Name Herolaser
Certification ISO9001
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Wooden case
Delivery Time 30-45 days
Payment Terms L/C, T/T
Supply Ability 20 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Hand-held Laser Welding Machine Welding Power 500W、800W、1000W、2000W、3000W
Laser Wavelength 1070NM Welding Speed 0~120 Mm/s
Cooling Mode Industrial Thermostatic Water Tank Operating Ambient Temperature 15~35 ℃
Welding Thickness 0.5-3mm Welding Gap Requirements ≤0.5mm
Machine Size(mm) 1050*670*1200 Machine Weight 240kg
Highlight

3000W Fiber Laser Welding Machine

,

Fiber Laser Welding Machine AC220V

,

HeroLaser Metal Laser Welding Machine
Leave a Message
Product Description

HeroLaser 3000w Metal Handheld Fiber Laser Welding Machine Stainless Steel Carbon Steel Aluminum



Parameter
No.
Item
Parameter
1
Name
Hand-held Laser Welding Machine
2
Welding Power
500W,800W,1000W,2000W,3000W
3
Laser wavelength
1070NM
4
Fiber Length
Normal:10M Max Support:15M
5
Operation Mode
Continuous / Modulation
6
Welding Speed
0~120 mm/s
7
Cooling Mode
Industrial Thermostatic Water Tank
8
Operating Ambient Temperature
15~35 ℃
9
Operating Ambient Humidity
< 70%(No condensation)
10
Welding Thickness
0.5-3mm
11
Welding Gap Requirements
≤0.5mm
12
Operating Voltage
AC220V
13
Machine Size(mm)
1050*670*1200
14
Machine Weight
240kg
Laser Welding Head Depth Data (Wobble Head)
Power
SS
Carbon Steel
Galvanized Plate
500W
0.5-0.8mm
0.5-0.8mm
0.5-0.8mm
800W
0.5-1.2mm
0.5-1.2mm
0.5-1.0mm
1000W
0.5-1.5mm
0.5-1.5mm
0.5-1.2mm
2000W
0.5-3mm
0.5-3mm
0.5-2.5mm
Products Description
Herolaser Laser Handheld Welding Machine

A leader and navigator in the field of handheld laser welding

Hero-laser handheld laser welding machine adopts the latest generation of fiber laser and is equipped with independently developed wobble welding head to fill the gap of handheld welding in the laser equipment industry.
It has the advantages of simple operation, beautiful weld line, fast welding speed and no consumables.
It can weld thin stainless steel plate, iron plate,galvanized plate and other metal materials, which can perfectly replace the traditional argon arc welding Electric welding and other processes.
Hand held laser welding machine can be widely used in complex and irregular welding processes in cabinet, kitchen and bathroom, stair elevator, shelf, oven, stainless steel door and window guardrail, distribution box, stainless steel home andother industries.
HeroLaser 3000W Handheld Fiber Laser Welding Machine AC220V For Metal 0
HeroLaser 3000W Handheld Fiber Laser Welding Machine AC220V For Metal 1
Characteristics

Independent R&D Wobble welding head


The wobble welding joint is independently developed, with swing welding mode, adjustable spot width and strong welding fault tolerance, which makes up for the disadvantage of small laser welding spot, expands the tolerance range and weld width of machined parts, and obtains better weld line forming.
HeroLaser 3000W Handheld Fiber Laser Welding Machine AC220V For Metal 2

Technological Characteristics


The weld line is smooth and beautiful, the welded workpiece is free of deformation and welding scar, the welding is firm, the subsequent grinding process is reduced, and the time and cost are saved.
HeroLaser 3000W Handheld Fiber Laser Welding Machine AC220V For Metal 3

Advantages of Handheld Laser Welding Machine


Simple operation, one-time molding, can weld beautiful products without professional welders

Wobble handheld laser head is light and flexible, which can weld any part of the workpiece,

making the welding work more efficient, safe, energy-saving and environmental protection.
HeroLaser 3000W Handheld Fiber Laser Welding Machine AC220V For Metal 4
Applicable Industry
HeroLaser 3000W Handheld Fiber Laser Welding Machine AC220V For Metal 5



Ship

HeroLaser 3000W Handheld Fiber Laser Welding Machine AC220V For Metal 6



Auto Parts

HeroLaser 3000W Handheld Fiber Laser Welding Machine AC220V For Metal 7



Hardware Fitting

HeroLaser 3000W Handheld Fiber Laser Welding Machine AC220V For Metal 8



Metal Processing

HeroLaser 3000W Handheld Fiber Laser Welding Machine AC220V For Metal 9



Elevator Manufacturing

HeroLaser 3000W Handheld Fiber Laser Welding Machine AC220V For Metal 10



Domestic Appliance

HeroLaser 3000W Handheld Fiber Laser Welding Machine AC220V For Metal 11



Medical Equipment

HeroLaser 3000W Handheld Fiber Laser Welding Machine AC220V For Metal 12



aviation

HeroLaser 3000W Handheld Fiber Laser Welding Machine AC220V For Metal 13



Machinery Manufacture

Company Information
HeroLaser 3000W Handheld Fiber Laser Welding Machine AC220V For Metal 14

ABOUT HEROLASER
Shenzhen Herolaser Equipment Co., Ltd was established in 2004, is a national high-tech enterprise in China, engaged in the
research and development, production and marketing of laser equipment group of companies, has formed a complete series of
industrial laser equipment supply platform.

With a team of professional technical personnel,rich management experience, clear development direction to ensure our rapid growth
in the rapid development of the laser industry,we have established branches in Jiangsu, Zhejiang,Shandong, Chongqing and other
regions in China, and we have exported to 60 countries and have overseas agents in 10 countries. Our main products is Laser
Cleaning Machine / Laser Marking Machine / Laser Welding Machine / Laser Cutting Machine.

Products are widely used in electrical appliances, mobile communications, hardware products, tool accessories, precision
equipment, jewelry, glasses and watches, integrated circuits, craft gifts, plastic molds, medical equipment and other industries.
Certification
HeroLaser 3000W Handheld Fiber Laser Welding Machine AC220V For Metal 15
Packaging & Shipment
HeroLaser 3000W Handheld Fiber Laser Welding Machine AC220V For Metal 16
HeroLaser 3000W Handheld Fiber Laser Welding Machine AC220V For Metal 17
HeroLaser 3000W Handheld Fiber Laser Welding Machine AC220V For Metal 18
HeroLaser 3000W Handheld Fiber Laser Welding Machine AC220V For Metal 19
HeroLaser 3000W Handheld Fiber Laser Welding Machine AC220V For Metal 20
HeroLaser 3000W Handheld Fiber Laser Welding Machine AC220V For Metal 21
Our Services

---Pre-Sales Service


① Free pre-sales 7*24 hours rapid response services / cousulting ② Free sample testing / inspection ③ Free design of fixtures as customers / distributor required ④ Strict quality control for our products ⑤ Quick delivery time


---After-sales Services

① 2 year guarantee for laser source(people damaged are charged)
② Full technical support / by e-mail, call and video ③ Spare parts supply. ④ Free online training installation and operation ⑤ 12 hours quick feedback & after-sales services ⑥ ODM/OEM service

FAQ
1. What model does Herolaser produce?
Production of Laser Welding series, Laser Cleaning series, Laser Cutting series and Laser New energy automation, etc.

2. What are the payment methods of Herolaser Company?
T/T, LC, CAD, OA, Trade Insurance, Alibabapay

3. Does Herolaser accept Acceptance?
Yes, we accept bank acceptances within 6 months, not commercial acceptances.

4. Can I visit the factory?
Available to have a visit to our factory at any time.

5. What can I get with the purchase of equipment?
Each machine has a set of standard accessories.

6. Can I go to the factory to test the machine before shipment?
Of course you can.

7. How is the delivery and shipment?
Ship in 7 days after 100% payment; Packaged with Plywood box.

8. How about your pre-sales service?
Provide quick response and free consulting services within 8 hours.

9. How will you guarantee after-sales services?
We offer two years warranty for laser source, one year for the machine.

10. How will you guarantee after-sales services?
We offer two years warranty for laser source, one year for the machine.
