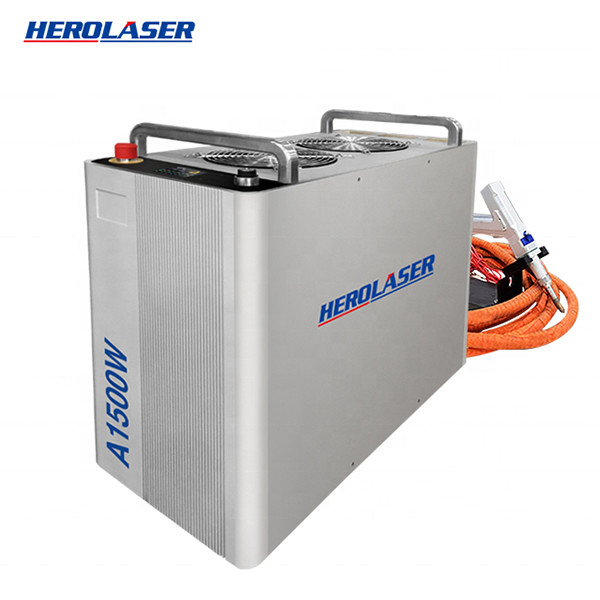

Herolaser Air Cooled Handheld 1500W Laser Welding Machine

Place of Origin China
Brand Name Herolaser
Certification ISO9001
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Wooden caseParameter Machine Parameters Size 650x300x621[mm](L×W×H) Weight 75[kg] Optical Parameters Output Power (Watt) 1500W Working Mode CW/Modulating Pulse Linear Array/Timing Output Power Adjusting Range (%) 1-100% Laser Wavelength (nm) 1075 ± 10 nm
Delivery Time 30-45 days
Payment Terms L/C, T/T
Supply Ability 20 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
ISO9001 650x300x621[mm](L×W×H) Weight 75[kg]
Output Power (Watt) 1500W Indicating Laser Wavelength 650
High Light

Handheld 1500W Laser Welding Machine

,

Air Cooled 1500W Laser Welding Machine

,

Herolaser 1500W Laser Welder

Leave a Message
Product Description

1500w Laser Hand-held Welding Machine Air Cooled Portable Fiber Welder Gun Head Metal Machine



Parameter
Machine Parameters
Size
650x300x621[mm](L×W×H)
Weight
75[kg]
Optical Parameters
Output Power (Watt)
1500W
Working Mode
CW/Modulating Pulse Linear Array/Timing
Output Power Adjusting Range (%)
1-100%
Laser Wavelength (nm)
1075 ± 10 nm
Output Power Undulate Range
<5%
Max Modulation Frequency
50KHZ
Laser Response Time
<10us
Indicating Laser Wavelength
650
Indicating Light Adjusting Range
<1mW
Conduction System Parameters
Port Type
Automatic Wire Feeding Welding Head
Collimating Focal Distance
50mm
Focusing Distance
150mm
Transmission Length
Standard 5±0.5m, (Optional 10m)
Conduction System Parameters
Cooling and Protection Gas
Inert Gas
Working Ambient Temperature
10-50 ℃
Working Ambient Humidity
≤85 degree
Input Voltage
220 VAC/50Hz/60Hz
Machine Power
≤ 4.8KW




Laser Head Welding Depth Data (Wobble Head)

Power
SS
Carbon Steel
Galvanized Plate
500W
0.5-0.8mm
0.5-0.8mm
0.5-0.8mm
800W
0.5-1.2mm
0.5-1.2mm
0.5-1.0mm
1000W
0.5-1.5mm
0.5-1.5mm
0.5-1.2mm
2000W
0.5-3mm
0.5-3mm
0.5-2.5mm
Products Description

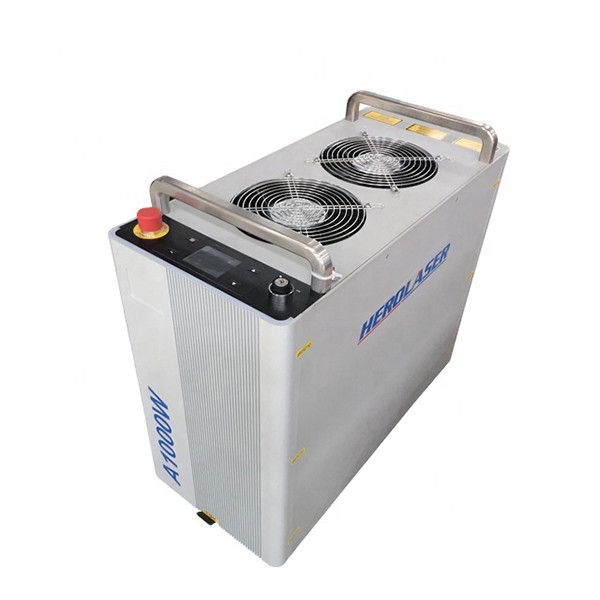

Air-cooling Handheld Fiber Laser Welding Machine


On present sales of 1000W and 1500W air-cooling laser welders. The advantage lies in the high internal integration, small volume and only 75KG weight, which is convenient for transportation and does not need to replace water.
Herolaser Air Cooled Handheld 1500W Laser Welding Machine 0
Herolaser Air Cooled Handheld 1500W Laser Welding Machine 1
Herolaser Air Cooled Handheld 1500W Laser Welding Machine 2
Characteristics

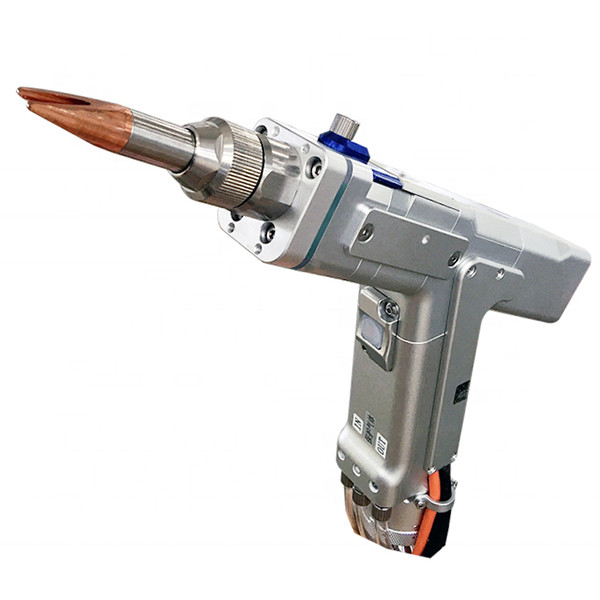

Independent R&D Wobble welding head


Independent R&D Wobble welding head, swing welding mode, laser spot width can be adjusted, welding fault tolerance is strong,make up for the disadvantage of laser welding light spot too small , expand the machining parts tolerance range and weld width, to get better weld forming.
Herolaser Air Cooled Handheld 1500W Laser Welding Machine 3

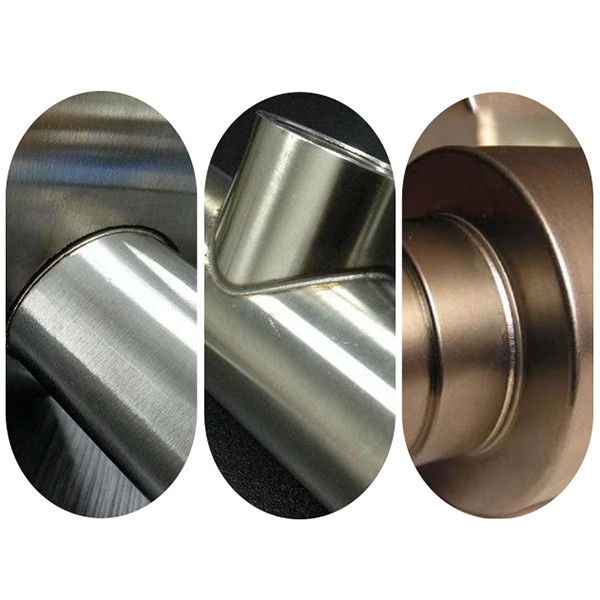

Technological Characteristics


The welding seams are smooth and beautiful, the pieces have no deformation, no welding scar, and the welding is firm enough to reduce the subsequent grinding process, saving time and cost.
Herolaser Air Cooled Handheld 1500W Laser Welding Machine 4

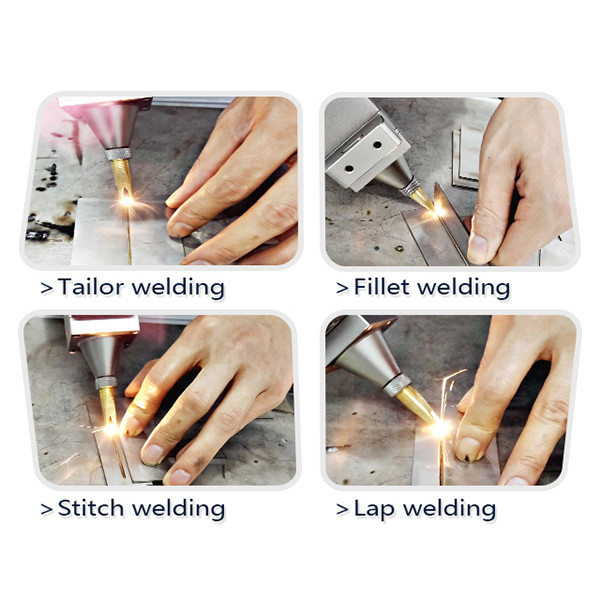

Advantages of handheld laser welding machine


Simple operation, can be easily operated with simple training; beautiful products can be welded one take without a master

WOBBLE handheld laser head, light and flexible, can weld any part of the workpiece, making the welding work more efficient,safe,energy-saving and environmentally friendly.
Herolaser Air Cooled Handheld 1500W Laser Welding Machine 5
Applicable Industry
Herolaser Air Cooled Handheld 1500W Laser Welding Machine 6

Domestic Appliance


Herolaser Air Cooled Handheld 1500W Laser Welding Machine 7

Air & Ship


Herolaser Air Cooled Handheld 1500W Laser Welding Machine 8

Auto Parts


Herolaser Air Cooled Handheld 1500W Laser Welding Machine 9

Machinery Manufacture


Herolaser Air Cooled Handheld 1500W Laser Welding Machine 10

Medical Equipment


Herolaser Air Cooled Handheld 1500W Laser Welding Machine 11

Elevator Manufacturing
