Herolaser Handheld Laser Welding Machine Metal Sheet Aluminium 500w 1000w
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Welding Thickness | 0.1-3.3mm | Laser Wavelength | 1064nm |
|---|---|---|---|
| Technical | Continuous Wave Laser | Welding Depth | 0.5 - 2.5mm |
| Welding Gap | ≤0.5mm | Welding Speed | 0-120mm/s |
| Application Material | Aluminum Stainless Steel Carbon Steel Copper Iron | Cooling Method | Water Cooliing |
| Control | Manual | Dimension | 1100mm*600mm*1700mm |
| Highlight | 1000w Metal Sheet Handheld Laser Welder,Herolaser Handheld Laser Welder,1064nm Handheld Laser Welder For Aluminum |
||
Product Description
Product Description

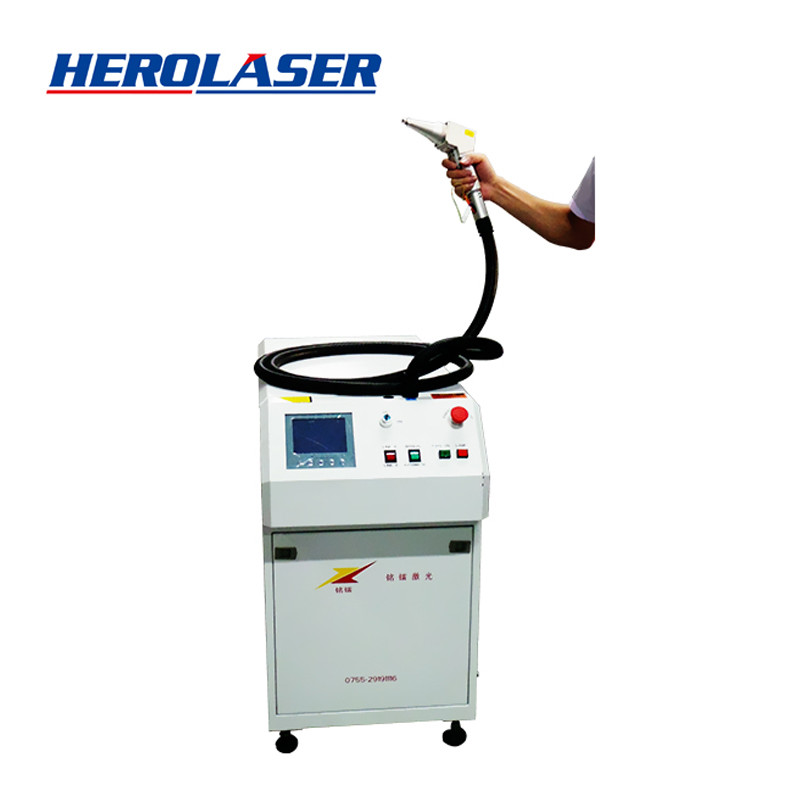

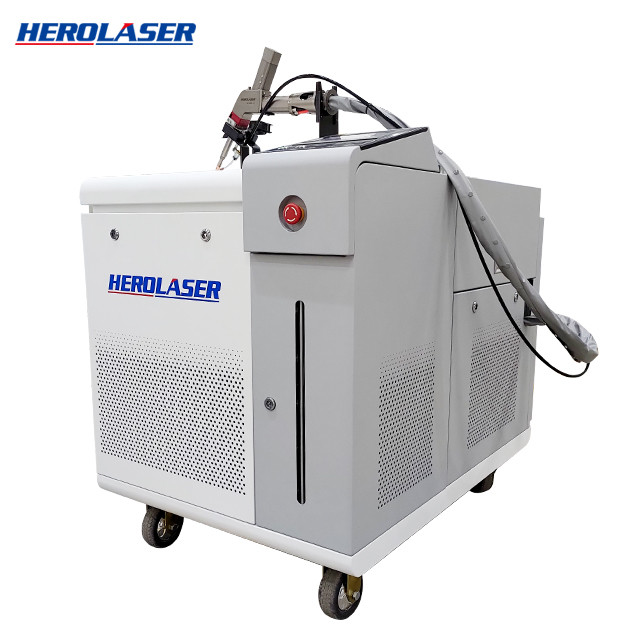

Herolaser Handheld Laser Welding Machine Metal Sheet Aluminium 500w 1000w
Herolaser specially engaged in the research and development, production and sales of laser
processing equipments and laser component.
14 years experiences in laser field, Herolaser has formed many product series , with specialized
technical personnel, experienced management and clear development direction which guarantee the
rapid growth in laser industry.
We have 4 kinds of machines :
1. Laser Marking/Engraving Machine;
2. Laser Welding Machine;
3. Laser Cutting Machine;
4. Laser Cleaning Machine.
Machine Features for handheld laser welding machine
1. welding by optical fiber, One-time forming workpiece, workpiece not deformed
2. No welding scars, smooth and beautiful
3. Welding welding is very firm
4. The welding head can be replaced to meet various welding needs
5. No technical requirements, anyone can weld perfectly
6. Almost no consumables, no grinding is required in processing process, material cost is low
7. The welding speed is fast, 1 worker can be used as 5 workers, labor cost is low
8. No dust and gas pollution, very environmentally friendly
2. No welding scars, smooth and beautiful
3. Welding welding is very firm
4. The welding head can be replaced to meet various welding needs
5. No technical requirements, anyone can weld perfectly
6. Almost no consumables, no grinding is required in processing process, material cost is low
7. The welding speed is fast, 1 worker can be used as 5 workers, labor cost is low
8. No dust and gas pollution, very environmentally friendly
| Model | ML-500w |
| Average laser power | 500w |
| Max laser power | 500w |
| Max energy of single pulse | 75J |
| Laser wavelength | 1064nm |
| Laser weld depth | ≤ 2mm |
| Pulse width | 0.3-20ms |
| Laser welding frequency | 0.5 -100HZ |
| Spot size range | 0.2-2mm |
| Welding wire | 0.1-0.4mm |
| Power Supply | 380VAC ± 10% / 50-60HZ |
| Power Consumption | 2KW |
| Water pressure protection | 0.025MPa |
| Cooling water temperature | 35 degrees |
| Temperature protection | 45 degrees |
| Cooling water flow | 10L/min |
| Dimensional | 1100mm x 900mm x 1200mm |
| Weight | 320kg |
| Cooling Way | Water cooling |
| Laser Type | Pulse |
Machine Features for handheld laser welding machine
1. welding by optical fiber, One-time forming workpiece, workpiece not deformed
2. No welding scars, smooth and beautiful
3. Welding welding is very firm
4. The welding head can be replaced to meet various welding needs
5. No technical requirements, anyone can weld perfectly
6. Almost no consumables, no grinding is required in processing process, material cost is low
7. The welding speed is fast, 1 worker can be used as 5 workers, labor cost is low
8. No dust and gas pollution, very environmentally friendly

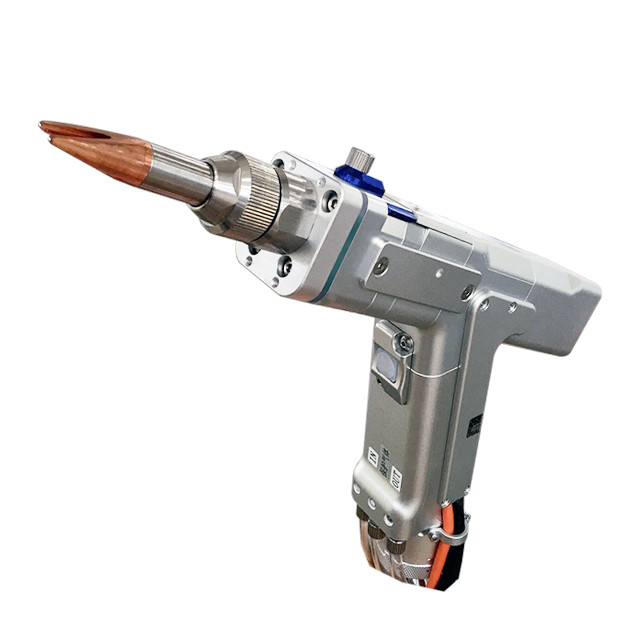

Gun Features for handheld laser welding machine
1) Wobble technology, swing welding, welding spot can be adjusted, Make up for the small defect of traditional welding spot, Strong fault tolerance, Increased workpiece tolerance range and weld width
2) Automatic wire feeding design, Stable and continuous wire feeding makes welding seam more beautiful
3) Replaceable copper nozzles, Can meet various welding needs and various shapes.
4) Water cooling design for gun, protective gas design for workpiece, And temperature detection system
5) Except on/off button on machine, But also on/off button on welding gun, More safety for user

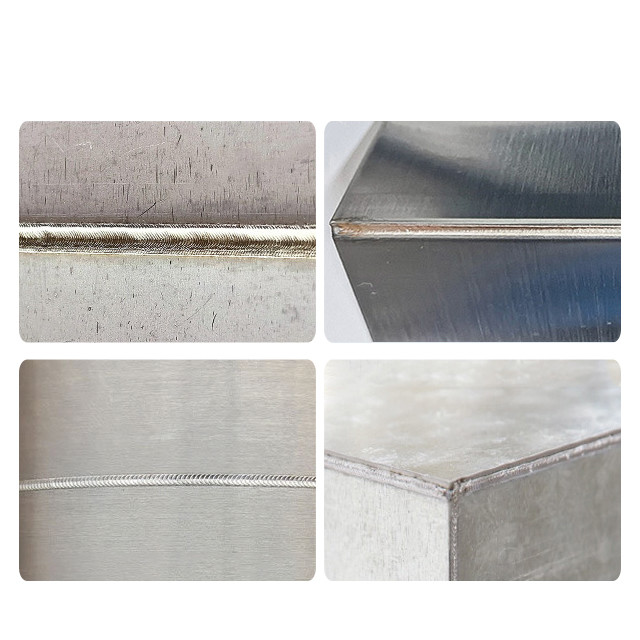

Applied to various metal material, such as stainless steel carbon steel brass copper aluminum aluminum alloy iron
(Herolaser CE ROHS Welding Device for Butt Fusion Automatic Wire Feeding Portable Laser Welding Machine)

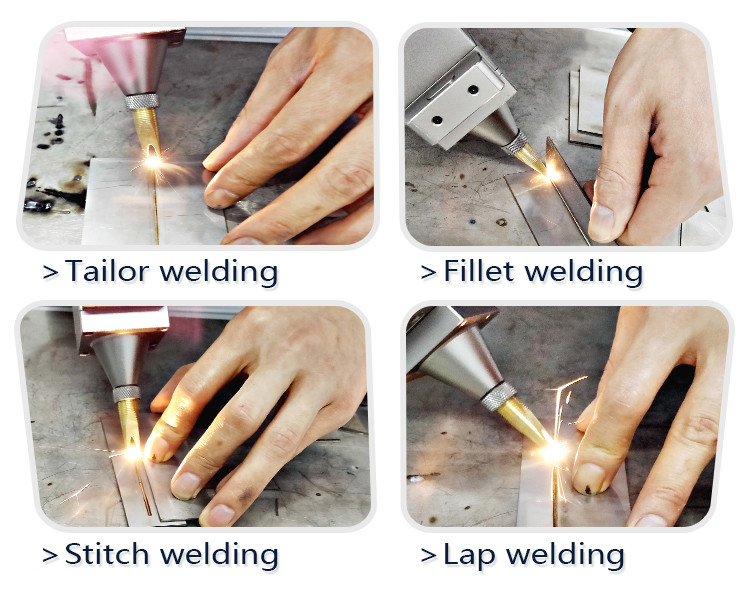

Applications
Aviation Parts Domestic Appliance
Elevator Manufacturing Auto Parts
Branches
Certificates
Company Introduction
ABOUT HEROLASER
Shenzhen Herolaser Equipment Co., Ltd was established in 2004, is a national high-tech enterprise in China, engaged in the research and development, production and marketing of laser equipment group of companies, has formed a complete series of industrial laser equipment supply platform.
With a team of 200 people professional technical engineers, Own more than 200 patents, rich management experience, clear development direction to ensure our rapid growth in the rapid development of the laser industry. We have established branches all over China, Such as Jiangsu, Zhejiang,Shandong,Chongqing. And we have exported to 60 countries and have overseas agents in 10 countries. Our main products is Laser Cleaning Machine / Laser Marking Machine / Laser Welding Machine / Laser Cutting Machine. Products are widely used in electrical appliances, mobile communications, hardware products, tool accessories, precision equipment, jewelry, glasses and watches, integrated circuits, craft gifts, plastic molds, medical equipment and other industries.
We hope to bring you the best quality and service, your recognition is our greatest support. welding machine,other welding equipment, laser welding machine,laser welding machine price,laser welding,other welding,welding robot,portable welding machine,handheld laser welding machine,welding machine price,portable laser welding machine,fiber laser welding machine,aluminium welding machine,welding machine portable,plastic welding machine,mini welding machine,lazer welding machine,fiber welding machine,china laser welding,laser welding gun,stainless steel laser welding machine,laser cold welding machine,or laser welding machine,welding equipment laser welding machine,1000w laser welding machine,automatic welding machine laser,laser welding portable,1kw handheld fiber laser welding machine,fiber cable welding machine,fiber laser cleaning welding machine,handheld fiber laser welding,fiber optic cable welding machine,laser welding machine fiber,soldering machine.
Packing & Delivery
After-sales Services
1. 2 year guarantee for laser source(people damaged are charged)
2. Full technical support / by e-mail, call and video
3. Spare parts supply.
4. Free online training installation and operation
5. 12 hours quick feedback & after-sales services
6. ODM/OEM service
FAQ
Q1:What products does Herolaser produce?
A1:Laser Welding Machine, Laser Cleaning Machine, Laser Cutting Machine, Laser Marking Machine And New Energy
Q1:Can I visit the factory?
A1:Welcome to visit us any time
Q1:Can I make my logo on device
A1:Yes, We also supply ODM/OEM service
Q1:How about your pre-sales service?
A1:① Free pre-sales 7*24 hours rapid response services / cousulting
② Free sample testing / inspection
③ Free design of fixtures as customers / distributor required
④ Strict quality control for our products
⑤ Quick delivery time
Q1:How will you guarantee after-sales services?
A1:We offer two years warranty for laser source, one year for the machine.
Q1:What are the payment methods can you accept?
A1:T/T, LC, CAD, OA, Trade Insurance, Alibabapay, Also accept bank acceptances within 6 months
A1:T/T, LC, CAD, OA, Trade Insurance, Alibabapay, Also accept bank acceptances within 6 months
