CW PW Herolaser Laser Welding Machine For Industry Stainless Steel

Place of Origin China, Shenzhen
Brand Name Herolaser
Certification ISO9001, FDA
Model Number ML-PW-1500
Minimum Order Quantity 1 Set
Price USD 4999~8600/Set
Packaging Details Wooden Case
Delivery Time 7 work days
Payment Terms L/C, D/A, D/P, T/T
Supply Ability 180 sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Welding Thickness 0-5mm Laser Wavelength 1074nm
Technical CW Welding Depth 0.5mm ~2.5mm
Welding Gap ≤ 0.5mm Welding Speed 0-120 Mm/s
Application Material Stainless Steel Cooling Method Water
Control Manual Dimension 1100*600*1700(mm)
High Light

PW Handheld Laser Welding Machine

,

CW Laser Welding Machine

,

PW Handheld Laser Welder

Leave a Message
Product Description

Product Description



Machine Features for handheld laser welding machine



1. Welding by optical fiber, One-time forming workpiece, Workpiece not deformed

2. No welding scars, smooth and beautiful

3. Welding welding is very firm

4. The welding head can be replaced to meet various welding needs

5. No technical requirements, anyone can weld perfectly

6. Almost no consumables, no grinding is required in processing process, material cost is low

7. The welding speed is fast, 1 worker can be used as 5 workers, labor cost is low

8. No dust and gas pollution, very environmentally friendly



CW PW Herolaser Laser Welding Machine For Industry Stainless Steel 0

































Model ML-500w
Average laser power 500w
Max laser power 3000w
Max energy of single pulse 75J
Laser wavelength 1064nm
Laser weld depth ≤ 2mm
Pulse width 0.3-20ms
Laser welding frequency 0.5 -100HZ
Spot size range 0.2-2mm
Welding wire 0.1-0.4mm
Power Supply 380VAC ± 10% / 50-60HZ
Power Consumption 2KW
Water pressure protection 0.025MPa
Cooling water temperature 35 degrees
Temperature protection 45 degrees
Cooling water flow 10L/min
Dimensional 1100mm x 900mm x 1200mm
Weight 320kg
Cooling Way Water cooling
Laser Type Pulse



CW PW Herolaser Laser Welding Machine For Industry Stainless Steel 1




CW PW Herolaser Laser Welding Machine For Industry Stainless Steel 2

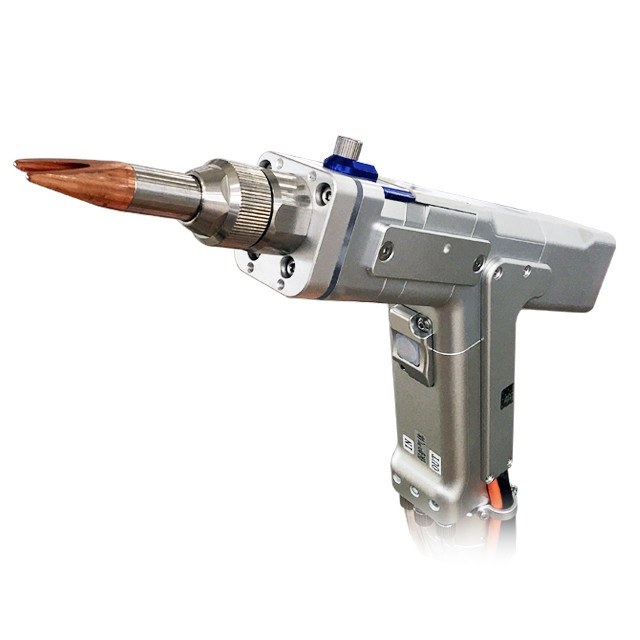

Gun Features for handheld laser welding machine



1) Small size and light weight, easy to learn, only a few hours for beginners to get started.


2) Realize the three functions of cleaning, welding and cutting at the same time uses the power of your laser for pre and post weld cleaning.

3) Adopt touch screen design, easy and quick to click and set, with real-time fault reading, feedback and alarm functions.


4) There is a process parameter library, which can realize the rapid storage and recall of cleaning process parameters.

Remote controller at the welder side for multi-parameters adjustment. Save time and effort, easy to operate.

5) Except on/off button on machine, But also on/off button on welding gun, More safety for user

CW PW Herolaser Laser Welding Machine For Industry Stainless Steel 3

CW PW Herolaser Laser Welding Machine For Industry Stainless Steel 4

CW PW Herolaser Laser Welding Machine For Industry Stainless Steel 5

CW PW Herolaser Laser Welding Machine For Industry Stainless Steel 6

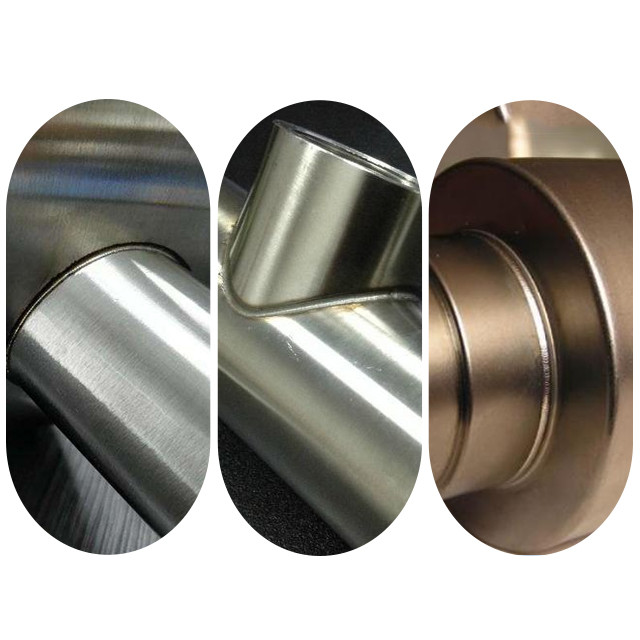

Applications

CW PW Herolaser Laser Welding Machine For Industry Stainless Steel 7 CW PW Herolaser Laser Welding Machine For Industry Stainless Steel 8

                                  Aviation Parts Domestic Appliance

CW PW Herolaser Laser Welding Machine For Industry Stainless Steel 9 CW PW Herolaser Laser Welding Machine For Industry Stainless Steel 10

                           Elevator Manufacturing Auto Parts



Branches

CW PW Herolaser Laser Welding Machine For Industry Stainless Steel 11
