Metal SS 1000w 1500w 2000w Laser Welding Machine HEROLASER 3mm

Place of Origin China, Shenzhen
Brand Name Herolaser
Certification ISO9001, FDA
Model Number ML-CW-30
Minimum Order Quantity 1 Set
Price USD 4999~8600/Set
Packaging Details Wooden Case
Delivery Time 7 work days
Payment Terms L/C, D/A, D/P, T/T
Supply Ability 180 sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Welding Thickness 0-5 Mm Laser Wavelength 1064nm~1074nm
Technical Continuous Wave / Pw Welding Depth 0.5 ~2.5mm
Welding Gap ≤ 0.5mm Welding Speed 0-120mm/s
Application Material Aluminum Stainless Steel Carbon Steel Copper Iron Cooling Method Water Cooliing
Control Manual Dimension 1100 Mm*600*1700 Mm
High Light

PW Laser Welding Machine

,

Wobble Technology Laser Welding Machine

,

3mm Handheld Laser Welding Machine

Leave a Message
Product Description

Product Description

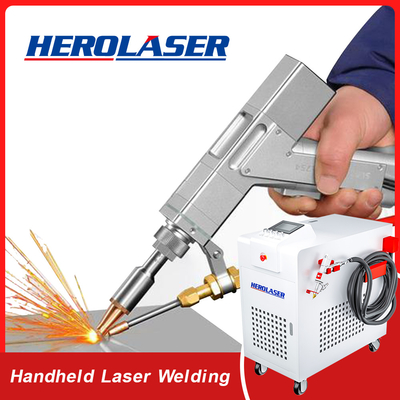

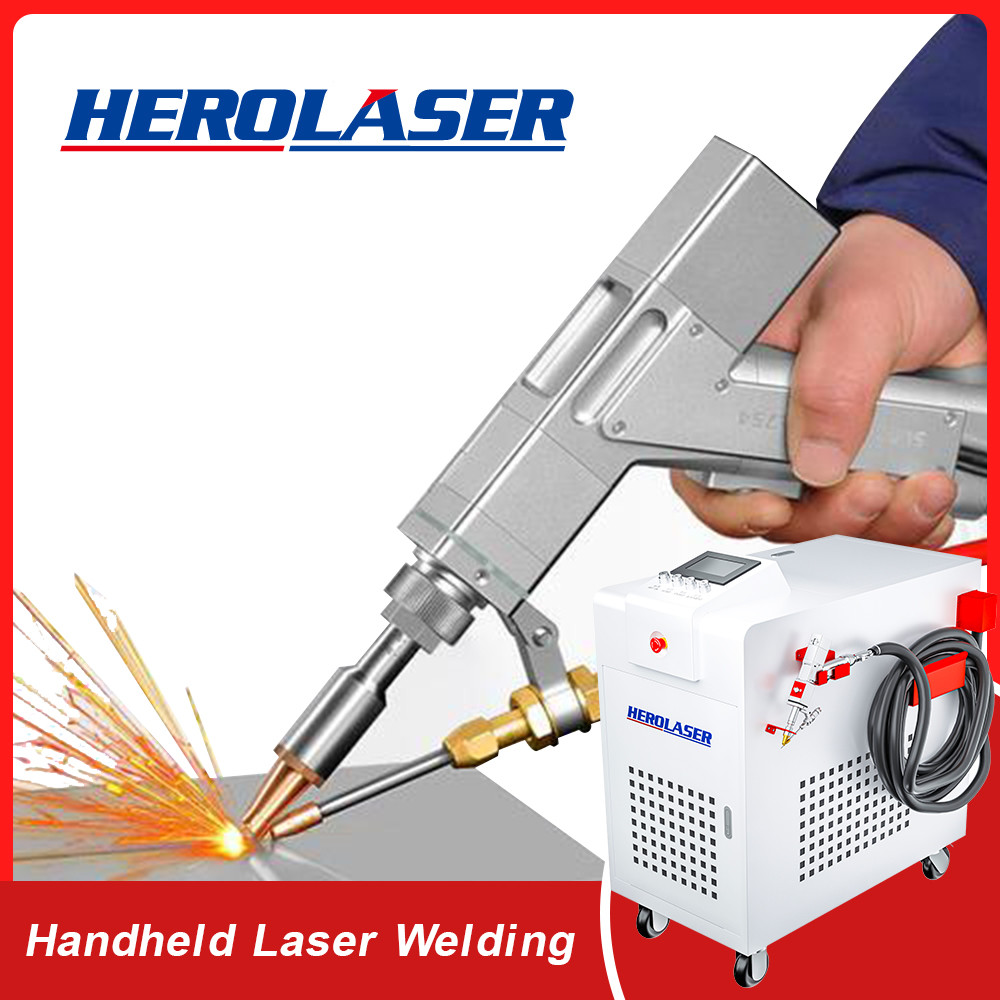

HEROLASER 3mm 1000w 1500w 2000w Laser Welding Machine for Metal SS



Model ML-500w
Average laser power 500w
Max laser power 3000w
Max energy of single pulse 75J
Laser wavelength 1064nm
Laser weld depth ≤ 2mm
Pulse width 0.3-20ms
Laser welding frequency 0.5 -100HZ
Spot size range 0.2-2mm
Welding wire 0.1-0.4mm
Power Supply 380VAC ± 10% / 50-60HZ
Power Consumption 2KW
Water pressure protection 0.025MPa
Cooling water temperature 35 degrees
Temperature protection 45 degrees
Cooling water flow 10L/min
Dimensional 1100mm x 900mm x 1200mm
Weight 320kg
Cooling Way Water cooling
Laser Type Pulse







Metal SS 1000w 1500w 2000w Laser Welding Machine HEROLASER 3mm 0



Metal SS 1000w 1500w 2000w Laser Welding Machine HEROLASER 3mm 1

Features for handheld laser welding machine



1) Wobble technology, swing welding, welding spot can be adjusted, Make up for the small defect of traditional welding spot, Strong fault tolerance, Increased workpiece tolerance range and weld width.

2) Automatic wire feeding design, Stable and continuous wire feeding makes welding seam more beautiful.

3) Replaceable copper nozzles, Can meet various welding needs and various shapes.

4) Water cooling design for gun, protective gas design for workpiece, And temperature detection system.

5) Except on/off button on machine, But also on/off button on welding gun, More safety for user.

Metal SS 1000w 1500w 2000w Laser Welding Machine HEROLASER 3mm 2

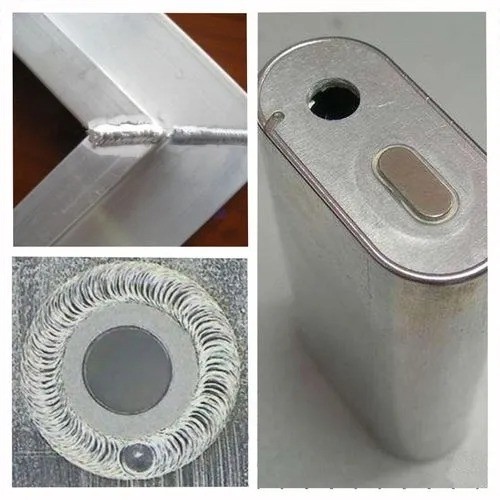

Applied to various metal material, such as stainless steel carbon steel brass copper aluminum aluminum alloy iron

(Herolaser CE ROHS Welding Device for Butt Fusion Automatic Wire Feeding Portable Laser Welding Machine)


Metal SS 1000w 1500w 2000w Laser Welding Machine HEROLASER 3mm 3

Metal SS 1000w 1500w 2000w Laser Welding Machine HEROLASER 3mm 4

Metal SS 1000w 1500w 2000w Laser Welding Machine HEROLASER 3mm 5

Applications

Metal SS 1000w 1500w 2000w Laser Welding Machine HEROLASER 3mm 6 Metal SS 1000w 1500w 2000w Laser Welding Machine HEROLASER 3mm 7

                                  Aviation Parts Domestic Appliance

Metal SS 1000w 1500w 2000w Laser Welding Machine HEROLASER 3mm 8 Metal SS 1000w 1500w 2000w Laser Welding Machine HEROLASER 3mm 9

                           Elevator Manufacturing Auto Parts



Branches

Metal SS 1000w 1500w 2000w Laser Welding Machine HEROLASER 3mm 10

Certificates

Metal SS 1000w 1500w 2000w Laser Welding Machine HEROLASER 3mm 11

Company Introduction

Metal SS 1000w 1500w 2000w Laser Welding Machine HEROLASER 3mm 12

ABOUT HEROLASER



Shenzhen Herolaser Equipment Co., Ltd was established in 2004, is a national high-tech enterprise in China, engaged in the research and development, production and marketing of laser equipment group of companies, has formed a complete series of industrial laser equipment supply platform.


With a team of 200 people professional technical engineers, Own more than 200 patents, rich management experience, clear development direction to ensure our rapid growth in the rapid development of the laser industry. We have established branches all over China, Such as Jiangsu, Zhejiang,Shandong,Chongqing. And we have exported to 60 countries and have overseas agents in 10 countries. Our main products is Laser Cleaning Machine / Laser Marking Machine / Laser Welding Machine / Laser Cutting Machine. Products are widely used in electrical appliances, mobile communications, hardware products, tool accessories, precision equipment, jewelry, glasses and watches, integrated circuits, craft gifts, plastic molds, medical equipment and other industries.

We hope to bring you the best quality and service, your recognition is our greatest support. welding machine,other welding equipment, laser welding machine,laser welding machine price,laser welding,other welding,welding robot,portable welding machine,handheld laser welding machine,welding machine price,portable laser welding machine,fiber laser welding machine,aluminium welding machine,welding machine portable,plastic welding machine,mini welding machine,lazer welding machine,fiber welding machine,china laser welding,laser welding gun,stainless steel laser welding machine,laser cold welding machine,or laser welding machine,welding equipment laser welding machine,1000w laser welding machine,automatic welding machine laser,laser welding portable,1kw handheld fiber laser welding machine,fiber cable welding machine,fiber laser cleaning welding machine,handheld fiber laser welding,fiber optic cable welding machine,laser welding machine fiber,soldering machine.

Packing & Delivery
Metal SS 1000w 1500w 2000w Laser Welding Machine HEROLASER 3mm 13

After-sales Services

1. 2 year guarantee for laser source(people damaged are charged)

2. Full technical support / by e-mail, call and video

3. Spare parts supply.

4. Free online training installation and operation

5. 12 hours quick feedback & after-sales services

6. ODM/OEM service

FAQ
Q1:What products does Herolaser produce?
A1:Laser Welding Machine, Laser Cleaning Machine, Laser Cutting Machine, Laser Marking Machine And New Energy

Q1:Can I visit the factory?
A1:Welcome to visit us any time

Q1:Can I make my logo on device
A1:Yes, We also supply ODM/OEM service

Q1:How about your pre-sales service?
A1:① Free pre-sales 7*24 hours rapid response services / cousulting
② Free sample testing / inspection
③ Free design of fixtures as customers / distributor required
④ Strict quality control for our products
⑤ Quick delivery time

Q1:How will you guarantee after-sales services?
A1:We offer two years warranty for laser source, one year for the machine.

Q1:What are the payment methods can you accept?
A1:T/T, LC, CAD, OA, Trade Insurance, Alibabapay, Also accept bank acceptances within 6 months
