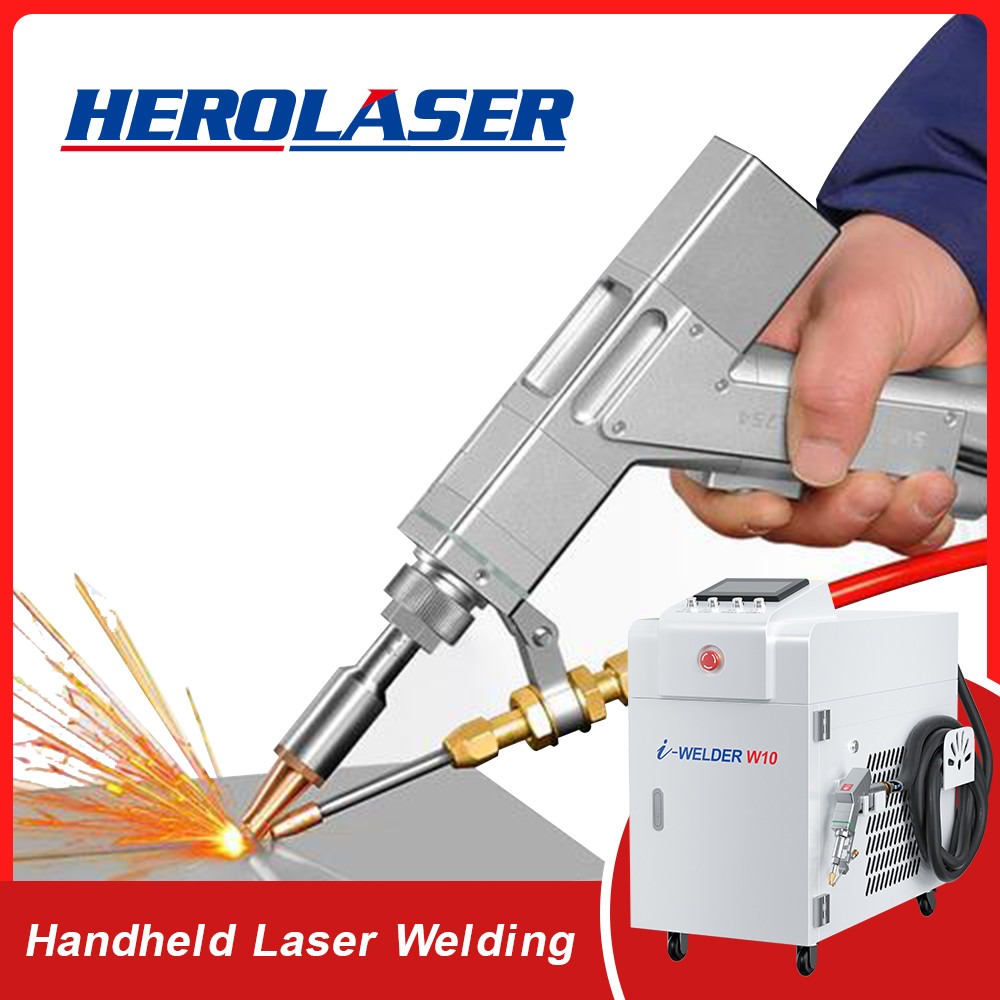

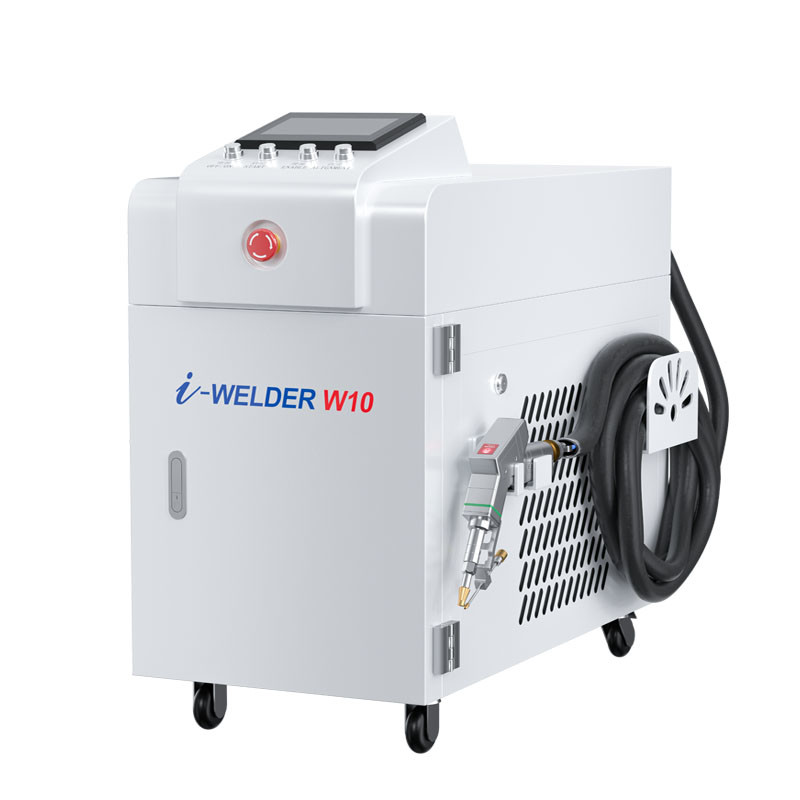

Herolaser Equipment Handheld Laser Welding Machine For Stainless Steel Aluminum
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Welding Thickness | 0-3.3MM | Laser Wavelength | 1064nm,1070nm |
|---|---|---|---|
| Technical | Continuous / PULSE | Welding Depth | 0.5 Mm -2.5 Mm |
| Welding Gap | ≤0.5mm | Welding Speed | 0-120mm/s |
| Application Material | Aluminum, Carbon Steel Copper Iron | Cooling Method | Water / Air |
| Control | Manual / Auto | Dimension | 1100 Mm*600 Mm*1700 Mm |
| Highlight | 120mm/s Handheld Laser Welding Machine,PULSE Handheld Laser Welding Machine,3.3MM Laser Welding Machine |
||
Product Description
Product Description

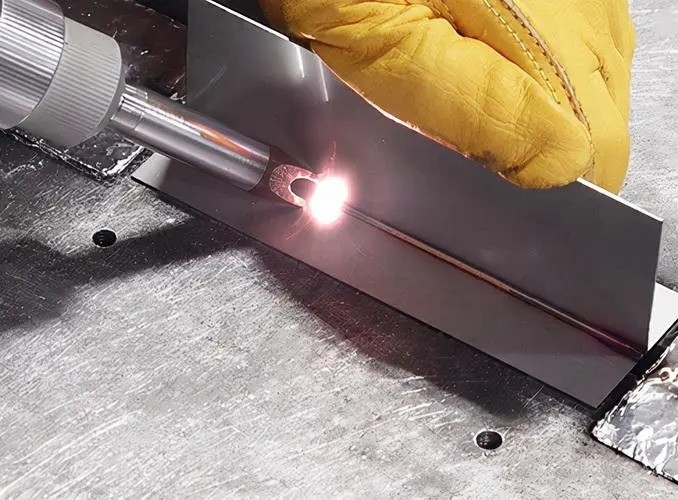

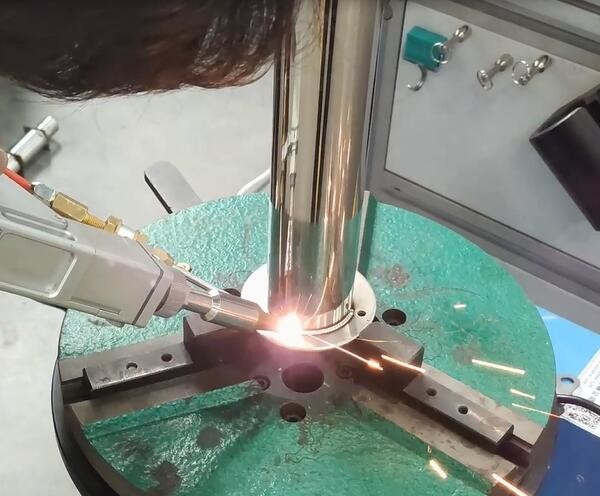

The materials that can be welded by handheld laser welding include carbon steel, die steel, alloy steel, stainless steel, titanium, nickel, tin, copper, aluminum, chromium, niobium, gold, silver and other metals and their alloys, and the welding between the same materials of steel, kovar alloy and other alloys. At present, hand-held laser welding is widely used in kitchen and bathroom industry, household appliances industry, advertising industry, mold industry, stainless steel products industry, stainless steel engineering industry, door and window industry, handicraft industry, household products industry, furniture industry, auto parts industry.
Machine Features for handheld laser welding machine
1. It is easy to operate without professional welding technical experience. It can be started after 2 hours of simple training.
2. The welding speed is super fast. One hand-held laser welder can basically replace the output of 3 to 5 ordinary welders.
3. Welding can basically achieve no consumables and save costs in production.
4. After welding, the weld seam is bright and white, basically without grinding.
5. The laser welding machine has concentrated energy, small thermal reflection range, and the product is not easy to deform.
6. The laser welding machine has concentrated energy and high welding strength.
7. The energy and power of the laser welding machine are controlled by an intelligent operating system, which can meet various welding requirements, such as full penetration, penetration, spot welding, etc.
8. The photoelectric pollution of hand-held laser welding is small, and the volatile matter can be ignored. It is very friendly to the environment and operators, and will not cause additional physical burden.
| Model | ML-500w |
| Average laser power | 500w |
| Max laser power | 500w |
| Max energy of single pulse | 75J |
| Laser wavelength | 1064nm |
| Laser weld depth | ≤ 2mm |
| Pulse width | 0.3-20ms |
| Laser welding frequency | 0.5 -100HZ |
| Spot size range | 0.2-2mm |
| Welding wire | 0.1-0.4mm |
| Power Supply | 380VAC ± 10% / 50-60HZ |
| Power Consumption | 2KW |
| Water pressure protection | 0.025MPa |
| Cooling water temperature | 35 degrees |
| Temperature protection | 45 degrees |
| Cooling water flow | 10L/min |
| Dimensional | 1100mm x 900mm x 1200mm |
| Weight | 320kg |
| Cooling Way | Water cooling |
| Laser Type | Pulse |
Machine Features for handheld laser welding machine
1. welding by optical fiber, One-time forming workpiece, workpiece not deformed
2. No welding scars, smooth and beautiful
3. Welding welding is very firm
4. The welding head can be replaced to meet various welding needs
5. No technical requirements, anyone can weld perfectly
6. Almost no consumables, no grinding is required in processing process, material cost is low
7. The welding speed is fast, 1 worker can be used as 5 workers, labor cost is low
8. No dust and gas pollution, very environmentally friendly
Gun Features for handheld laser welding machine
1. The laser quality is good, the electric welding speed is faster, and the welding is solid and beautiful. We provide customers with electric welding solutions. The safety coefficient is high. The electric welding joint is only effective when touching metal materials. The touch screen switch has the magnetic induction function of human body temperature.
2. The portable water-cooled heat dissipation gas welding gun conforms to the ergonomic design scheme. It is easy to move, and the welding distance is longer. It can be used for electric welding at any position of the product workpiece. The photoelectric conversion is high efficient, low energy consumption, and the actual operation is simple and easy to learn. Ordinary workers can enter the post through short-term drills without professional welding teachers. Long term application can greatly save production costs.
3. The portable laser welding equipment has the advantages of less harm, less deformation, blackening, no trace, large welding depth, sufficient melting, solid and reliable. Portable laser welding equipment can be used for electric welding from a random perspective, and can be used to weld all kinds of disordered products and irregular large and medium-sized product workpieces. Electric welding with random focus shall be completed.
Applied to various metal material, such as stainless steel carbon steel brass copper aluminum aluminum alloy iron
(Herolaser CE ROHS Welding Device for Butt Fusion Automatic Wire Feeding Portable Laser Welding Machine)
Applications
Aviation Parts Domestic Appliance
Elevator Manufacturing Auto Parts
Branches
Certificates
Company Introduction
ABOUT HEROLASER
Shenzhen Herolaser Equipment Co., Ltd was established in 2004, is a national high-tech enterprise in China, engaged in the research and development, production and marketing of laser equipment group of companies, has formed a complete series of industrial laser equipment supply platform.
With a team of 200 people professional technical engineers, Own more than 200 patents, rich management experience, clear development direction to ensure our rapid growth in the rapid development of the laser industry. We have established branches all over China, Such as Jiangsu, Zhejiang,Shandong,Chongqing. And we have exported to 60 countries and have overseas agents in 10 countries. Our main products is Laser Cleaning Machine / Laser Marking Machine / Laser Welding Machine / Laser Cutting Machine. Products are widely used in electrical appliances, mobile communications, hardware products, tool accessories, precision equipment, jewelry, glasses and watches, integrated circuits, craft gifts, plastic molds, medical equipment and other industries.
We hope to bring you the best quality and service, your recognition is our greatest support. welding machine,other welding equipment, laser welding machine,laser welding machine price,laser welding,other welding,welding robot,portable welding machine,handheld laser welding machine,welding machine price,portable laser welding machine,fiber laser welding machine,aluminium welding machine,welding machine portable,plastic welding machine,mini welding machine,lazer welding machine,fiber welding machine,china laser welding,laser welding gun,stainless steel laser welding machine,laser cold welding machine,or laser welding machine,welding equipment laser welding machine,1000w laser welding machine,automatic welding machine laser,laser welding portable,1kw handheld fiber laser welding machine,fiber cable welding machine,fiber laser cleaning welding machine,handheld fiber laser welding,fiber optic cable welding machine,laser welding machine fiber,soldering machine.
Packing & Delivery
After-sales Services
1. 2 year guarantee for laser source(people damaged are charged)
2. Full technical support / by e-mail, call and video
3. Spare parts supply.
4. Free online training installation and operation
5. 12 hours quick feedback & after-sales services
6. ODM/OEM service
FAQ
Q1:What products does Herolaser produce?
A1:Laser Welding Machine, Laser Cleaning Machine, Laser Cutting Machine, Laser Marking Machine And New Energy
Q1:Can I visit the factory?
A1:Welcome to visit us any time
Q1:Can I make my logo on device
A1:Yes, We also supply ODM/OEM service
Q1:How about your pre-sales service?
A1:① Free pre-sales 7*24 hours rapid response services / cousulting
② Free sample testing / inspection
③ Free design of fixtures as customers / distributor required
④ Strict quality control for our products
⑤ Quick delivery time
Q1:How will you guarantee after-sales services?
A1:We offer two years warranty for laser source, one year for the machine.
Q1:What are the payment methods can you accept?
A1:T/T, LC, CAD, OA, Trade Insurance, Alibabapay, Also accept bank acceptances within 6 months
A1:T/T, LC, CAD, OA, Trade Insurance, Alibabapay, Also accept bank acceptances within 6 months
