1500W Portable Handheld Manual Laser Welding Machine Herolaser Equipment

Place of Origin China, Shenzhen
Brand Name Herolaser
Certification ISO9001, FDA
Model Number ML-WF-BP-2000
Minimum Order Quantity 1 Set
Price USD 4999~8600/Set
Packaging Details Wooden Case
Delivery Time 7 work days
Payment Terms L/C, D/A, D/P, T/T
Supply Ability 180 sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Welding Thickness 0-4 Mm Laser Wavelength 1064nm
Technical Continuous Wave/ PULSE Welding Depth 0.5mm -2.5mm
Welding Gap ≤0.5mm Welding Speed 0-120mm/s
Application Material Aluminum, Carbon Steel Copper Iron Cooling Method Water /Air Cooled
Control Manual, Automatic Dimension 1100 Mm*600 Mm*1700 Mm
High Light

1500W Manual Laser Welding Machine

,

1064nm Manual Laser Welding Machine

,

Continuous Wave Manual Laser Welder

Leave a Message
Product Description

Product Description



It belongs to fusion welding, which uses laser beam as energy source to impact on the weldment joint.

The laser beam can be guided by a planar optical element (such as a mirror), and then projected onto the weld with a reflective focusing element or lens.

Laser welding equipment and products

Laser welding equipment and products (17 sheets)

Laser welding belongs to non-contact welding. The operation process does not require pressurization, but inert gas is required to prevent oxidation of the molten pool. Filler metal is occasionally used.

Laser welding and MIG welding can form laser MIG hybrid welding to achieve deep penetration welding, while the heat input is greatly reduced compared with MIG welding.

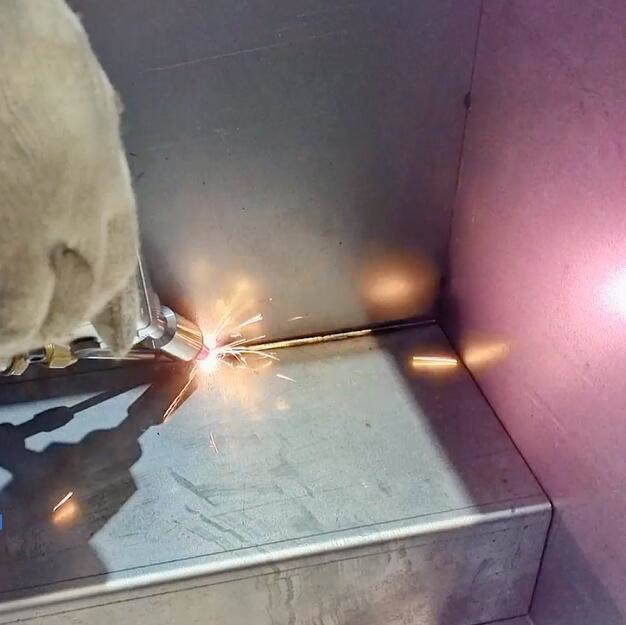

1500W Portable Handheld Manual Laser Welding Machine Herolaser Equipment 0



Usage of hand-held laser welding machine



I. Startup preparation



Before starting the machine, please check whether the power supply and air supply are normal, and whether the welding gun head is correct and free of dust.



II. Start up



The starting sequence of the hand-held laser welding machine is to turn on the emergency stop switch first, then turn on the machine power supply, system power supply, and laser power supply in turn. Please wait 30 seconds for the water tank to fully rotate,



III. Welding preparation



Turn on the air source switch and set the laser parameters to be set on the control panel. After preparation, find one material to be welded for trial welding.



IV. End of welding



When the welding is completed, first turn off the laser power supply, then turn off the system power supply and the machine power supply in turn. The welding gun head should be coiled on the equipment.

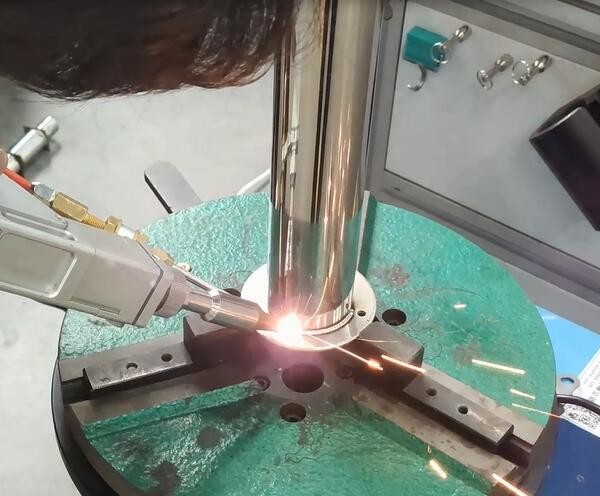

1500W Portable Handheld Manual Laser Welding Machine Herolaser Equipment 1

































Model ML-500w
Average laser power 500w
Max laser power 500w
Max energy of single pulse 75J
Laser wavelength 1064nm
Laser weld depth ≤ 2mm
Pulse width 0.3-20ms
Laser welding frequency 0.5 -100HZ
Spot size range 0.2-2mm
Welding wire 0.1-0.4mm
Power Supply 380VAC ± 10% / 50-60HZ
Power Consumption 2KW
Water pressure protection 0.025MPa
Cooling water temperature 35 degrees
Temperature protection 45 degrees
Cooling water flow 10L/min
Dimensional 1100mm x 900mm x 1200mm
Weight 320kg
Cooling Way Water cooling
Laser Type Pulse

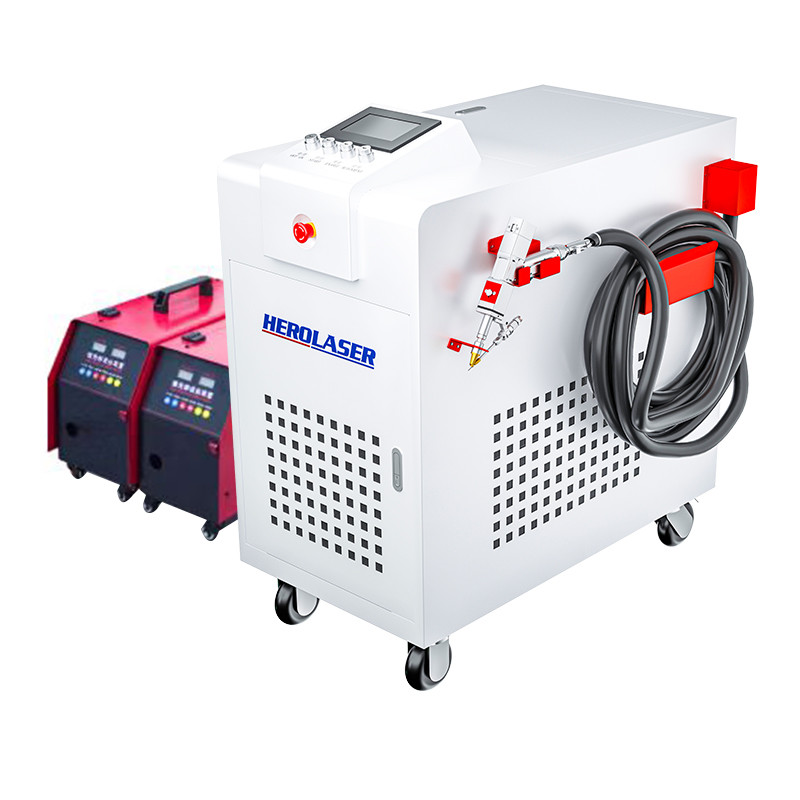

1500W Portable Handheld Manual Laser Welding Machine Herolaser Equipment 2

Machine Features for handheld laser welding machine



1. welding by optical fiber, One-time forming workpiece, workpiece not deformed

2. No welding scars, smooth and beautiful

3. Welding welding is very firm

4. The welding head can be replaced to meet various welding needs

5. No technical requirements, anyone can weld perfectly

6. Almost no consumables, no grinding is required in processing process, material cost is low

7. The welding speed is fast, 1 worker can be used as 5 workers, labor cost is low

8. No dust and gas pollution, very environmentally friendly

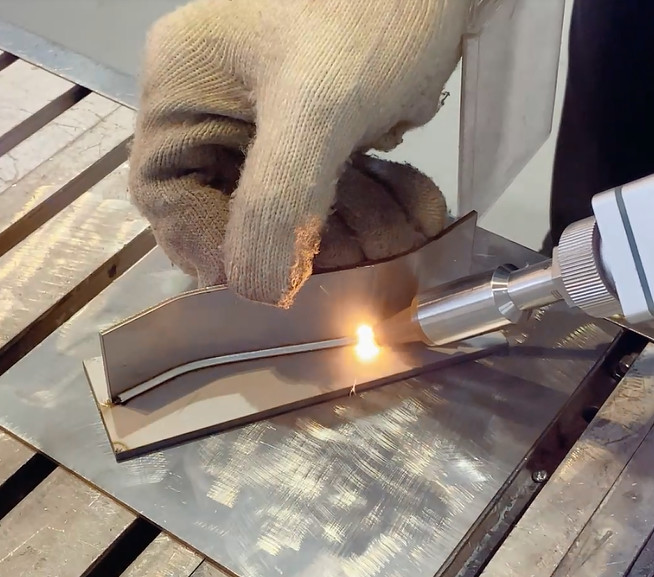

1500W Portable Handheld Manual Laser Welding Machine Herolaser Equipment 3







Gun Features for handheld laser welding machine



1. The laser quality is good, the electric welding speed is faster, and the welding is solid and beautiful. We provide customers with electric welding solutions. The safety coefficient is high. The electric welding joint is only effective when touching metal materials. The touch screen switch has the magnetic induction function of human body temperature.



2. The portable water-cooled heat dissipation gas welding gun conforms to the ergonomic design scheme. It is easy to move, and the welding distance is longer. It can be used for electric welding at any position of the product workpiece. The photoelectric conversion is high efficient, low energy consumption, and the actual operation is simple and easy to learn. Ordinary workers can enter the post through short-term drills without professional welding teachers. Long term application can greatly save production costs.



3. The portable laser welding equipment has the advantages of less harm, less deformation, blackening, no trace, large welding depth, sufficient melting, solid and reliable. Portable laser welding equipment can be used for electric welding from a random perspective, and can be used to weld all kinds of disordered products and irregular large and medium-sized product workpieces. Electric welding with random focus shall be completed.

1500W Portable Handheld Manual Laser Welding Machine Herolaser Equipment 4

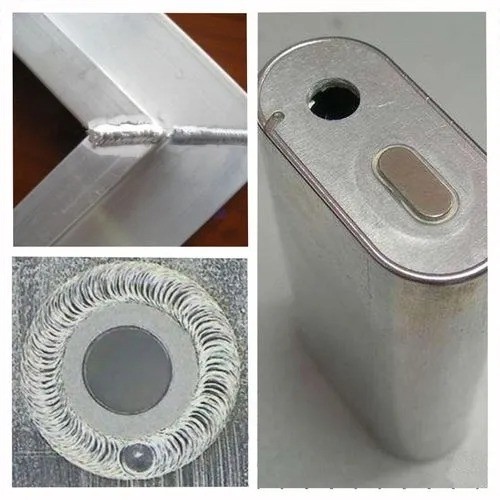

Applied to various metal material, such as stainless steel carbon steel brass copper aluminum aluminum alloy iron



(Herolaser CE ROHS Welding Device for Butt Fusion Automatic Wire Feeding Portable Laser Welding Machine)



1500W Portable Handheld Manual Laser Welding Machine Herolaser Equipment 5

1500W Portable Handheld Manual Laser Welding Machine Herolaser Equipment 6

1500W Portable Handheld Manual Laser Welding Machine Herolaser Equipment 7

Applications

1500W Portable Handheld Manual Laser Welding Machine Herolaser Equipment 81500W Portable Handheld Manual Laser Welding Machine Herolaser Equipment 9

                                  Aviation Parts Domestic Appliance

1500W Portable Handheld Manual Laser Welding Machine Herolaser Equipment 101500W Portable Handheld Manual Laser Welding Machine Herolaser Equipment 11

                           Elevator Manufacturing Auto Parts



Branches

1500W Portable Handheld Manual Laser Welding Machine Herolaser Equipment 12

Certificates

1500W Portable Handheld Manual Laser Welding Machine Herolaser Equipment 13

Company Introduction

1500W Portable Handheld Manual Laser Welding Machine Herolaser Equipment 14

ABOUT HEROLASER

Shenzhen Herolaser Equipment Co., Ltd was established in 2004, is a national high-tech enterprise in China, engaged in the research and development, production and marketing of laser equipment group of companies, has formed a complete series of industrial laser equipment supply platform.


With a team of 200 people professional technical engineers, Own more than 200 patents, rich management experience, clear development direction to ensure our rapid growth in the rapid development of the laser industry. We have established branches all over China, Such as Jiangsu, Zhejiang,Shandong,Chongqing. And we have exported to 60 countries and have overseas agents in 10 countries. Our main products is Laser Cleaning Machine / Laser Marking Machine / Laser Welding Machine / Laser Cutting Machine. Products are widely used in electrical appliances, mobile communications, hardware products, tool accessories, precision equipment, jewelry, glasses and watches, integrated circuits, craft gifts, plastic molds, medical equipment and other industries.

We hope to bring you the best quality and service, your recognition is our greatest support. welding machine,other welding equipment, laser welding machine,laser welding machine price,laser welding,other welding,welding robot,portable welding machine,handheld laser welding machine,welding machine price,portable laser welding machine,fiber laser welding machine,aluminium welding machine,welding machine portable,plastic welding machine,mini welding machine,lazer welding machine,fiber welding machine,china laser welding,laser welding gun,stainless steel laser welding machine,laser cold welding machine,or laser welding machine,welding equipment laser welding machine,1000w laser welding machine,automatic welding machine laser,laser welding portable,1kw handheld fiber laser welding machine,fiber cable welding machine,fiber laser cleaning welding machine,handheld fiber laser welding,fiber optic cable welding machine,laser welding machine fiber,soldering machine.

Packing & Delivery

1500W Portable Handheld Manual Laser Welding Machine Herolaser Equipment 15



After-sales Services



1. 2 year guarantee for laser source(people damaged are charged)


2. Full technical support / by e-mail, call and video


3. Spare parts supply.


4. Free online training installation and operation


5. 12 hours quick feedback & after-sales services


6. ODM/OEM service



FAQ

Q1:What products does Herolaser produce?

A1:Laser Welding Machine, Laser Cleaning Machine, Laser Cutting Machine, Laser Marking Machine And New Energy



Q1:Can I visit the factory?

A1:Welcome to visit us any time



Q1:Can I make my logo on device

A1:Yes, We also supply ODM/OEM service



Q1:How about your pre-sales service?

A1:① Free pre-sales 7*24 hours rapid response services / cousulting

② Free sample testing / inspection

③ Free design of fixtures as customers / distributor required

④ Strict quality control for our products

⑤ Quick delivery time



Q1:How will you guarantee after-sales services?

A1:We offer two years warranty for laser source, one year for the machine.



Q1:What are the payment methods can you accept?
A1:T/T, LC, CAD, OA, Trade Insurance, Alibabapay, Also accept bank acceptances within 6 months
