Herolaser 4KW Mould Repairing Laser Beam Welder For Metal Parts Repair

Place of Origin China
Brand Name Herolaser
Certification CE, FDA
Model Number ML-WY-M02-200W
Minimum Order Quantity 1 SET
Price Negotiable
Packaging Details Wooden case package: 1680*500*1500mm/560kg
Delivery Time 10-15 Days
Payment Terms T/T, Western Union
Supply Ability 200 sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Max. Laser Power 200W Laser Wavelength 1064nm
Pulse Width 0.1-20ms Laser Frequency 0-50Hz
Laser Sopt Range 0.2-1.5mm Cooling Mode Water Cooled
Total Power 4KW Power Supply 220V
High Light

4KW Mould Repairing laser beam welder


Herolaser Equipment laser beam welder


4KW portable laser welding machine

Leave a Message
Product Description

Mould Repairing Laser Welding Machine Tyre Mould Laser Mold Repair


Product introduction:


Laser die repairing welding machine is to weld the special welding wire to the damaged parts of the die through the instantaneous high heat energy generated by the laser, and firmly weld with the original base material. After welding, it is processed into a smooth surface by EDM or grinding, so as to repair the die. Widely used in die repair and metal parts repair, can weld a variety of die materials.


Features and characteristics:


The laser mold repair welding machine can quickly and accurately repair the pores, slag holes and shrinkage holes formed in the casting process.

Suitable for laser repair materials are ductile cast iron, gray cast iron, stainless steel, etc.

  • Small thermal deformation, small heat affected zone (suitable for processing high melting point, high hardness, unique materials);
  • It can be used for local heat treatment of ordinary parts, complex parts or small parts. It can also be done in a vacuum;
  • No preheating treatment is required, and the workpiece is not annealed after welding;
  • No sagging deformation, no pores, no trachoma;
  • After use, it can be used to repair cracks, chipping, edges and corners, sand holes, mold wear;
  • The same hardness as the substrate can be achieved after repair with the same material as the substrate;
  • The toughness of the cold mold and the cutting edge of the tool can also be welded, eliminating the tedious preheating and heat preservation process of ordinary argon welding.


Technical details:


Model ML-WY-M02-200W ML-WY-M02-400W
Average laser power 200W 400W
Max energy of single pulse 80J 120J
Laser wavelength 1064nm 1064nm
Pulse width 0.5-20ms 0.5-20ms
Laser welding frequency 0.5 -100HZ 0.5 -100HZ
Spot size range 0.2-2mm 0.2-2mm
Power Supply 220VAC ± 10% / 50HZ/ 30A 380VAC ± 10% / 50HZ/ 50A
Power Consumption ≤ 6KW ≤ 12 KW
Cooling way Water cooling Water cooling
Cooling water flow 10L/min 10L/min
Max. height of mould 165cm 165cm
Travel of the worktable

170mm X 130mm X200mm

(L x W x H)


(L x W x H)

Load-bearing of worktable less than 150KG less than 150KG
Focal distance 90mm/120mm optional 90mm/120mm optional
Diameter of welding wire 0.1mm-0.5mm 0.1mm-0.8mm
Weight ≤ 400kg ≤ 400kg
Hazard Class Class 4 Class 4

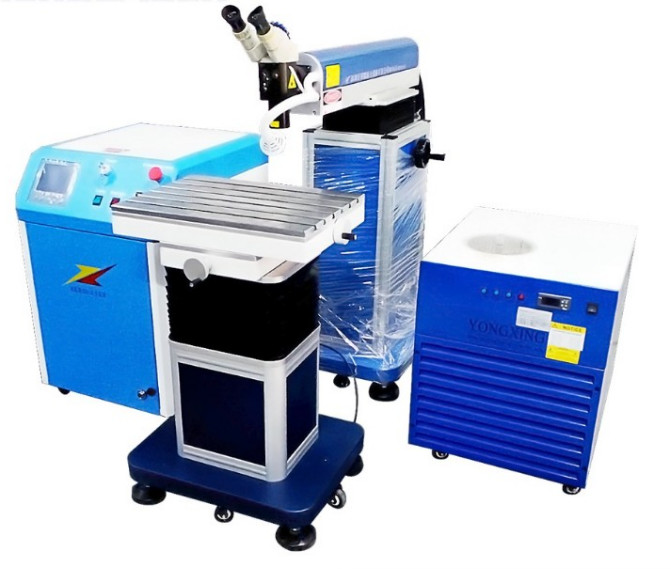

Machine's main parts:


Herolaser 4KW Mould Repairing Laser Beam Welder For Metal Parts Repair 0


Herolaser 4KW Mould Repairing Laser Beam Welder For Metal Parts Repair 1




  • Can be used for titanium, nickel, tin, zinc, copper, aluminum, chromium, niobium, gold, silver and other metals and their alloys, as well as steel
  • The same material of alloy welding, such as cutting alloy can also be applied to copper - nickel, nickel - titanium, copper - titanium, brass - copper
  • Low carbon steel - copper and other heterogeneous metal welding

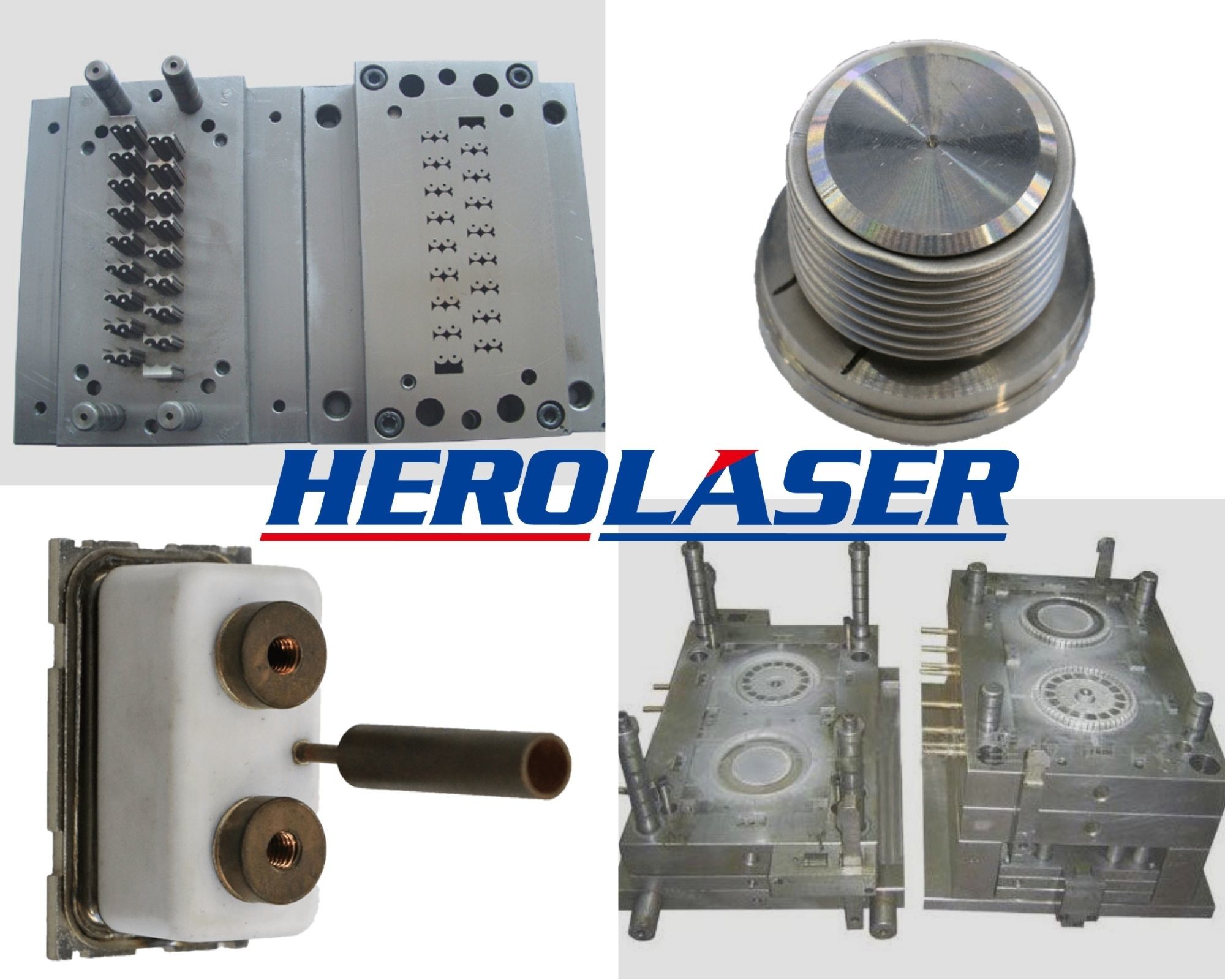

Samples for reference:


Herolaser 4KW Mould Repairing Laser Beam Welder For Metal Parts Repair 2


1. How is the payment?
  • 30% deposit before production and the balance 70% before shipment
2. How is the delivery and shipment?
  • Ship in 7 days after 100% payment;
  • Plywood box packaging
3. How will you guarantee aftersales services?
  • We offer two warranty for laser source, one year for whole machine and lifetime maintenance services.
  • Engineers available to service machinery overseas
  • Free technical training in our factory
  • Free sample can be sent to you
  • Professional technical team 24 hours online
4. How about your presales service?
  • Speeding offer within 8 hours quick response and free consulting.
  • Free sample welding or testing is available
  • Progressing solution design to all clients, including distributors and end users.
