Incredibly Durable FDA 2mm Spot Mould Laser Welding Machine With 2 Lamps

  • Incredibly Durable FDA 2mm Spot Mould Laser Welding Machine With 2 Lamps
  • Incredibly Durable FDA 2mm Spot Mould Laser Welding Machine With 2 Lamps
  • Incredibly Durable FDA 2mm Spot Mould Laser Welding Machine With 2 Lamps
Place of Origin China
Brand Name Purple Horn
Certification CE, FDA
Model Number ML-WY-M02-400W
Minimum Order Quantity 1 SET
Price Negotiable
Packaging Details Wooden case package: 1680*500*1500mm/560kg
Delivery Time 10-15 days
Payment Terms T/T, Western Union
Supply Ability 200 sets/month
Product Details
Power Supply 380VAC ± 10% / 50-60HZ Output Power 400W
Dimension 1000mm X 600mm X 1500mm Net Weight 560kg
Laser Source YAG Laser Welding Wire 0.1-0.8mm
Laser Type Pulse Spot Size Range 0.2-2mm
Highlight

400W Mould Laser Welding Machine

,

2mm Spot Mould Laser Welding Machine

,

FDA 2mm laser spot welder
Leave a Message
Product Description

Incredibly Durable Mould Laser Welding Machine Mold Repair Laser Welders


Product introduction:


Welding on large size precision injection, die-casting, mould repairing, patch welding on sand hole or air hole in beryllium copper mould insert, aluminum casting, copper casting, welding or patch welding processing for large size products.

Features:



  • It adopted Ceramic condenser cavity, high reflectivity, strong power, and extremely long service life.
  • It had high power laser device with 2 lamps, which meets the welding processing needs of the copper, aluminum and those moulds and products requires lot of welding works.
  • The heavy duty bearing for the worktable is provided the ability to load with heavy jobs, and meanwhile it remain the advantages of light and flexible at the same time.
  • It is equipped with 3P high power integration design cooling water system, which ensured the stability of high power welding.

Product parameters:

Model ML-WY-M02
Average laser power 400W
Max energy of single pulse    75J
Laser wavelength 1064nm
Pulse width 0-20ms
Laser welding frequency 0.5 -100HZ
Spot size range 0.2-2mm
Welding wire 0.1-0.8mm
Power Supply 380VAC ± 10% / 50-60HZ
Power Consumption 12 KW
Water pressure protection ≤ 0.025MPa
Cooling water temperature ≤ 35 degrees
Temperature protection 45 degrees
Cooling water flow 10L/min
Dimensional 1000mm x 600mm x 1500mm
Weight 560kg
Cooling Way Water cooling
Laser Type Pulse
Hazard Class 4 Class

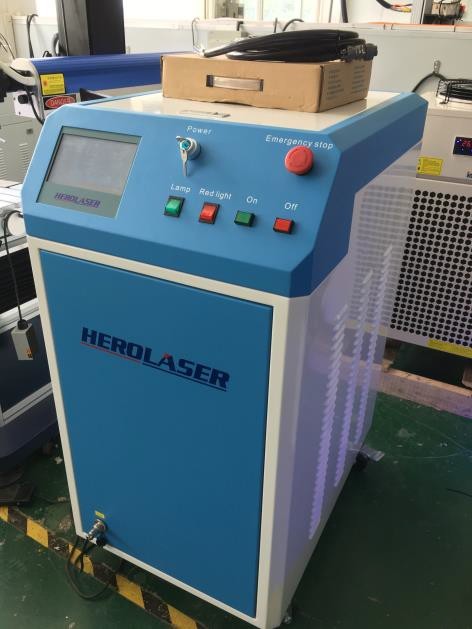

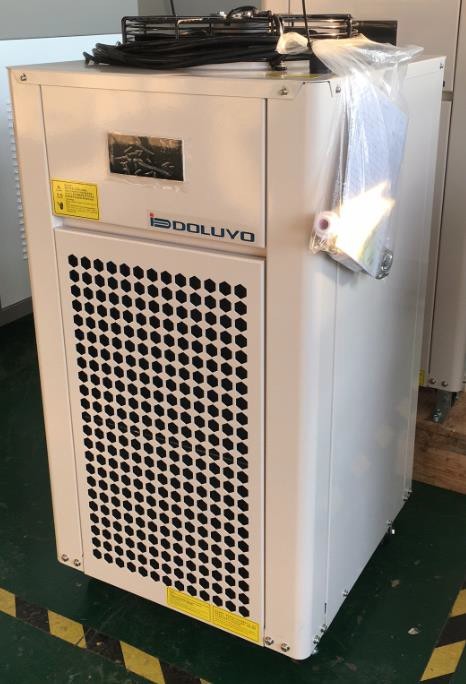

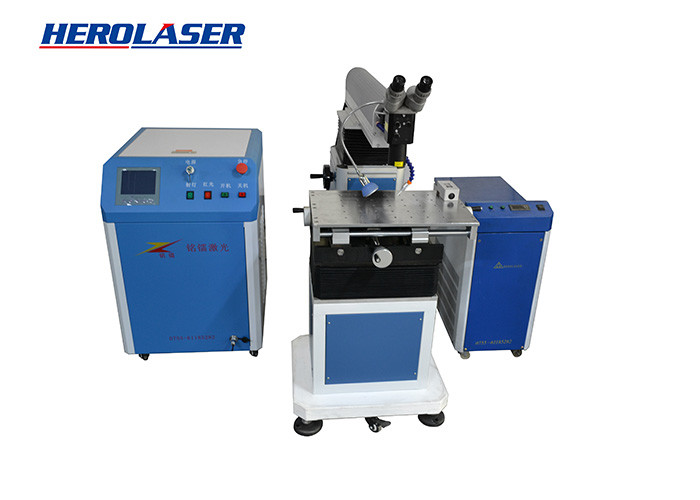

Main parts of machine:



Incredibly Durable FDA 2mm Spot Mould Laser Welding Machine With 2 Lamps 0



Incredibly Durable FDA 2mm Spot Mould Laser Welding Machine With 2 Lamps 1



Incredibly Durable FDA 2mm Spot Mould Laser Welding Machine With 2 Lamps 2


Samples for reference:

Incredibly Durable FDA 2mm Spot Mould Laser Welding Machine With 2 Lamps 3

FAQ

1. How is the payment?
  • 30% deposit before production and the balance 70% before shipment
2. How is the delivery and shipment?
  • Ship in 7 days after 100% payment;
  • Plywood box packaging
3. How will you guarantee aftersales services?
  • We offer two warranty for laser source, one year for whole machine and lifetime maintenance services.
  • Engineers available to service machinery overseas
  • Free technical training in our factory
  • Free sample can be sent to you
  • Professional technical team 24 hours online
4. How about your presales service?
  • Speeding offer within 8 hours quick response and free consulting.
  • Free sample welding or testing is available
  • Progressing solution design to all clients, including distributors and end users.



Incredibly Durable FDA 2mm Spot Mould Laser Welding Machine With 2 Lamps 4
