Quickly High Accuracy YAG Mould Laser Welding Machine , YAG Laser Welding Machine

Place of Origin China
Brand Name Herolaser
Certification CE, FDA
Model Number ML-WY-M02
Minimum Order Quantity 1 SET
Price Negotiable
Packaging Details Wooden case package: 1680*500*1500mm/560kg
Delivery Time 20 days
Payment Terms T/T, Western Union
Supply Ability 200 sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application Laser Welding For Mold Repair Laser Wevelength 1064nm
Electricity Demand 220V /50Hz/60Hz Output Power 400W
Dimension 1570*480*1400mm Net Weight 530kg
Laser Source YAG Laser Xenon Lamp Made In China
High Light

YAG Mould Laser Welding Machine

,

Crane Type Mould Laser Welding Machine

,

YAG laser welding machine

Leave a Message
Product Description

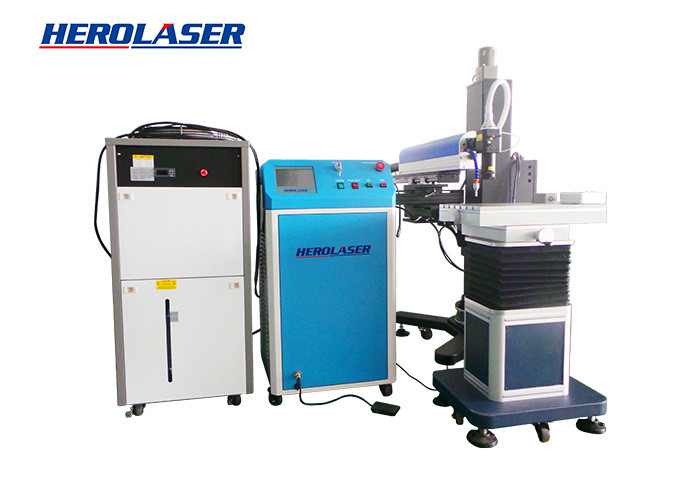

400 Watt Crane Type Mould Laser Welding Machine for Mold Repairing



Introduction of machine:

Laser is an abbreviation for "Optical Amplification of Stimulated Radiation". This technique produces a beam of intensely focused heat rays that can be added to similar or different alloys. The laser welding process can be completed quickly. (Usually in children), and will not cause scars or blemishes on the welding surface. In fact, through the indirect method of adjusting the laser, a laser welding machine can be used to achieve a surface treatment close to polishing. Because there are very few contaminants generated at the welding point, few users can easily weld the most complex and complicated processing methods of 0.1 mm, polished surfaces and can form components.

Nowadays, the tool and mold workshops that use laser welding machines tend to be able to produce quality products based on their wide range of applications and extended periods of use of materials, while eliminating excessive heat effects.

Advantages and features:

  1. High accuracy , the welding spot diameter is only 0.2mm-0.5mm
  2. Little affect area , no distortion of the processing parts.
  3. No effect for etch after welding , low oxidation rate ,the color of the processing parts is intact .
  4. No stomata or sand hole disappeared after welding.
  5. Can process at the welding point , especially applicable to repairing mound requiring polishing.
  6. The processing parts can reach 50-60 rockwell hardness.

Product parameters:

Model ML-WY-M02
Average laser power 400W

Max energy of single pulse

15J

Laser wavelength 1064nm
Pulse width 0-20ms
Laser welding frequency 0.5 -100HZ
Spot size range 0.2-2mm
Welding wire 0.1-0.8mm
Power Supply 380VAC ± 10% / 50-60HZ
Power Consumption 12 KW
Water pressure protection ≤ 0.025MPa
Cooling water temperature ≤ 35 degrees
Temperature protection 45 degrees
Cooling water flow 10L/min
Dimensional 1000mm x 600mm x 1500mm
Weight 560kg
Cooling Way Water cooling
Laser Type Pulse
Hazard Class 4 Class




Applied area and materials:

Repair cracks, collapsed horn, touched edge and damaged sealing side, welding on horniness material (~HRC60). This machine’s arm could be move up and down, front and backwards, left and right side.

Samples for reference:

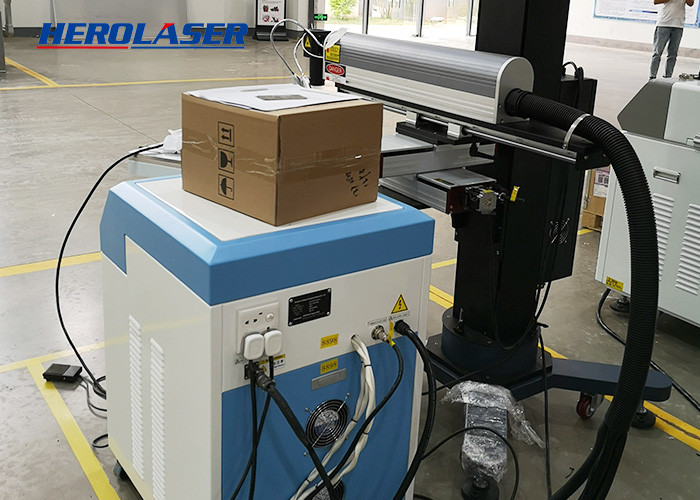

Quickly High Accuracy YAG Mould Laser Welding Machine , YAG Laser Welding Machine 0

FAQ

1. How is the payment?
  • 30% deposit before production and the balance 70% before shipment
2. How is the delivery and shipment?
  • Ship in 7 days after 100% payment;
  • Plywood box packaging
3. How will you guarantee aftersales services?
  • We offer two warranty for laser source, one year for whole machine and lifetime maintenance services.
  • Engineers available to service machinery overseas
  • Free technical training in our factory
  • Free sample can be sent to you
  • Professional technical team 24 hours online
4. How about your presales service?
  • Speeding offer within 8 hours quick response and free consulting.
  • Free sample welding or testing is available
  • Progressing solution design to all clients, including distributors and end users.

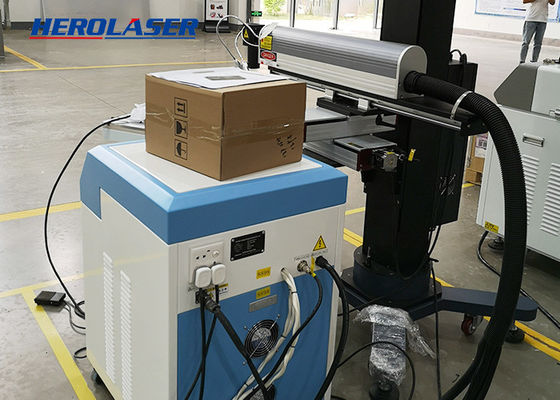

Quickly High Accuracy YAG Mould Laser Welding Machine , YAG Laser Welding Machine 1
